Airbag Front Seat Position Sensor Replacement
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

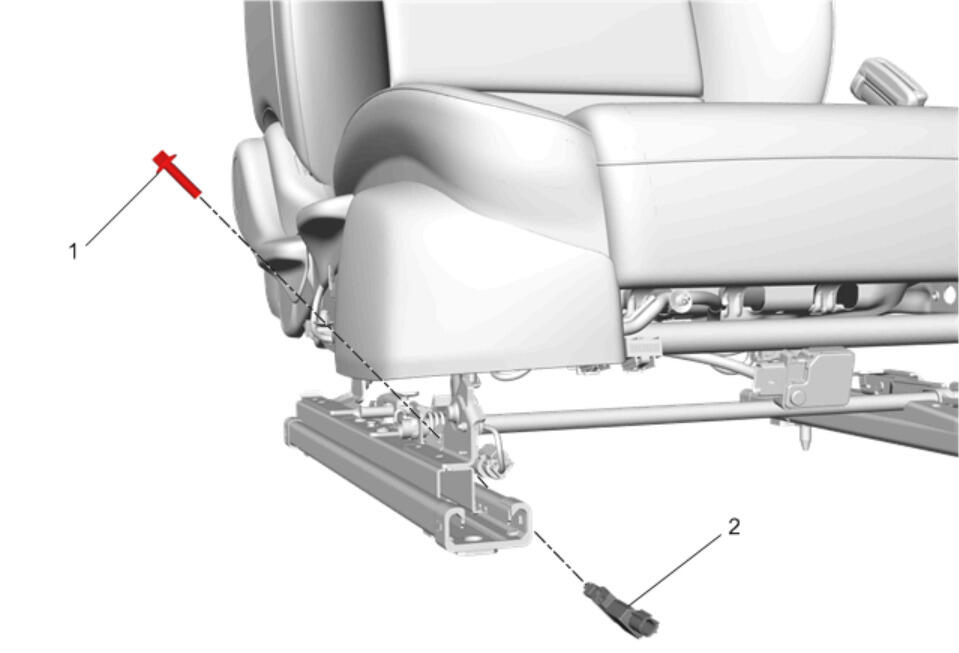

| Callout | Component Name |
|---|---|
|
WARNING:
Preliminary Procedure SIR Disabling and Enabling Refer to SIR Warning . |
|
| 1 | Airbag Front Seat Position Sensor Fastener
CAUTION:
Refer to Fastener Caution . Tighten 7.5 N.m (66 lb in) |
| 2 | Airbag Front Seat Position Sensor Procedure Disconnect the electrical connector. |
