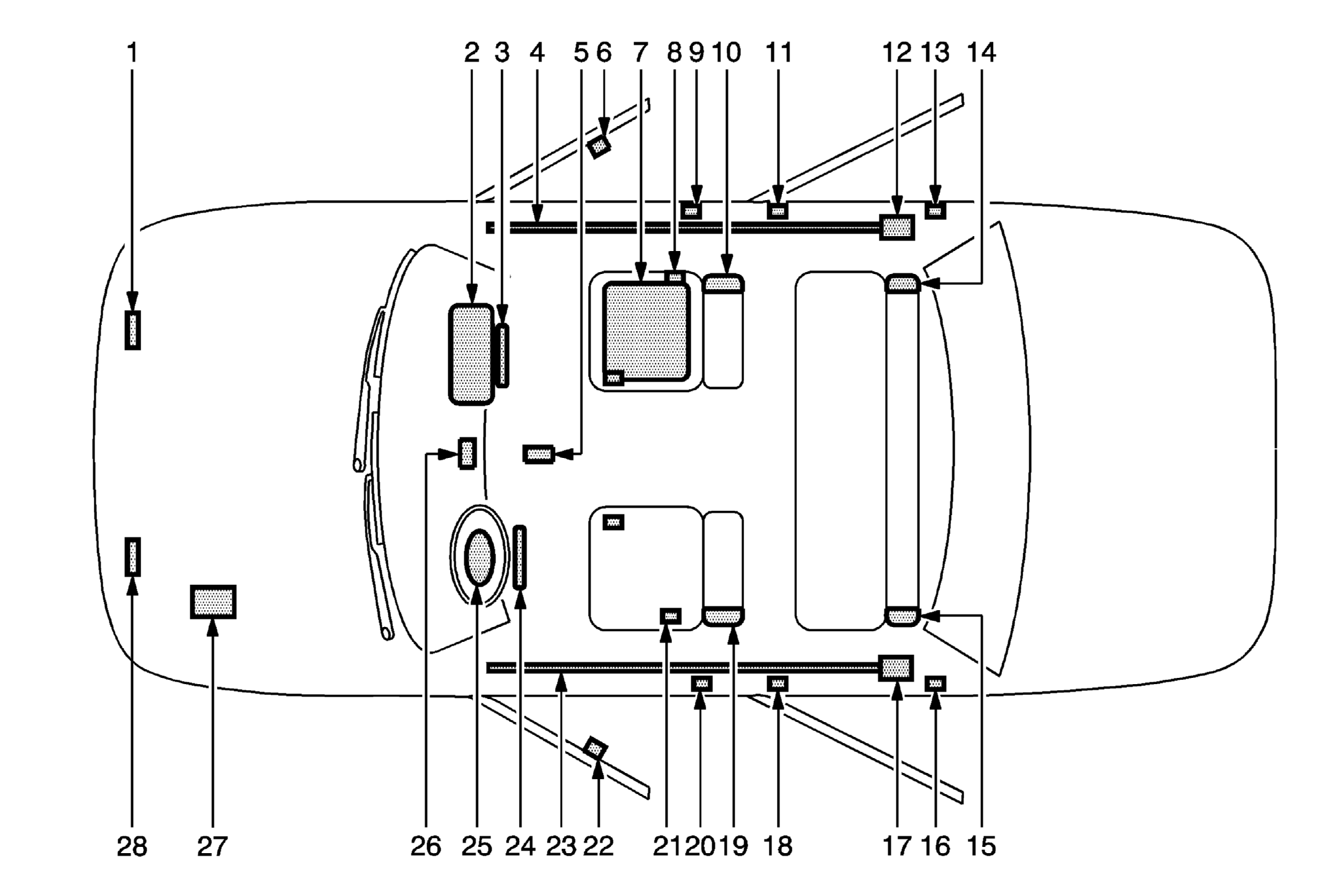

SIR Identification Views: Identification
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | B59R Front Impact Sensor - Right - Located at the front of the engine compartment, on the right side of the radiator support |
| 2 | F101 Passenger Instrument Panel Air Bag - Located at the top right, under the instrument panel |
| 3 | F114P Knee Air Bag - Passenger - Located below the glove box in the instrument panel |
| 4 | F105R Roof Rail Air Bag - Right - Located in the passenger compartment, along the right roof rail |
| 5 | K36 Inflatable Restraint Sensing and Diagnostic Module - Located underneath the center console |
| 6 | B63RF Side Impact Sensor - Right Front - Located inside the right front door |
| 7 | B60 Passenger Presence Sensor - Located on the passenger front seat underneath the seat bottom trim |
| 8 | F109P Seat Belt Buckle Pretensioner - Passenger - Located in the passenger compartment, passenger side forward of middle, mounted to outboard side of passenger seat cushion frame, at rear |
| 9 | F112P Seat Belt Retractor Pretensioner - Passenger - Located in the passenger compartment, right side middle, mounted to base of B-pillar |
| 10 | F106P Seat Side Air Bag - Passenger - Located on the seat back of passenger seat |
| 11 | B63RM Side Impact Sensor - Right Middle - Located in the passenger compartment, right side under the trim, mounted to base of B-pillar |
| 12 | F105R Roof Rail Air Bag - Right - Located in the passenger compartment, along the right roof rail |
| 13 | B63RR Side Impact Sensor - Right Rear - Located in the passenger compartment, right side under the trim, mounted to base of C-pillar |
| 14 | F106RR Seat Side Air Bag - Right Rear - Located on the seat back bolster of the rear passenger seat |
| 15 | F106LR Seat Side Air Bag - Left Rear - Located on the seat back bolster of the rear passenger seat |
| 16 | B63LR Side Impact Sensor - Left Rear - Located in the passenger compartment, right side under the trim, mounted to base of C-pillar |
| 17 | F105L Roof Rail Air Bag - Left - Located in the passenger compartment, along the left roof rail |
| 18 | B63LM Side Impact Sensor - Left Middle - Located in the passenger compartment, left side under the trim, mounted to base of B-pillar |
| 19 | F106D Seat Side Air Bag - Driver - Located on the seat back of driver seat |
| 20 | F112D Seat Belt Retractor Pretensioner - Driver - Located in the driver compartment, left side middle, mounted to base of B-pillar |
| 21 | F109D Seat Belt Buckle Pretensioner - Driver - Located in the passenger compartment, driver side forward of middle, mounted to outboard side of driver seat cushion frame, at rear |
| 22 | B63LF Side Impact Sensor - Left Front - Located inside the left front door |
| 23 | F105L Roof Rail Air Bag - Left - Located in the passenger compartment, along the left roof rail |
| 24 | F114D Knee Air Bag - Driver - Located below the steering wheel in the instrument panel |
| 25 | F107 Steering Wheel Air Bag - Located on the steering wheel |
| 26 | P14 Passenger Air Bag Disable Indicator - Located in the passenger compartment, in the center of the instrument panel |
| 27 | C1 Battery - Located In the engine compartment, on the left side, near the underhood fuse block |
| 28 | B59L Front Impact Sensor - Left - Located at the front of the engine compartment, on the left side of the radiator support |
