Rear Camber Adjustment

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

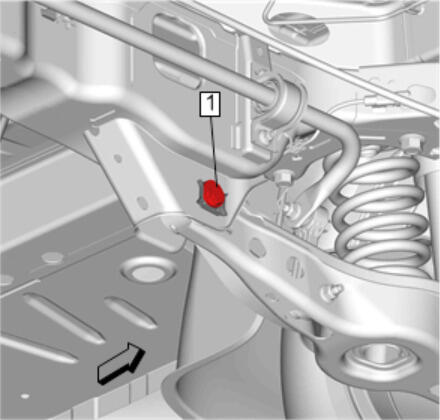

Rear Suspension Lower Control Arm Inner Nut (1) - Remove - Lower Control Arm Replacement
Courtesy of GENERAL MOTORS COMPANY

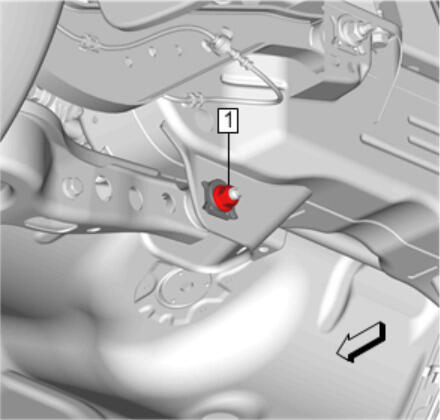

Rear Suspension Lower Control Arm Adjust Bolt (1) - Remove - Lower Control Arm Replacement
Rear Suspension Lower Control Arm Adjust Bolt - Install - Lower Control Arm Replacement
Rear Suspension Lower Control Arm Inner Nut - Install. - Lower Control Arm Replacement Do not fully tighten at this time.
Courtesy of GENERAL MOTORS COMPANY

Rotate the rear suspension lower control arm adjust bolt (1) until the correct camber measurement is achieved. Wheel Alignment Measurement

NOTE:
Tighten the nut and bolt enough to maintain the adjustment. Verify the camber reading prior to tightening the bolt to its final torque.

CAUTION:

This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.

CAUTION:

Refer to Fastener Caution .

Courtesy of GENERAL MOTORS COMPANY

Hold the rear suspension control arm adjust bolt and tighten the rear suspension upper inner nut (1). Lower Control Arm Replacement
Check the alignment specification and readjust if necessary. Wheel Alignment Specifications
