Removal Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY
CAUTION:
With wheels of the vehicle facing straight ahead, secure the steering wheel utilizing steering column anti-rotation pin, steering column lock, or a strap to prevent rotation. Locking of the steering column will prevent damage and a possible malfunction of the SIR system. The steering wheel must be secured in position before disconnecting the following components:
- The steering column
- The intermediate shaft (s)
- The steering gear
After disconnecting these components, do not rotate the steering wheel or move the front tires and wheels. Failure to follow this procedure may cause the SIR coil assembly to become un-centered and cause possible damage to the SIR coil. If you think the SIR coil has become un-centered, refer to your specific SIR coil's centering procedure to re-center SIR Coil.
Install the CH-42640 Steering Column Anti-Rotation Pin (1) in the steering column lower access hole.
Instrument Panel Knee Bolster - Remove - Instrument Panel Knee Bolster Replacement
Courtesy of GENERAL MOTORS COMPANY

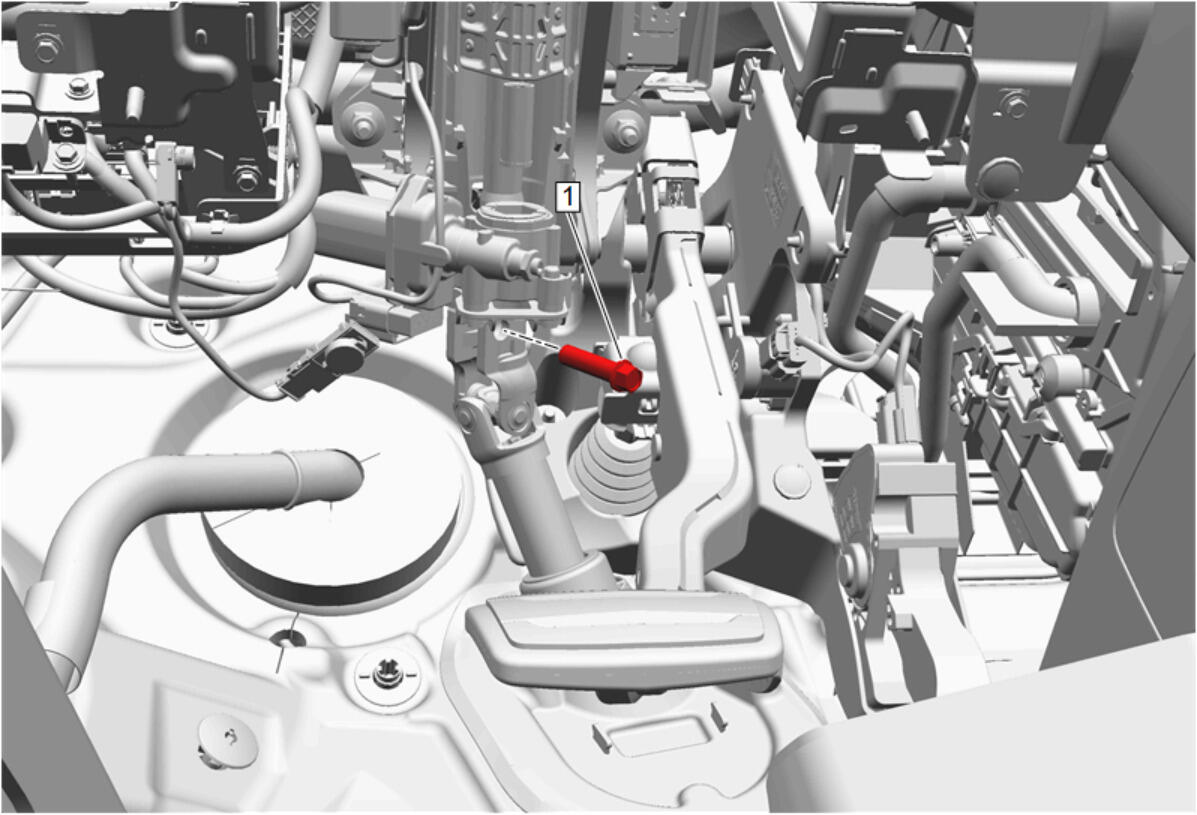

Upper Intermediate Steering Shaft Upper Bolt (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

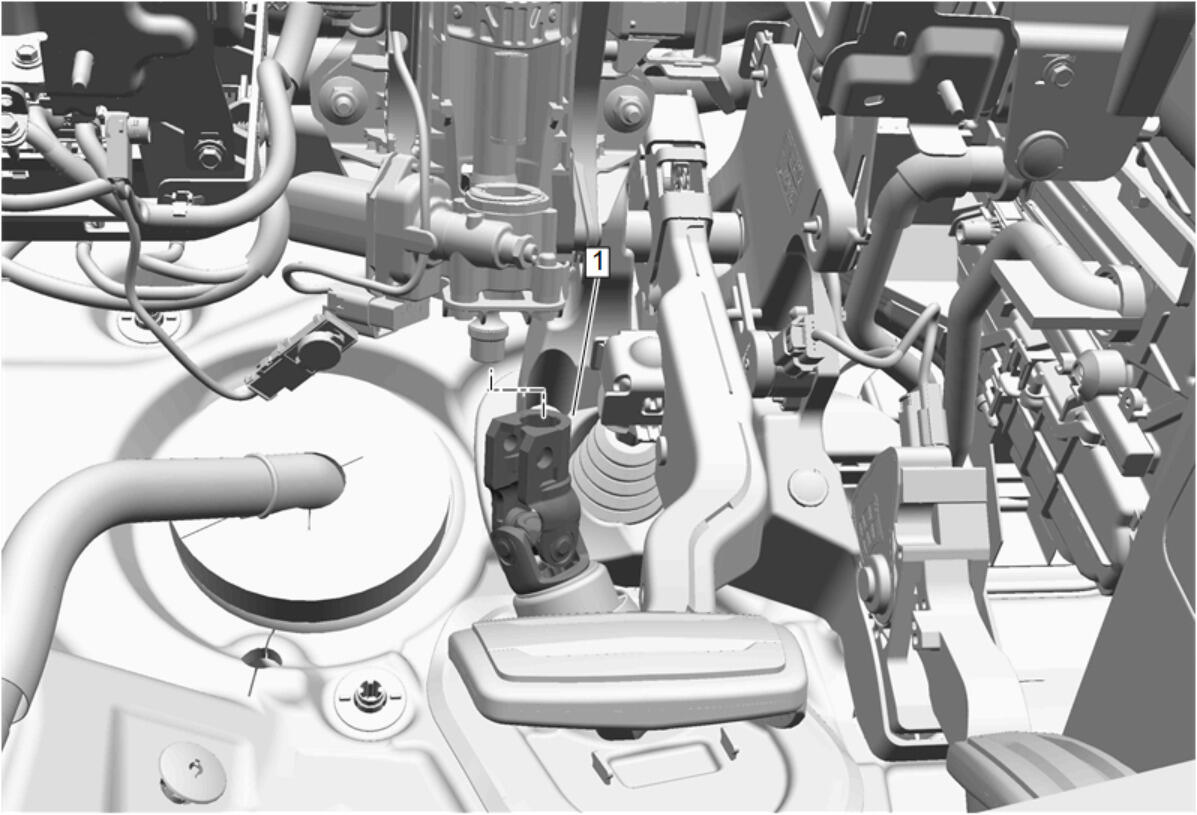

Upper Intermediate Steering Shaft (1) - Separate
Courtesy of GENERAL MOTORS COMPANY

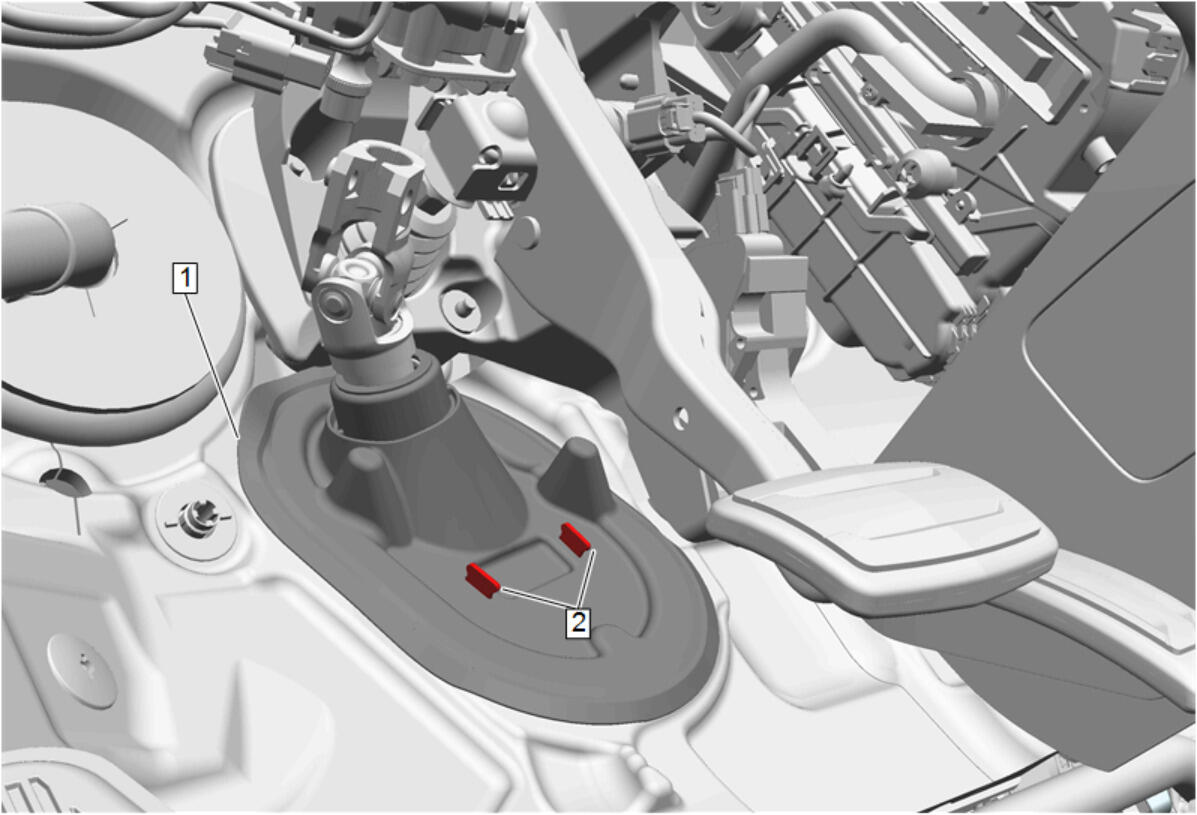

Release the upper intermediate steering shaft boot (1) from the retaining tabs (2) on the intermediate steering shaft inner boot.
Courtesy of GENERAL MOTORS COMPANY

Slide the upper intermediate steering shaft boot (1) upwards to expose the intermediate steering shaft upper bolt.
Intermediate Steering Shaft Upper Bolt (2) - Remove
Upper Intermediate Steering Shaft (3) - Separate
Remove the upper intermediate steering shaft and the upper intermediate steering shaft boot as an assembly.
