Steering Wheel Spoke Cover Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

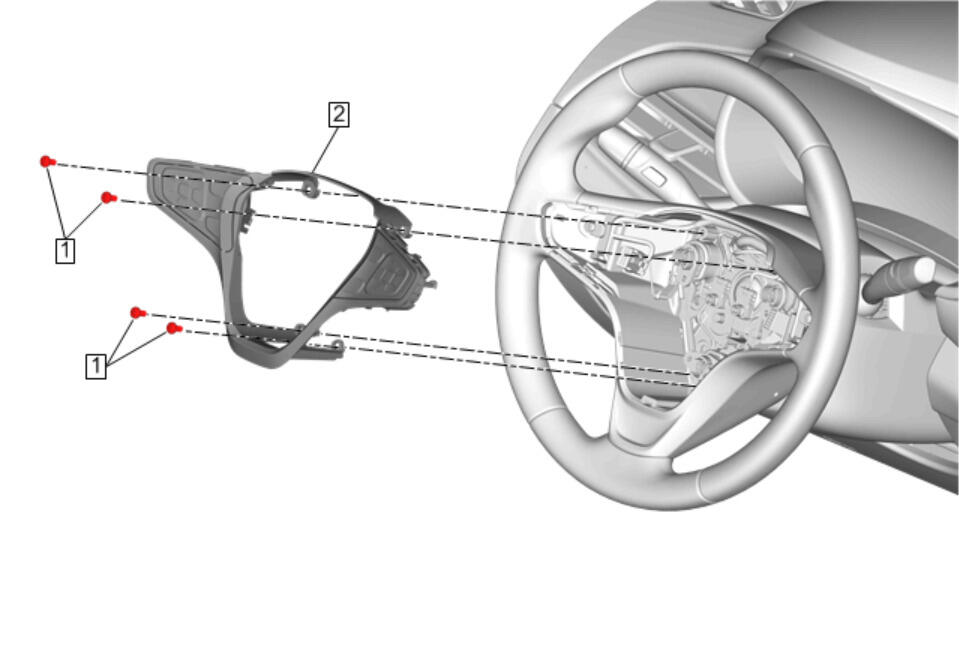

Callout	Component Name
Preliminary Procedure Steering Wheel Airbag Replacement
1	Steering Wheel Spoke Cover Fastener [4x] CAUTION: Refer to Fastener Caution . Tighten 1.5 N.m (13 lb in)
2	Steering Wheel Spoke Cover Procedure Use a flat bladed plastic tool to remove. Disconnect the electrical connectors. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure
Steering Wheel Airbag Replacement

Steering Wheel Spoke Cover Fastener [4x]

CAUTION:

Refer to Fastener Caution .

Tighten
1.5 N.m (13 lb in)

Steering Wheel Spoke Cover

Procedure

Use a flat bladed plastic tool to remove.
Disconnect the electrical connectors.
Transfer components as necessary.
