Steering Wheel Pad Accessory Wiring Harness Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the left side rear radio control switch. Radio Control Switch Replacement - Steering Wheel (Left Side Rear) , or Radio Control Switch Replacement - Steering Wheel (Right Side Rear) , or Radio Control Switch Replacement - Steering Wheel (Right Side Front) Remove the right side rear radio control switch. Radio Control Switch Replacement - Steering Wheel (Left Side Rear) , or Radio Control Switch Replacement - Steering Wheel (Right Side Rear) , or Radio Control Switch Replacement - Steering Wheel (Right Side Front)

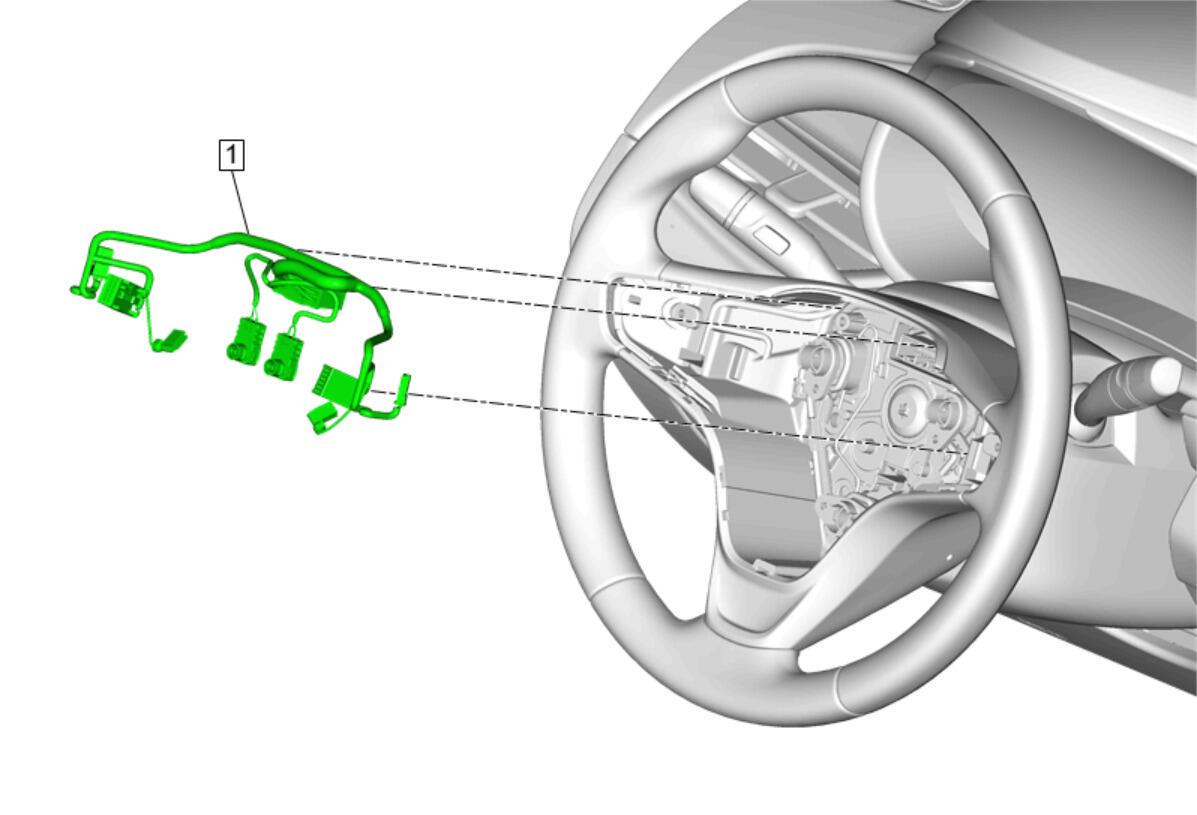

1	Steering Wheel Pad Accessory Wiring Harness Procedure Disconnect the electrical connectors. Remove the steering wheel pad accessory wiring harness from the steering wheel.

Callout

Component Name

Preliminary Procedures

Remove the left side rear radio control switch. Radio Control Switch Replacement - Steering Wheel (Left Side Rear) , or Radio Control Switch Replacement - Steering Wheel (Right Side Rear) , or Radio Control Switch Replacement - Steering Wheel (Right Side Front)
Remove the right side rear radio control switch. Radio Control Switch Replacement - Steering Wheel (Left Side Rear) , or Radio Control Switch Replacement - Steering Wheel (Right Side Rear) , or Radio Control Switch Replacement - Steering Wheel (Right Side Front)

Steering Wheel Pad Accessory Wiring Harness

Procedure

Disconnect the electrical connectors.
Remove the steering wheel pad accessory wiring harness from the steering wheel.
