Removal Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Fastener Caution
  1. 1. Upper Intermediate Steering Shaft - Remove - Upper Intermediate Steering Shaft Replacement
    GM5043349Courtesy of GENERAL MOTORS COMPANY

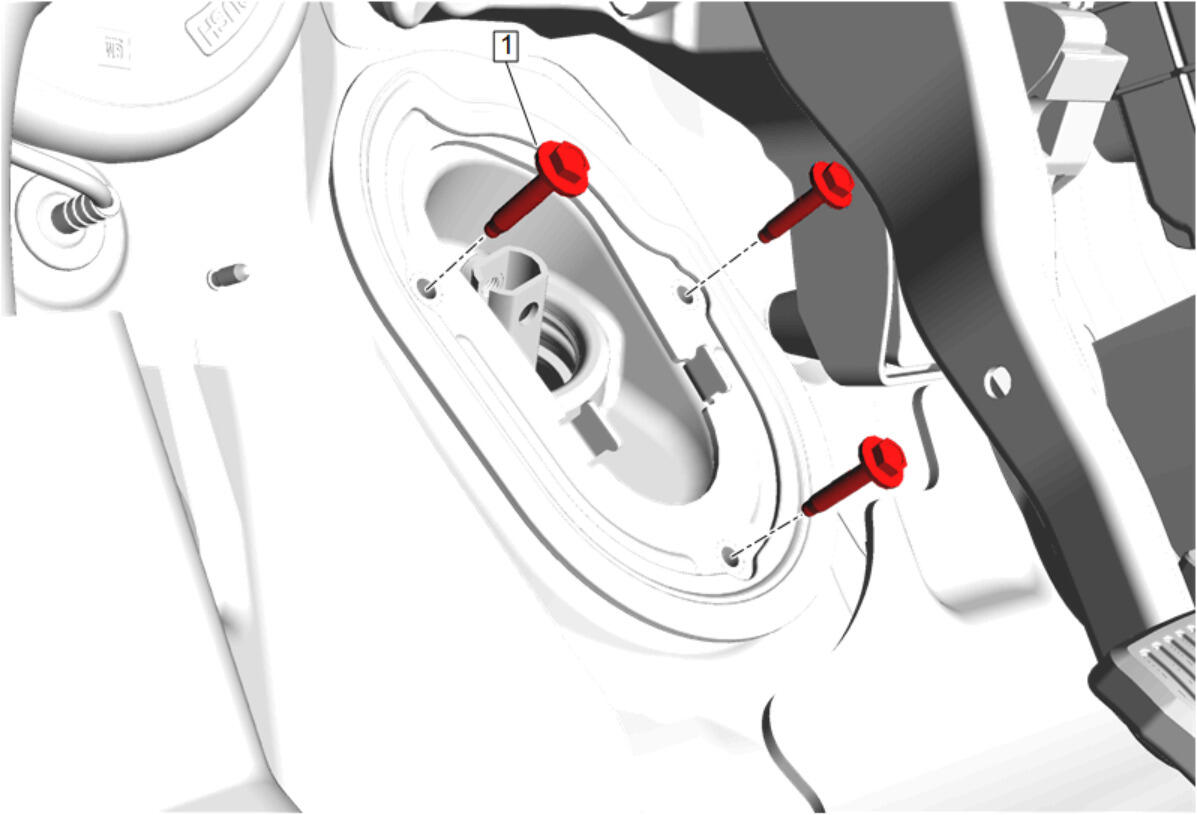

  2. Remove the 3 intermediate steering shaft inner boot bolts (1).
    GM5043350Courtesy of GENERAL MOTORS COMPANY

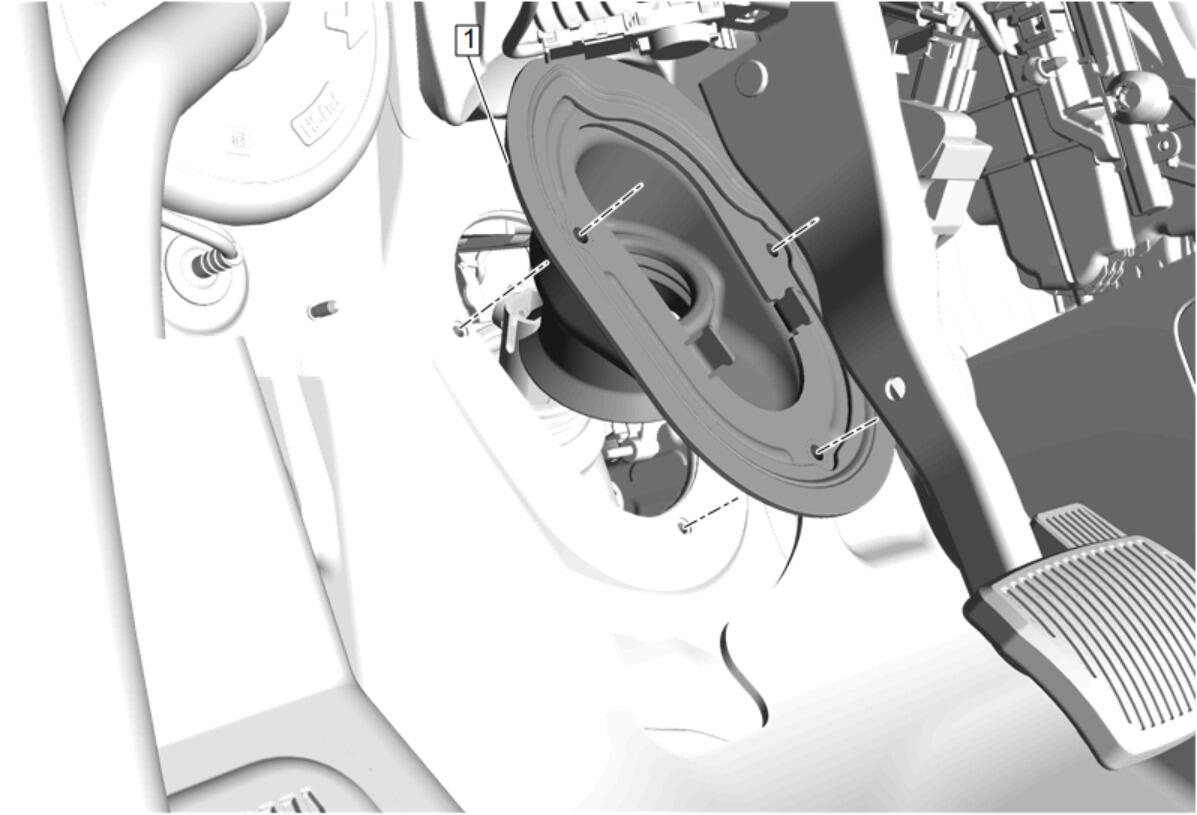

  3. Lift the lip of the intermediate steering shaft inner boot and release the boot from the intermediate steering shaft pass through.
  4. Remove the intermediate steering shaft inner boot (1) from the vehicle.
