Removal Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
GM5034927Courtesy of GENERAL MOTORS COMPANY
CAUTION: With wheels of the vehicle facing straight ahead, secure the steering wheel utilizing steering column anti-rotation pin, steeringcolumn lock, or a strap to prevent rotation. Locking of the steering column will prevent damage and a possible malfunctionof the SIR system. The steering wheel must be secured in position before disconnecting the following components:
  • The steering column
  • The intermediate shaft(s)
  • The steering gear
After disconnecting these components, do not rotate the steering wheel or move the front tires and wheels. Failure to followthis procedure may cause the SIR coil assembly to become un-centered and cause possible damage to the SIR coil. If you thinkthe SIR coil has become un-centered, refer to your specific SIR coil's centering procedure to re-center SIR Coil.

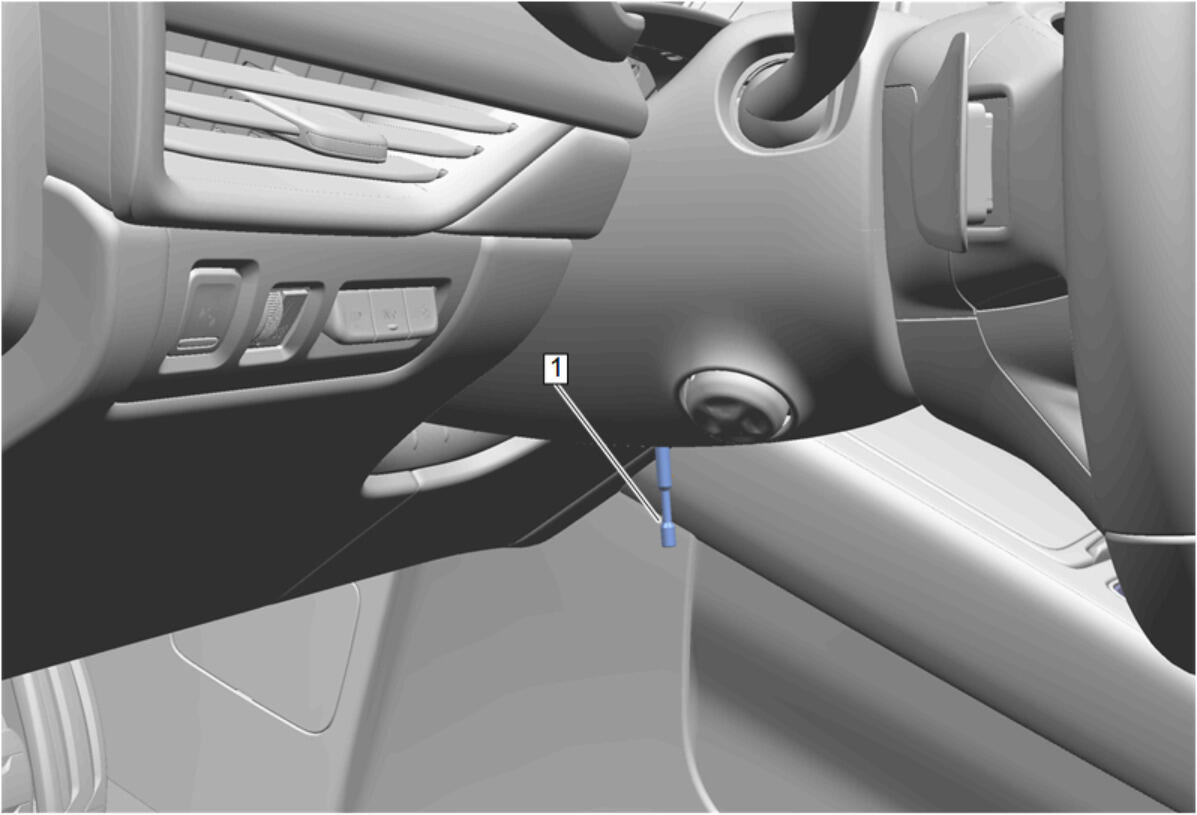

  1. Install the CH-42640 Steering Column Anti-Rotation Pin (1) in the steering column lower access hole.
  2. Floor Front Air Outlet Duct - Left Side Remove - Floor Front Air Outlet Duct Replacement - Left Side
  3. Upper Intermediate Steering Shaft Remove - Upper Intermediate Steering Shaft Replacement
    GM5043350Courtesy of GENERAL MOTORS COMPANY
    NOTE: The Intermediate steering shaft inner boot MUST be removed BEFORE removing the intermediate steering shaft boot.
  4. intermediate Steering Shaft Inner Boot (1) Remove - Intermediate Steering Shaft Inner Boot Replacement
  5. Remove the left front tire and wheel assembly. TIRE AND WHEEL REMOVAL AND INSTALLATION
    GM4249183Courtesy of GENERAL MOTORS COMPANY

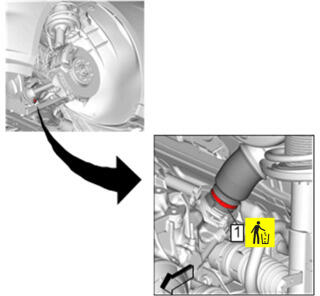

  6. Cut the intermediate steering shaft boot clamp (1). DISCARD the clamp.
    GM5043366Courtesy of GENERAL MOTORS COMPANY

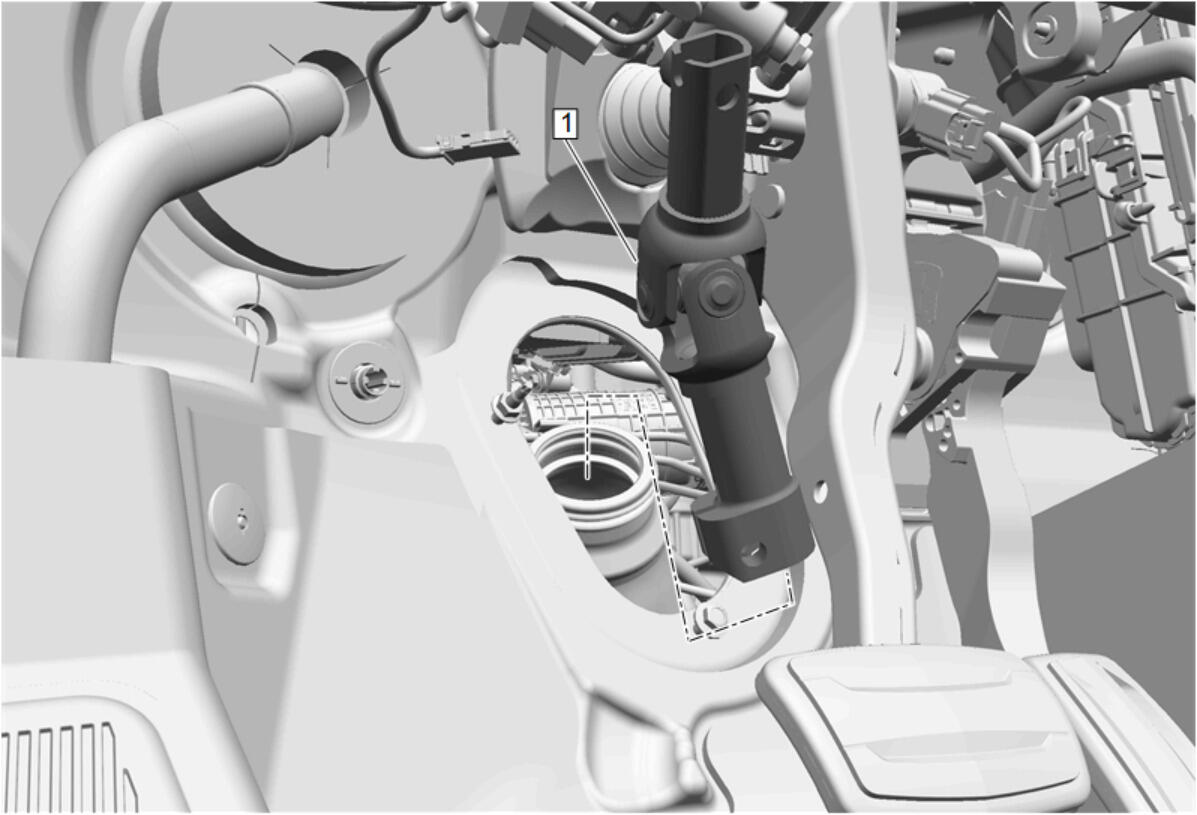

  7. Intermediate Steering Shaft (1) Remove - Intermediate Steering Shaft Replacement
    GM4249198Courtesy of GENERAL MOTORS COMPANY

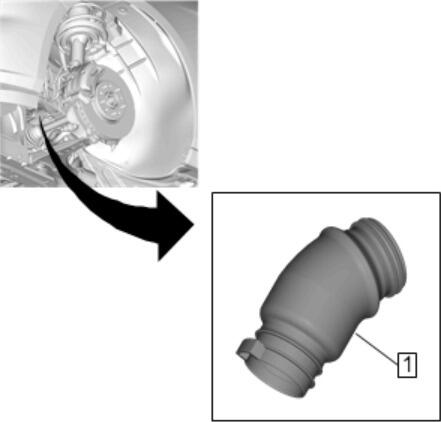

  8. Remove the intermediate steering shaft boot (1) from the vehicle.
