Assembly Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Front Suspension Strut Bumper (1) - Install
Front Strut Boot (2) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Coil Spring Insulator (2) - Install
Front Strut Mount (1) - Install
Courtesy of GENERAL MOTORS COMPANY

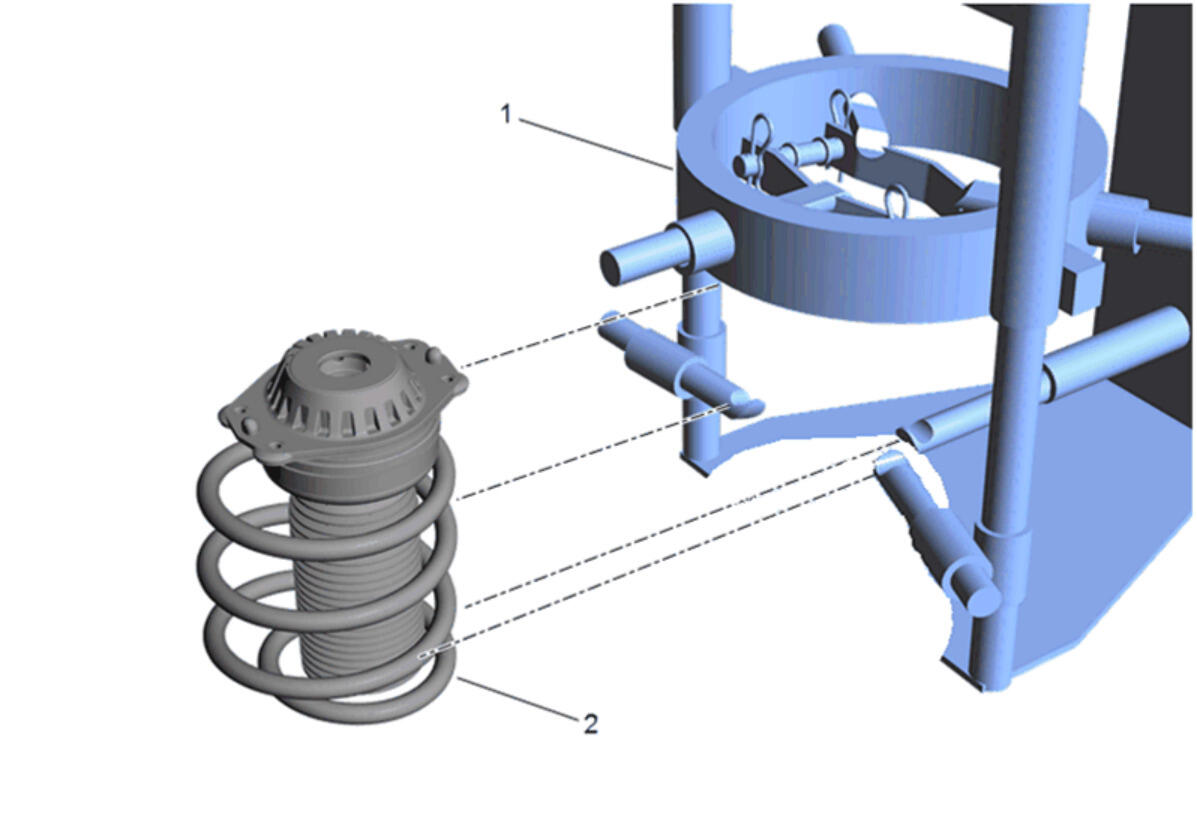

If replacing the front coil spring (2), transfer the grease pencil marks made on the old front coil spring (2) to the new front coil spring (2).
Align the grease pencil marks to the lower arms and center the front coil spring (2) and the associated components to the CH-45400 Strut Spring Compressor (1).
Ensure that the spring is level in the CH-45400 Strut Spring Compressor (1) by using the adjustment screws.
Using the CH-45400 Strut Spring Compressor (1), apply tension on the front coil spring (2).
Courtesy of GENERAL MOTORS COMPANY

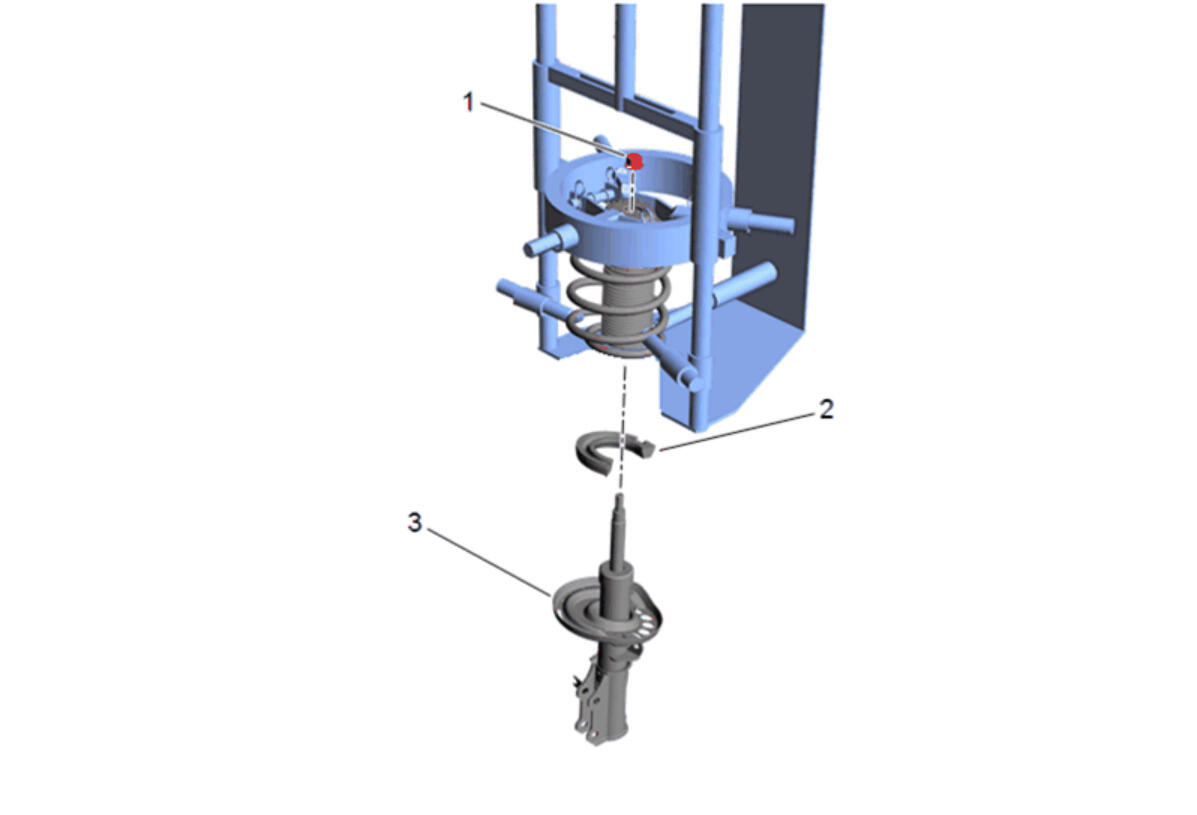

Front Coil Spring Lower Insulator (2) - Install

NOTE:

Support the front suspension strut until the front suspension strut nut is loosely installed.

Front Suspension Strut (3) - Install

NOTE:

Adjust the CH-45400 Strut Spring Compressor as necessary so enough of the threaded portion of the front suspension strut rod is exposed.

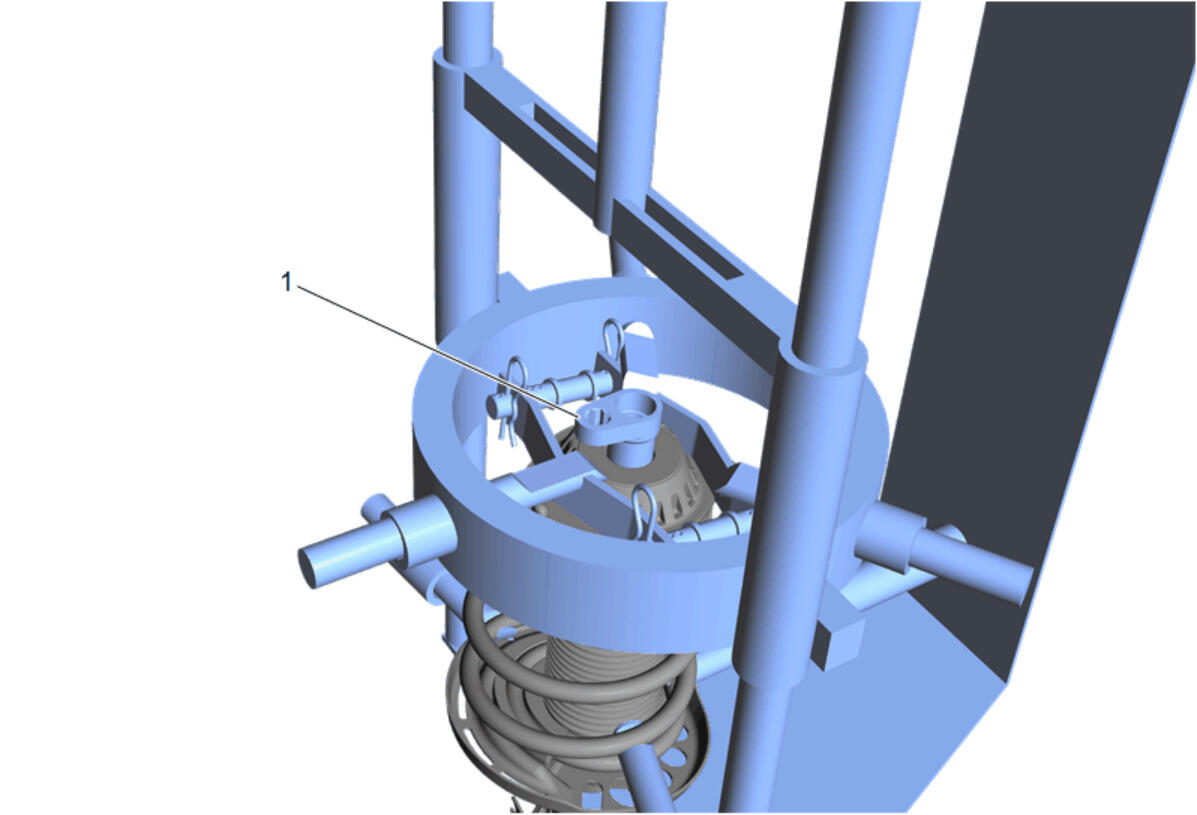

Front Strut Rod Mount Nut (1) - Loosely install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Using the CH-42991 Strut Rod Nut Socket (1), tighten the front strut rod mount nut to 70 N.m (52 lb ft).
Courtesy of GENERAL MOTORS COMPANY

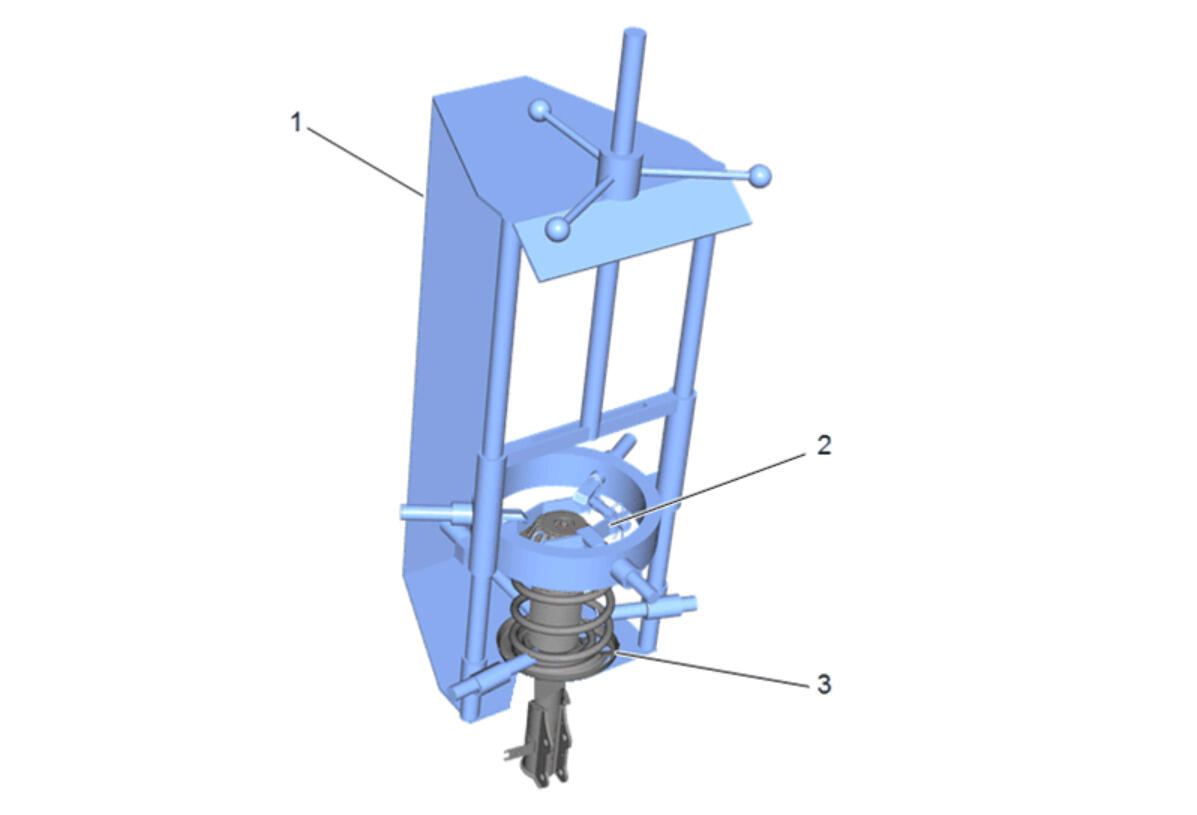

Using the CH-45400 Strut Spring Compressor (1), release all tension on the front coil spring and the front strut mount.
Remove the front suspension strut assembly (3) from the CH-45400 Strut Spring Compressor (1).
Install the front suspension strut assembly to the vehicle. Strut Assembly Removal and Installation
