Removal Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

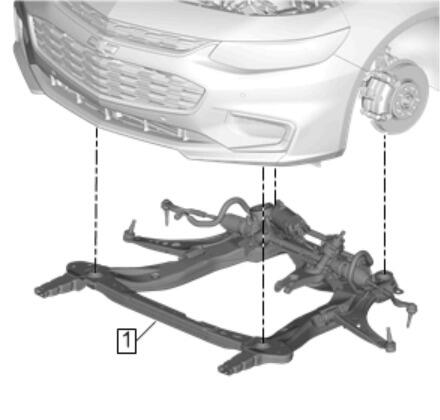

  1. GM4217623Courtesy of GENERAL MOTORS COMPANY

    Drivetrain and Front Suspension Cradle (1) - Remove - Drivetrain and Front Suspension Cradle Replacement (LFV)Drivetrain and Front Suspension Cradle Replacement (LKN)Drivetrain and Front Suspension Cradle Replacement (LTG)

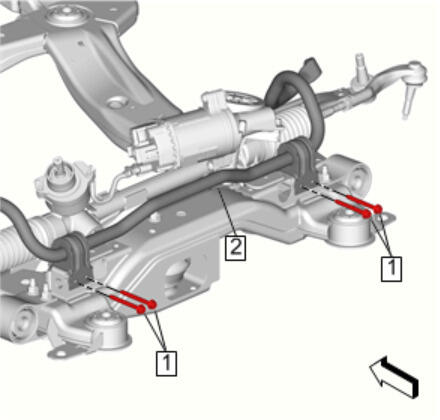

  2. GM4217716Courtesy of GENERAL MOTORS COMPANY

    Front Stabilizer Shaft Insulator Clamp Bolt (1) - Remove [4x]

  3. Remove the front stabilizer shaft (2) from the drivetrain and front suspension cradle.
