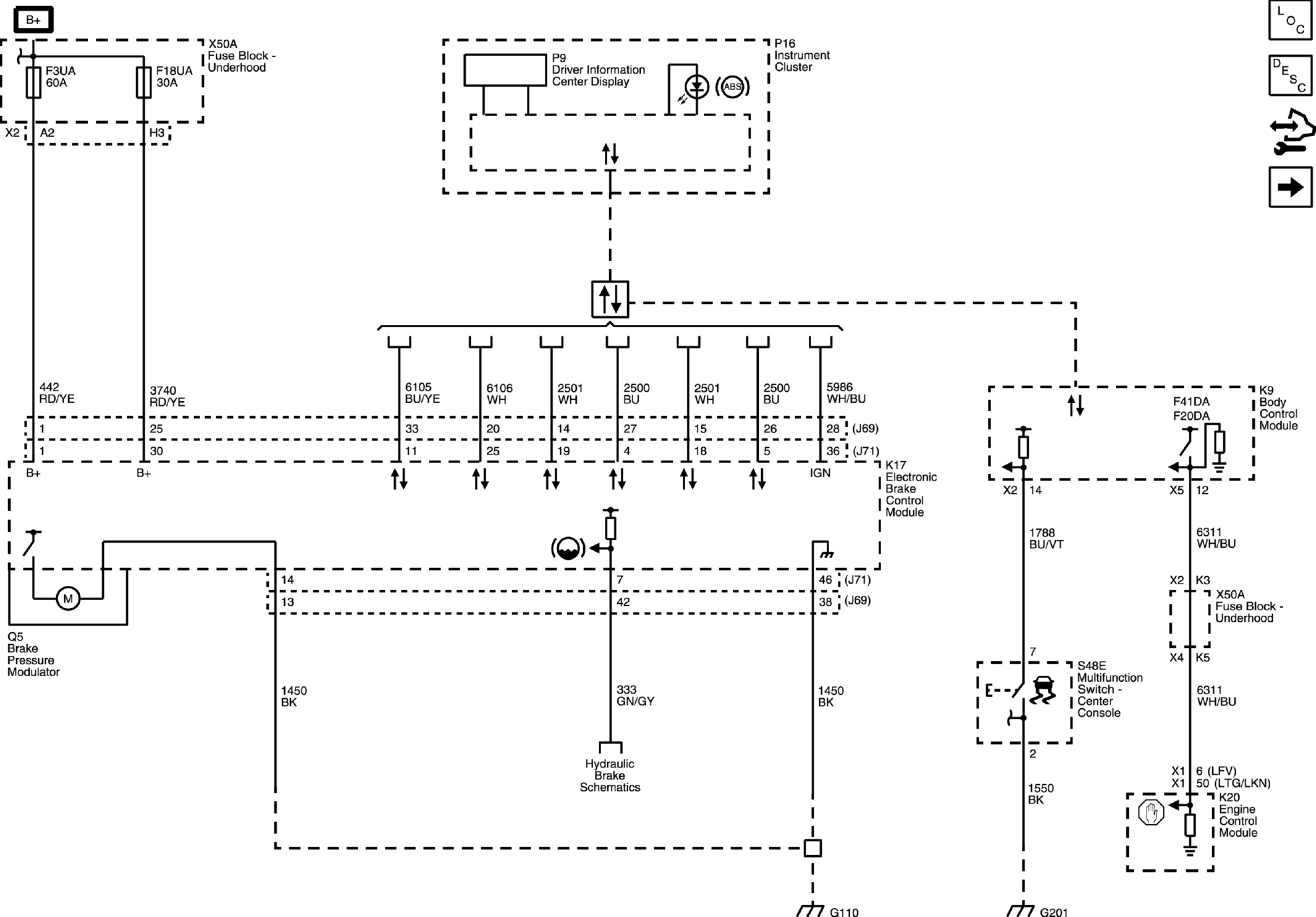

Power, Ground, Serial Data, Traction Control and References

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
GM4998277Courtesy of GENERAL MOTORS COMPANY
