Installation Procedure
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

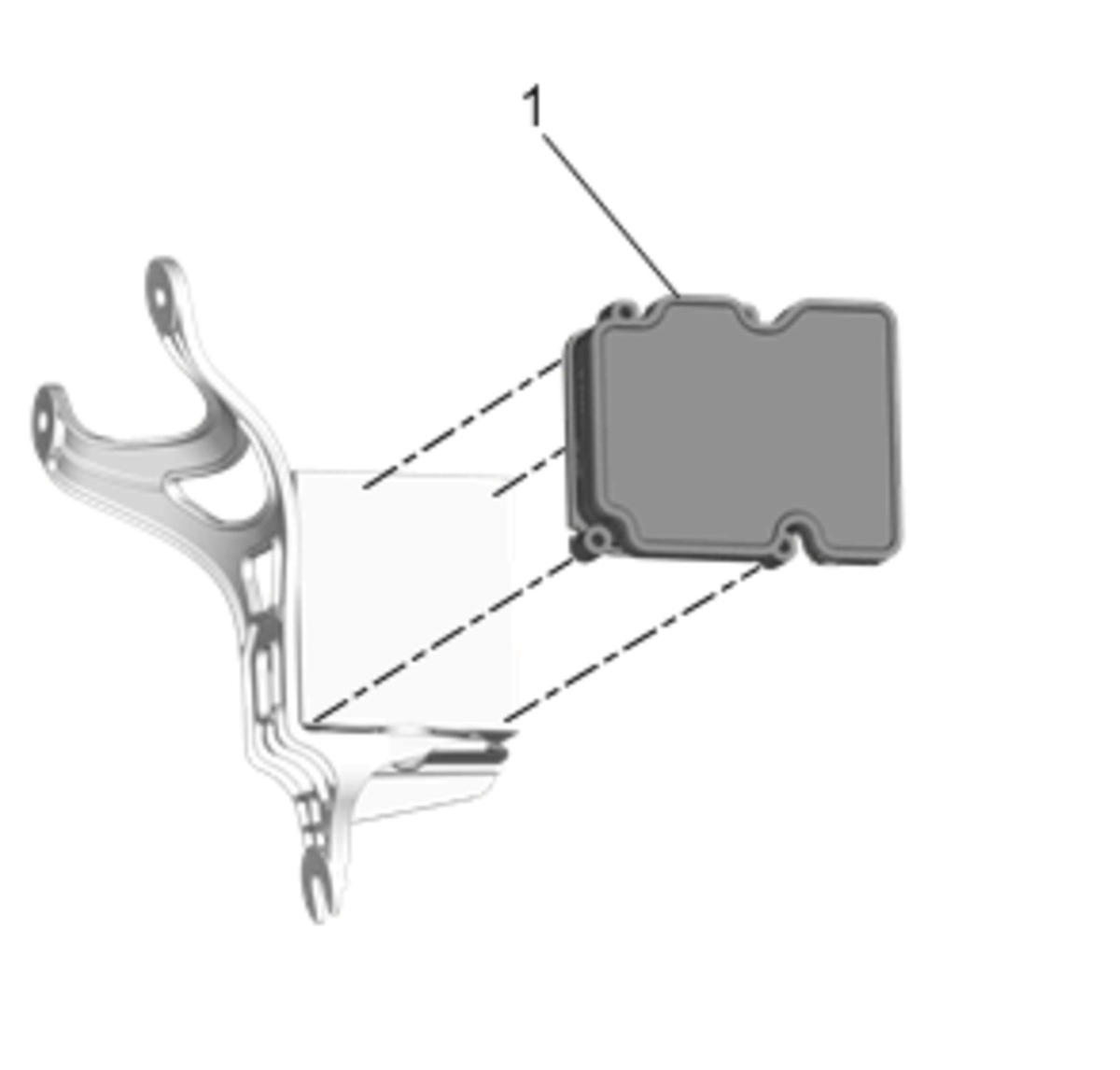

Electronic Brake Control Module (1) - Install
- CAUTION:

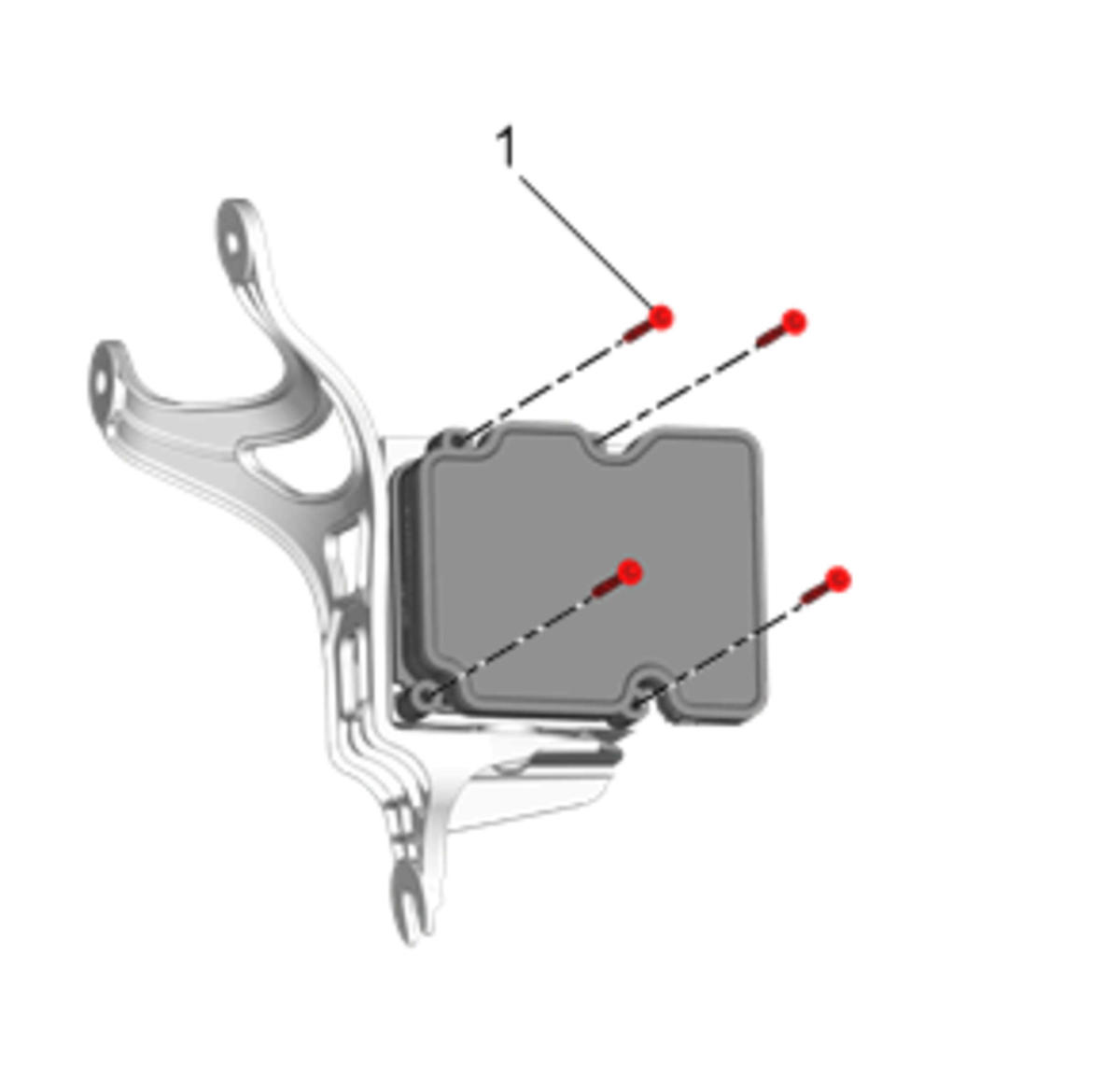

Electronic Brake Control ModuleBolt (1) - Install and tighten 3 N.m (27 lb in) [4x]
- Electronic Traction Control Brake Pressure Modulator Valve Replacement - Install
- Program the EBCM. Control Module References
