Removal Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Electronic Traction Control Brake Pressure Modulator Valve - Remove - Electronic Traction Control Brake Pressure Modulator Valve Replacement

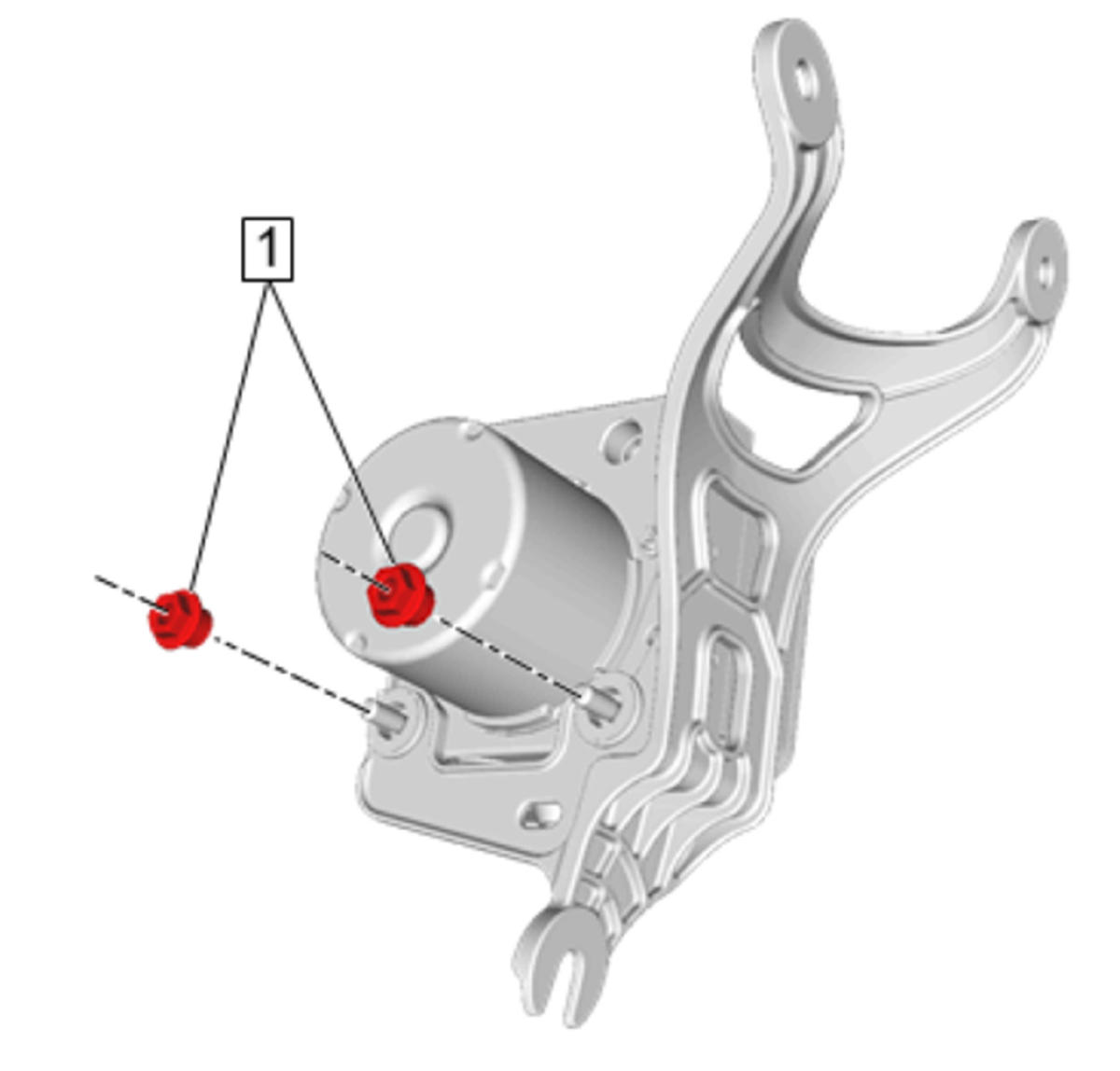

  2. GM4299246Courtesy of GENERAL MOTORS COMPANY

    Brake Pressure Modulator ValveNut (1) - Remove [2x]

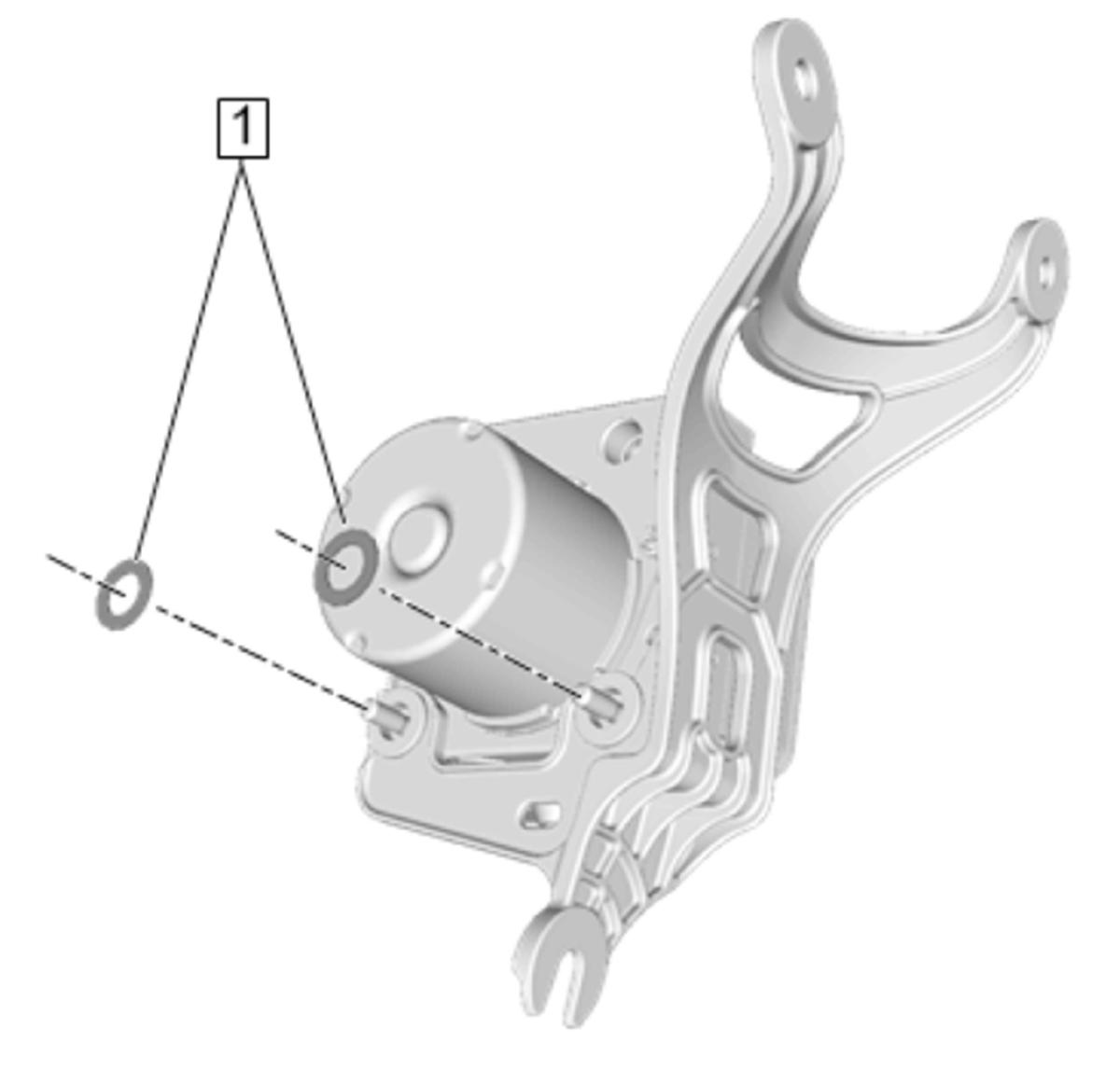

  3. GM4299247Courtesy of GENERAL MOTORS COMPANY

    Brake Pressure Modulator ValveWasher (1) - Remove [2x]

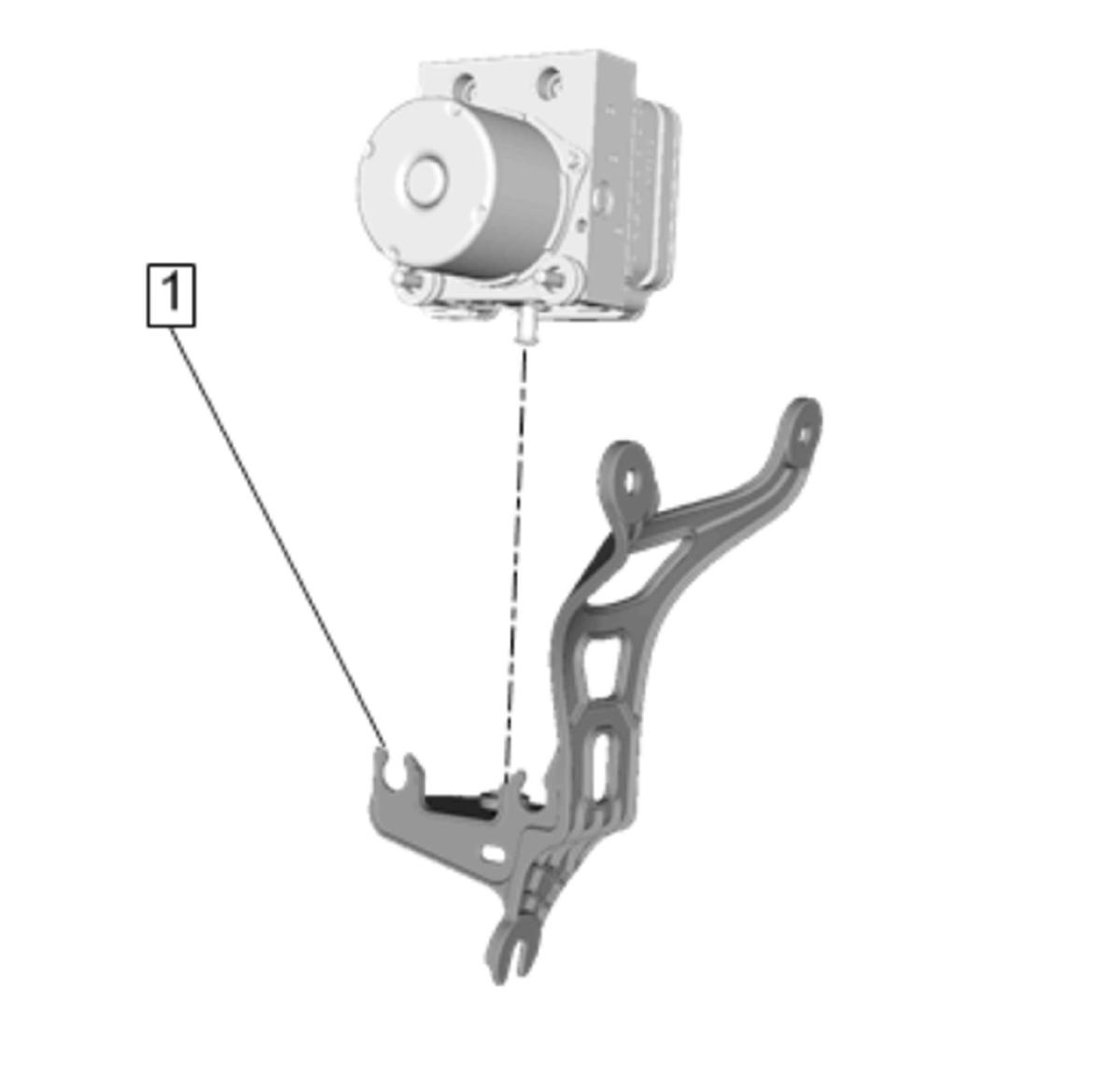

  4. GM4299248Courtesy of GENERAL MOTORS COMPANY

    Brake Pressure Modulator Valve Bracket (1) - Remove
