Installation Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

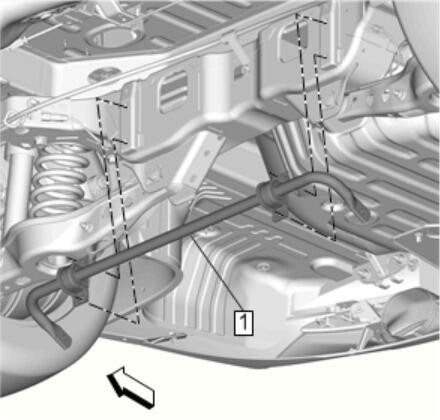

Rear Stabilizer Shaft (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

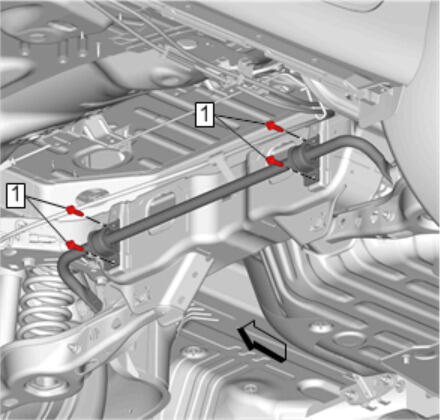

Rear Stabilizer Shaft Insulator Clamp Bolt (1) - Install and tighten [4x] 58 N.m (43 lb ft)
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.

NOTE:
Ensure that there are no gaps in the threadlocker along the length of the filled area of the threads on the shaft. Allow the threadlocker to cure approximately 10 minutes before installation of the nut.

Apply GM specified threadlocker or industry equivalent to the rear stabilizer shaft link bolt threads. Adhesives, Fluids, Lubricants, and Sealers

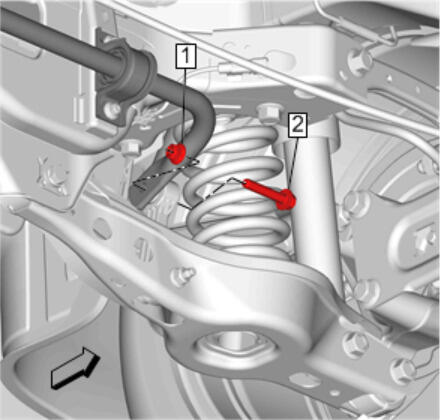

Rear Stabilizer Shaft Link Bolt (2) @Left Side - Install a NEW bolt.
Rear Stabilizer Shaft Link Nut (1) @Left Side - Install
Tighten the Bolt
1. First Pass: 58 N.m (43 lb ft)
2. Final Pass: (45-60 degrees)
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Ensure that there are no gaps in the threadlocker along the length of the filled area of the threads on the shaft. Allow the threadlocker to cure approximately 10 minutes before installation of the nut.

Apply GM specified threadlocker or industry equivalent to the rear stabilizer shaft link bolt threads. Adhesives, Fluids, Lubricants, and Sealers
Rear Stabilizer Shaft Link Bolt (2) @Right Side - Install a NEW bolt.
Rear Stabilizer Shaft Link Nut (1) @Right Side - Install
Tighten the Bolt
1. First Pass: 58 N.m (43 lb ft)
2. Final Pass: (45-60 degrees)
Lower the vehicle.
