Installation Procedure
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

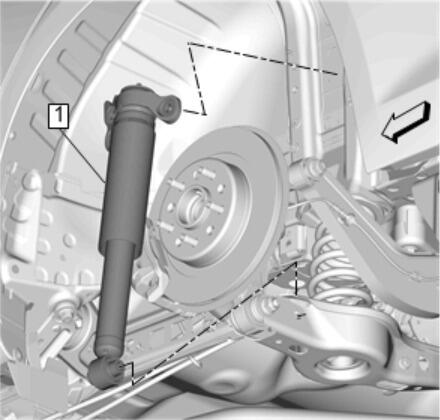

Rear Shock Absorber (1) - Install
- CAUTION:
Refer to Fastener Caution .
NOTE:Ensure jounce bumper and dust cover are secure within the top mount before tightening. If not properly secure, the jounce bumper and dust cover will fall down causing a click noise. When the top mount is fastened, it secures the jounce bumper within the top mount.

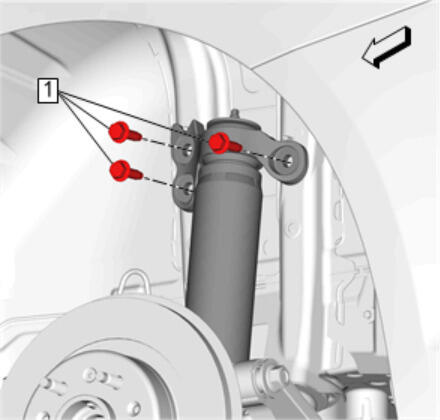

Rear Shock Absorber Bolt (1) - Install [3x]
Tighten 58 N.m (43 lb ft)
- Tug downwards on the jounce bumper and dust cover. If the assembly falls out of the mount, remove the top mount fasteners and start over.
- Install the rear shock absorber electrical connection, if applicable.
- CAUTION:
This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.

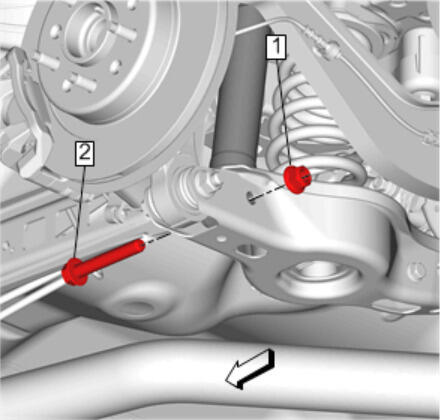

Rear Shock Absorber Bolt (2) - Install
Install a NEW bolt.
- Rear Shock Absorber Nut (1) - Install
Tighten
- First Pass: 160 N.m (118 lb ft)
- Final Pass: (90 - 105 degrees)
- Rear Wheelhouse Liner Replacement - Install
- Install the tire and wheel assembly. Tire and Wheel Removal and Installation
