Installation Procedure
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
- Apply grease evenly and ensure complete coverage to the knuckle bearing pilot bore only. Adhesives, Fluids, Lubricants, and Sealers

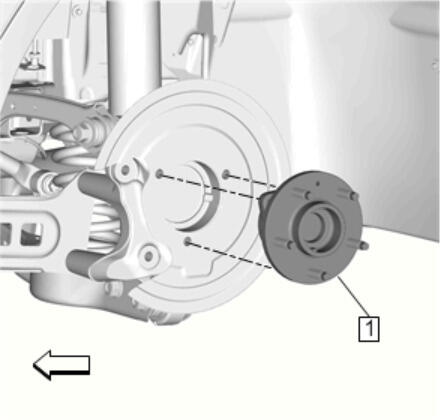

Rear Wheel Bearing and Hub Assembly (1) - Install
- CAUTION:
Refer to Fastener Caution .
CAUTION:This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.

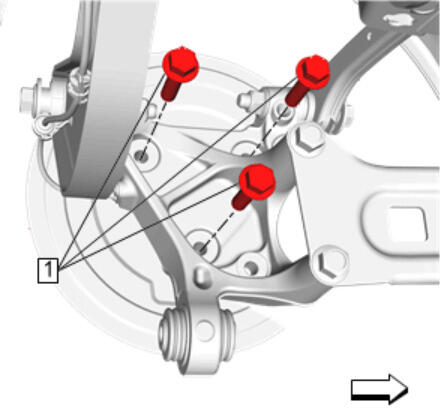

Rear Wheel Bearing and Hub Assembly Bolt (1) - Install a NEW bolt.[3x]
Tighten
- First Pass: 100 N.m (74 lb ft)
- Final Pass: (15-30 degrees)
- Rear Brake Rotor Replacement - Install
- Rear Wheel Speed Sensor Replacement - Install
- Install the tire and wheel assembly. Tire and Wheel Removal and Installation
NOTE:
Avoid applying grease to any other machined surface, holes, or threads. Ensure the drain channel at the bottom of the bore is not blocked with grease or debris.
