Removal Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Lifting and Jacking the Vehicle
  2. Remove the rear tire and wheel assembly. Tire and Wheel Removal and Installation
  3. { If equipped }Rear Suspension Position Ball Socket @Rear Suspension Upper Lateral Link - Disconnect

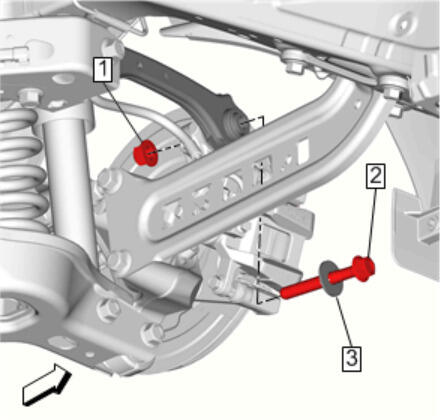

  4. GM4200092Courtesy of GENERAL MOTORS COMPANY

    Rear Suspension Upper Lateral Link Nut (1) - Remove

  5. Rear Suspension Upper Lateral Link Bolt (2) - Remove and DISCARD
  6. Rear Suspension Upper Control Arm Washer (3) - Remove

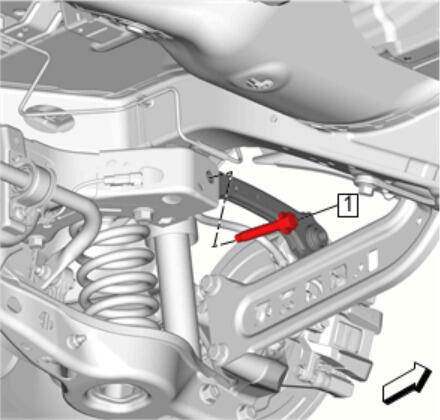

  7. GM4200090Courtesy of GENERAL MOTORS COMPANY

    Rear Suspension Upper Lateral Link Inner Bolt (1) - Remove and DISCARD

  8. GM4200093Courtesy of GENERAL MOTORS COMPANY

    Rear Suspension Upper Lateral Link (1) - Remove
