Installation Procedure
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

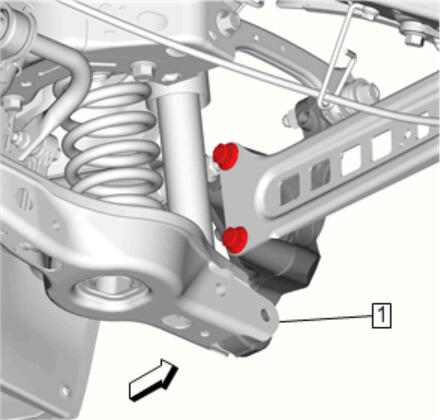

Rear Knuckle (1) - Install
Rear Suspension Trailing Arm Bolt (2) - Install [2x] - Rear Suspension Trailing Arm Replacement
Raise the rear suspension lower control arm (1) back into position. Lower Control Arm Replacement
Rear Suspension Lower Control Arm Outer Bolt (2) - Install
- Rear Suspension Lower Control Arm Outer Nut (1) - Install - Lower Control Arm Replacement
- Remove the support from the rear suspension lower control arm.
Rear Suspension Adjust Link Outer Bolt (2) - Install
- Rear Suspension Adjust Link Nut (1) - Install - Adjust Link Replacement
Rear Suspension Upper Control Arm Outer Bolt (2) - Install
- Rear Suspension Upper Control Arm Outer Nut (1) - Install - Rear Suspension Upper Lateral Link Replacement
- Rear Brake Shield - Install - Rear Brake Shield Replacement
- Rear Wheel Bearing and Hub Assembly - Install - Rear Wheel Bearing and Hub Replacement
Rear Brake Rotor (1) - Install - Rear Brake Rotor Replacement
- Rear Brake Caliper Bracket - Install - Rear Brake Caliper Bracket Replacement
- Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation
