Removal Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the tire and wheel assembly. Tire and Wheel Removal and Installation
  2. Rear Wheel Speed Sensor Replacement - Remove

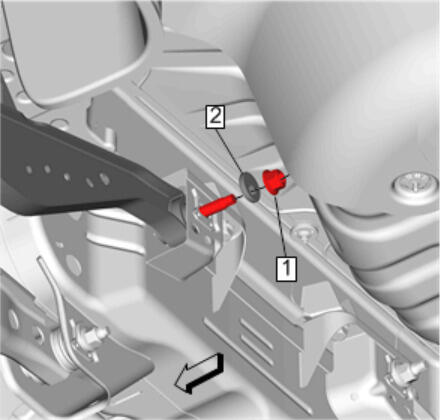

  3. GM4198900Courtesy of GENERAL MOTORS COMPANY

    Rear Suspension Adjust Link Nut (1) - Remove

  4. Rear Suspension Adjust Link Cam (2) - Remove

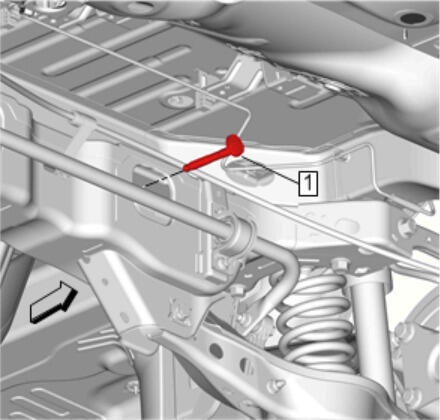

  5. GM4198904Courtesy of GENERAL MOTORS COMPANY

    Rear Suspension Adjust Link Inner Bolt (1) - Remove

    DISCARD the bolt.

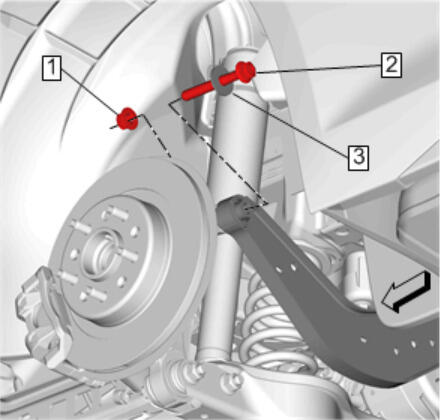

  6. GM4198916Courtesy of GENERAL MOTORS COMPANY

    Rear Suspension Adjust Link Outer Nut (1) - Remove

  7. Remove the rear suspension outer bolt (2) and washer (3).

    DISCARD the bolt.

  8. GM4198922Courtesy of GENERAL MOTORS COMPANY

    Rear Suspension Adjust Link (1) - Remove
