Installation Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

NOTE:
The parking brake actuator mounting surfaces of the brake caliper must be clean and free of corrosion and debris.

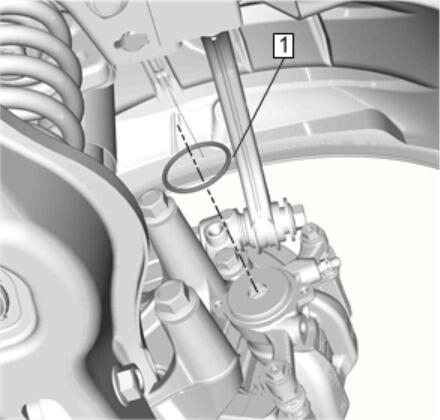

Seal Ring (1) @Rear Brake Caliper - Install NEW
Courtesy of GENERAL MOTORS COMPANY

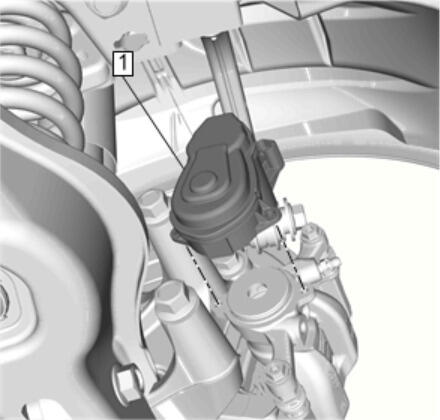

Parking Brake Actuator (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

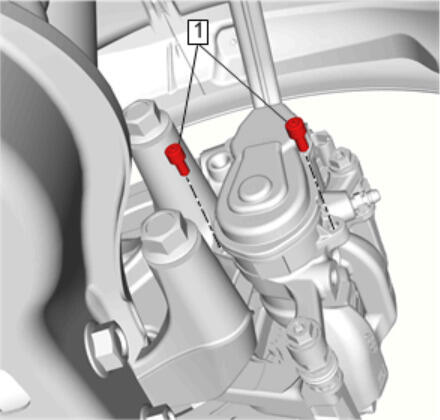

Parking Brake Actuator Bolt (1) - Install and tighten 12 N.m (106 lb in) [2x]
Connect the parking brake actuator electrical connector and reposition the wiring harness to the parking brake actuator.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Install NEW brake hose fitting gaskets.

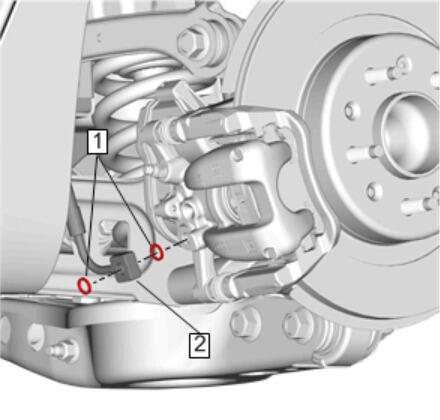

Brake Hose Fitting Gasket (1) @ Brake Hose Fitting (2) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

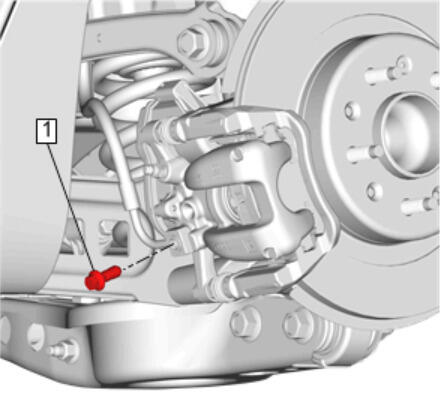

Brake Hose Fitting Bolt (1) @Rear Brake Caliper - Install and tighten 9 N.m (80 lb in)
Bleed the brake system. Hydraulic Brake System Bleeding (Pressure)Hydraulic Brake System Bleeding (Manual)
Tire and Wheel Removal and Installation - Install
Calibrate the park brake. Park Brake Calibration
