Removal Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Brake Dust Warning

Fully release the parking brake.
Raise and support the vehicle. Lifting and Jacking the Vehicle
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Pull downward on the parking brake front cable to slacken the parking brake rear cable.

Parking Brake CableFront Cable Connector (1) @Parking Brake Cable Rear - Disconnect
Courtesy of GENERAL MOTORS COMPANY

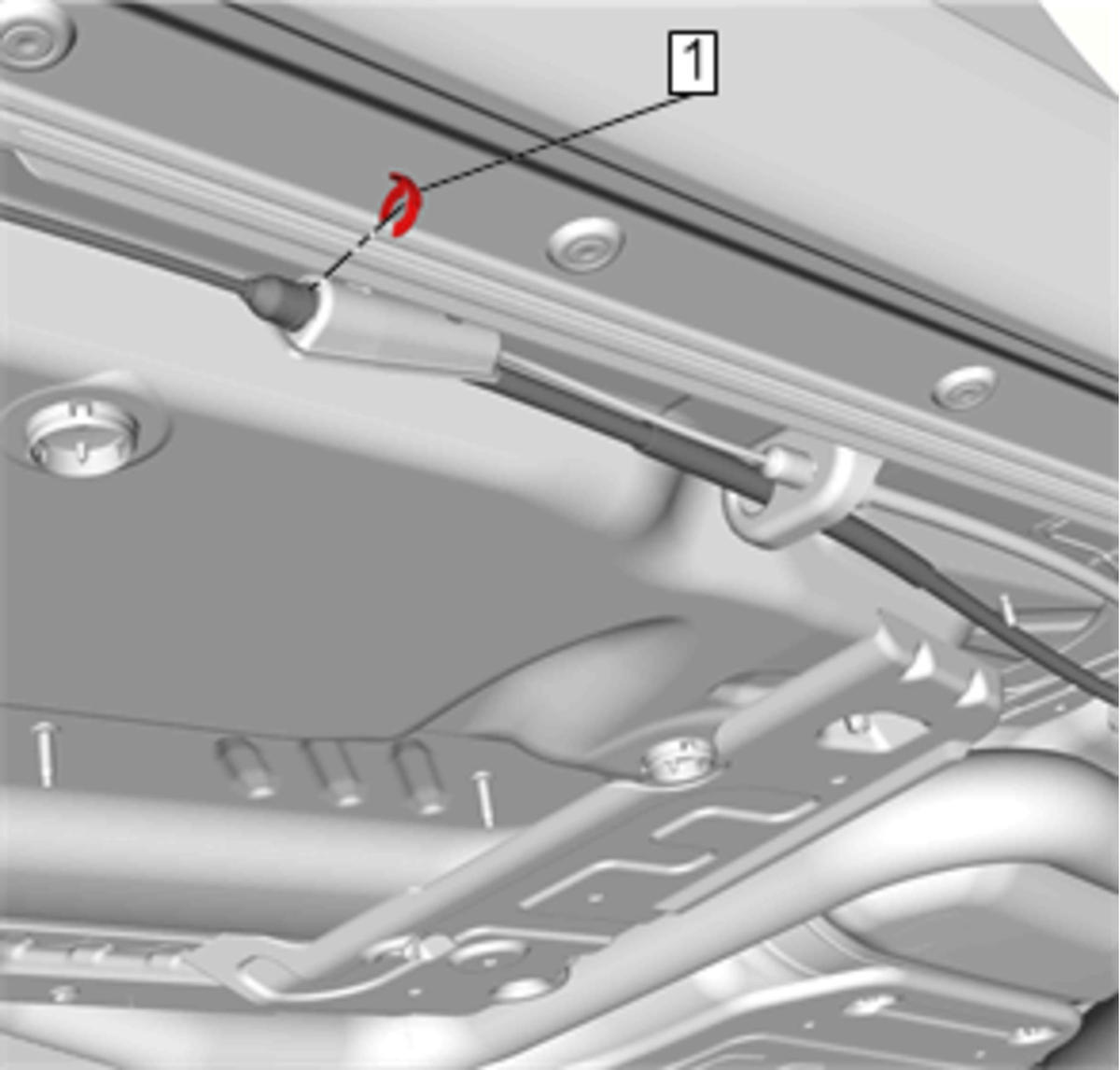

Parking Brake Cable EqualizerRetainer (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

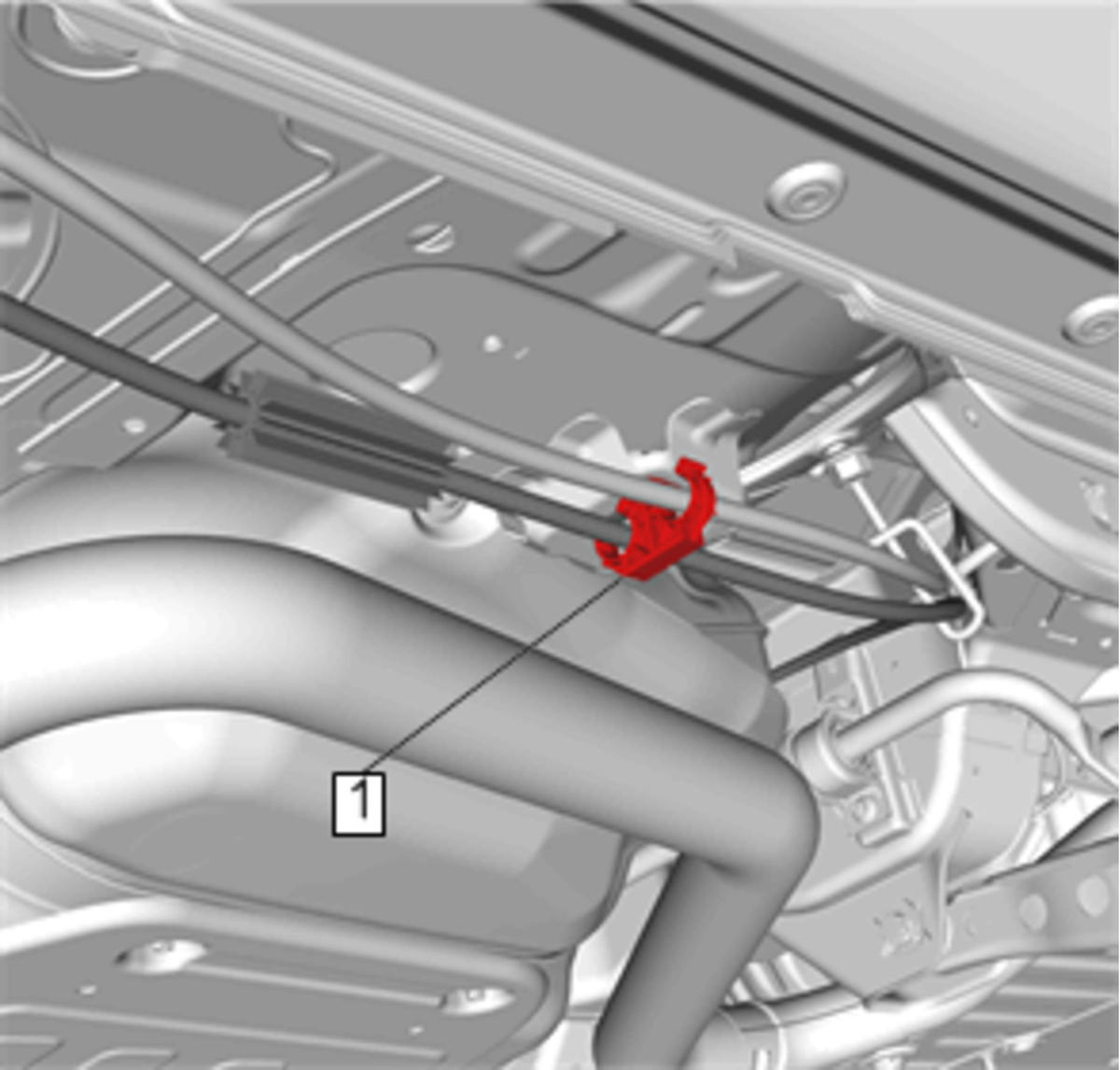

Parking Brake Cable@Clip (1) - Release
Courtesy of GENERAL MOTORS COMPANY

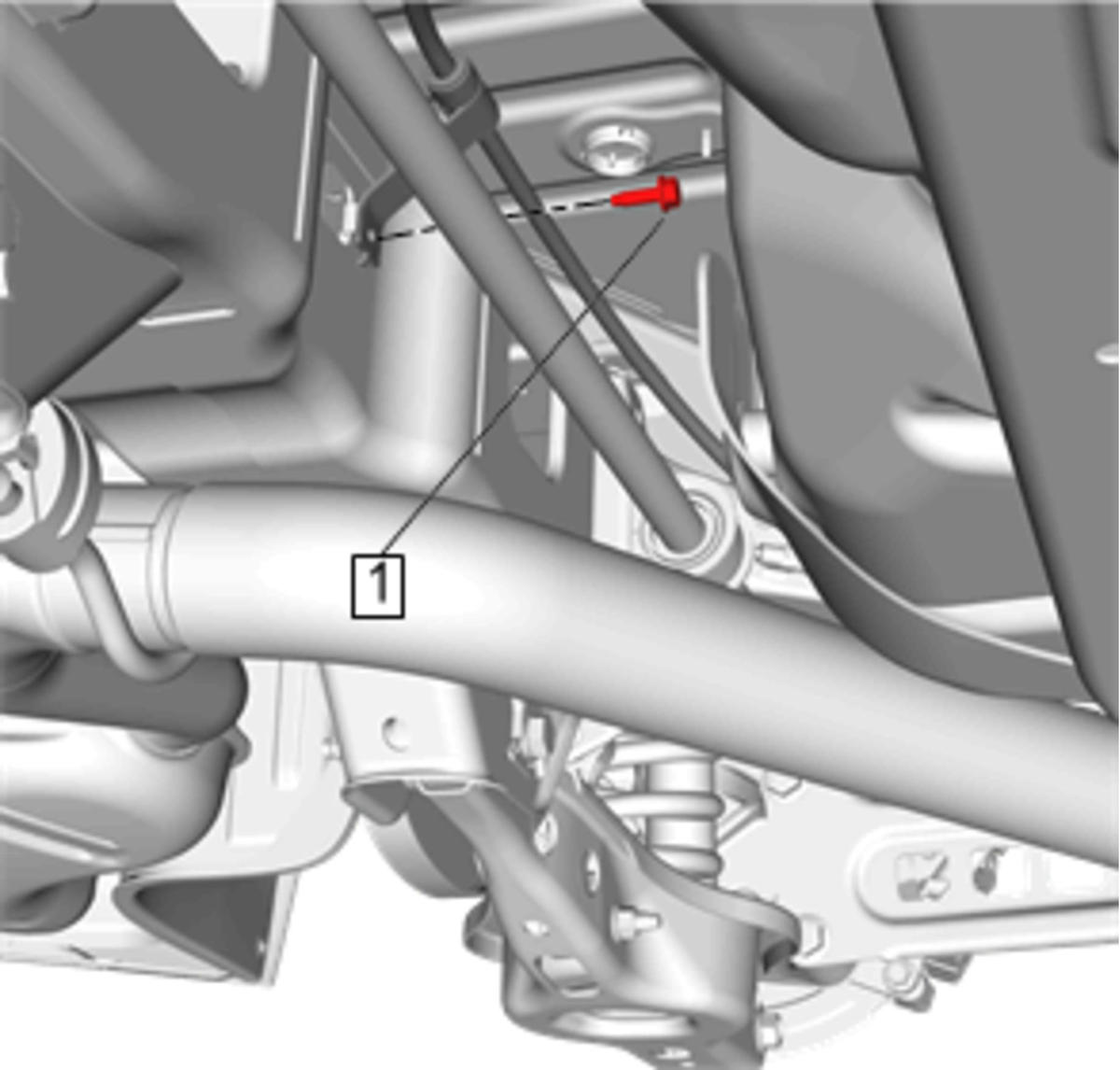

Parking Brake Cable Guide Bolt (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Parking Brake CableClipBolt (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

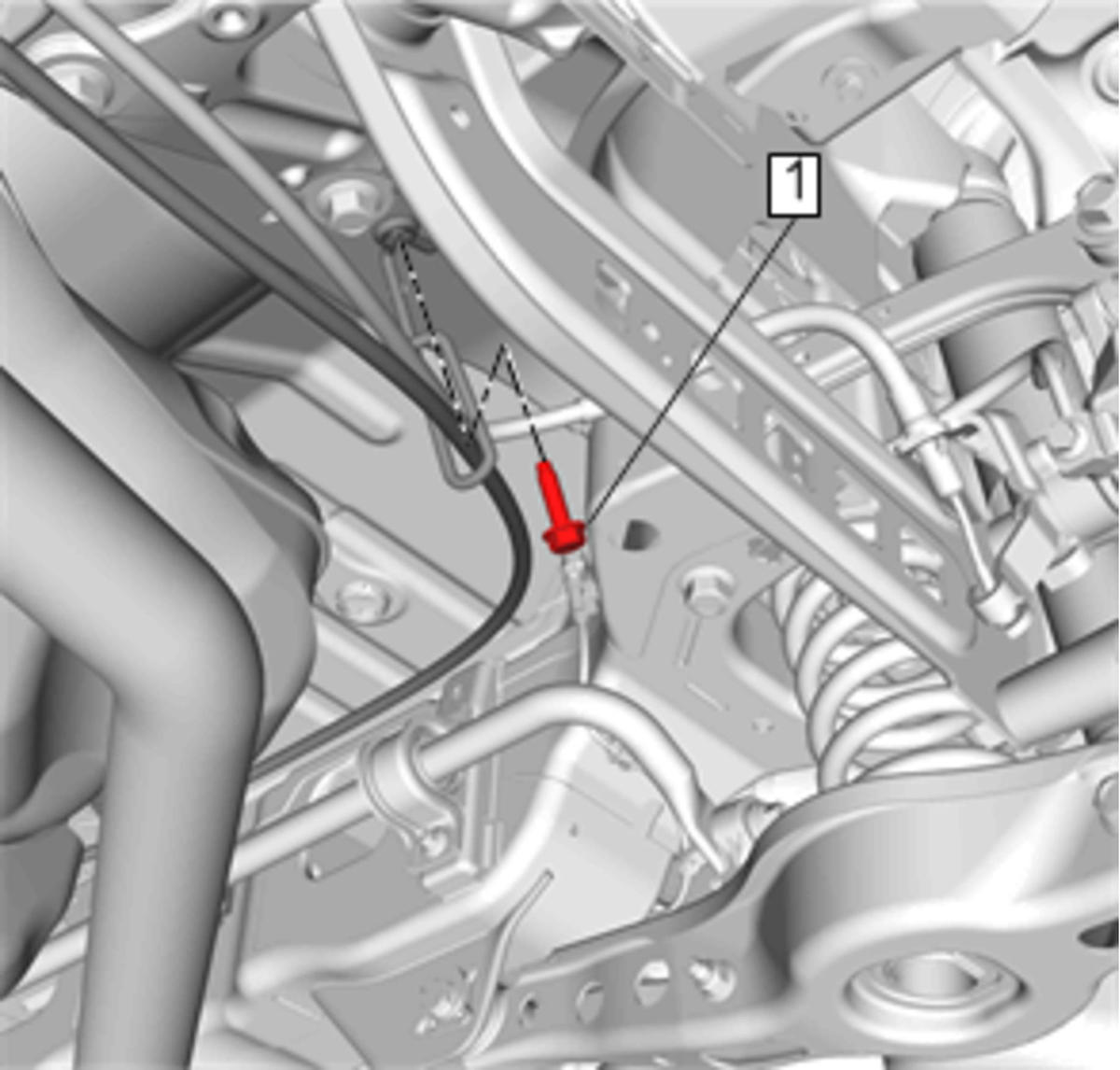

Parking Brake Cable Guide Bolt (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

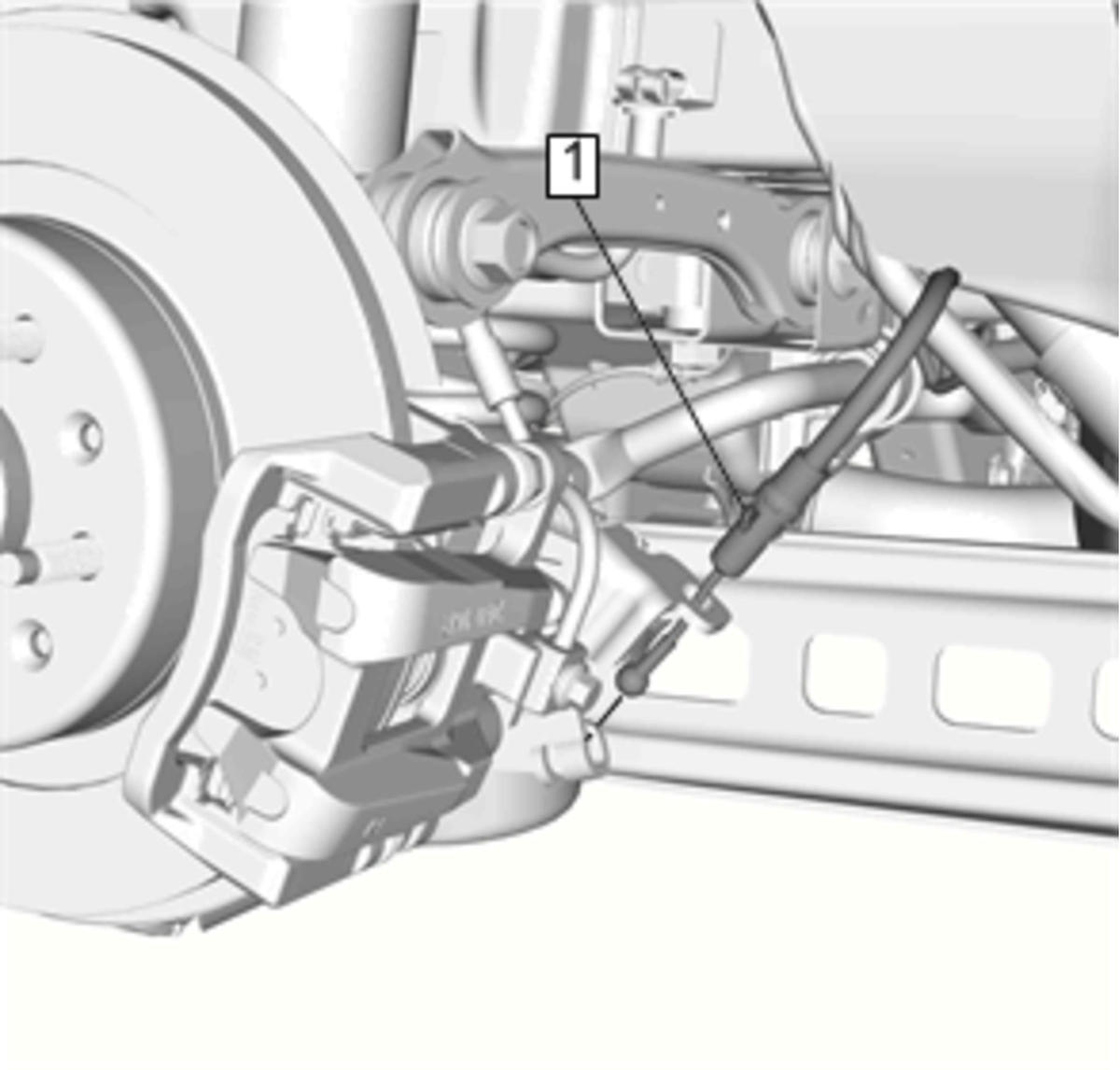

Parking Brake CableRetainer (1) Release
Disconnect the parking brake cable from the actuator lever on the caliper and remove the parking brake cable.
