Installation Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

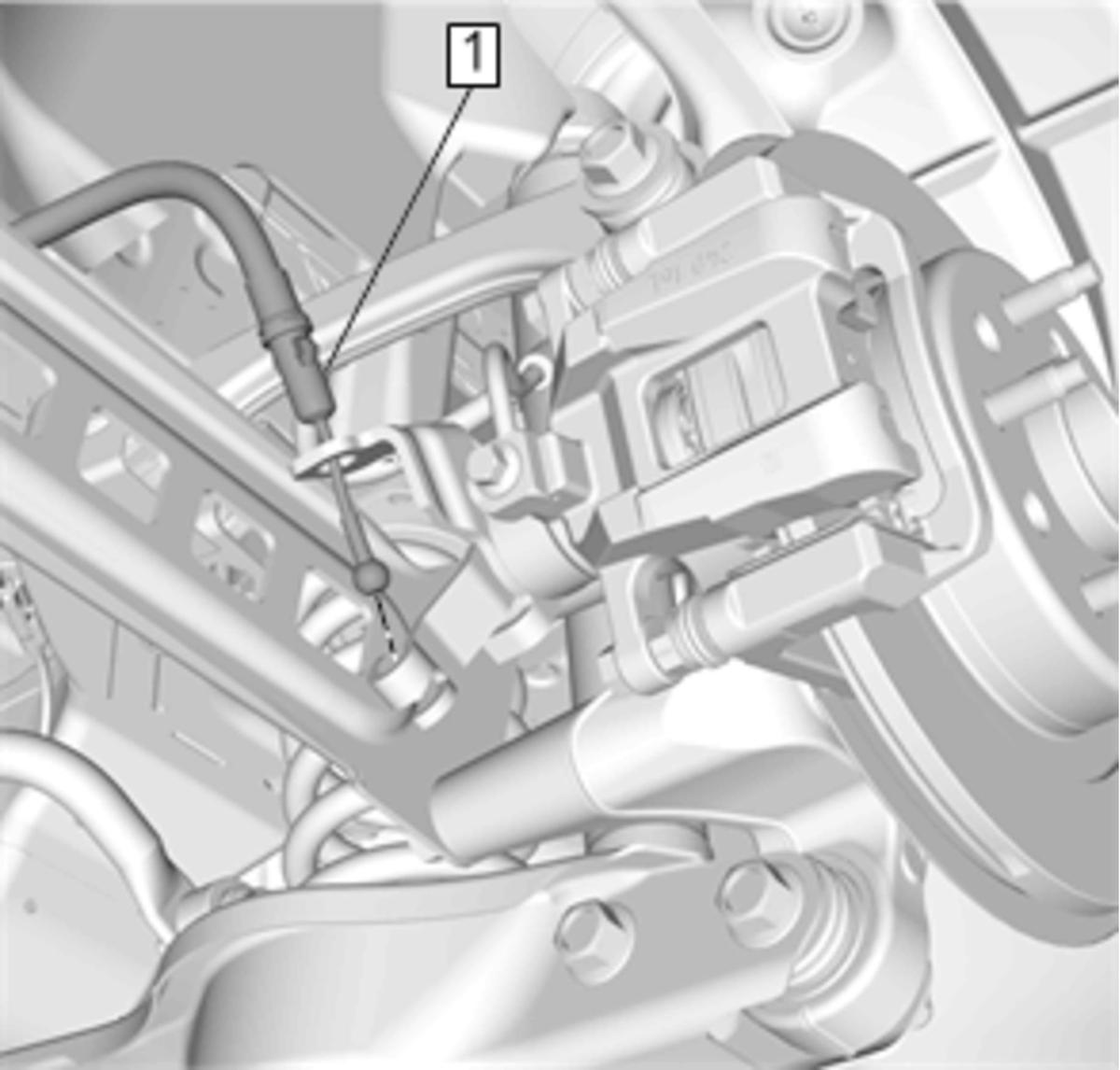

Connect the parking brake cable to the actuator lever on the caliper.
Courtesy of GENERAL MOTORS COMPANY

Parking Brake CableRetainer (1) Secure
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

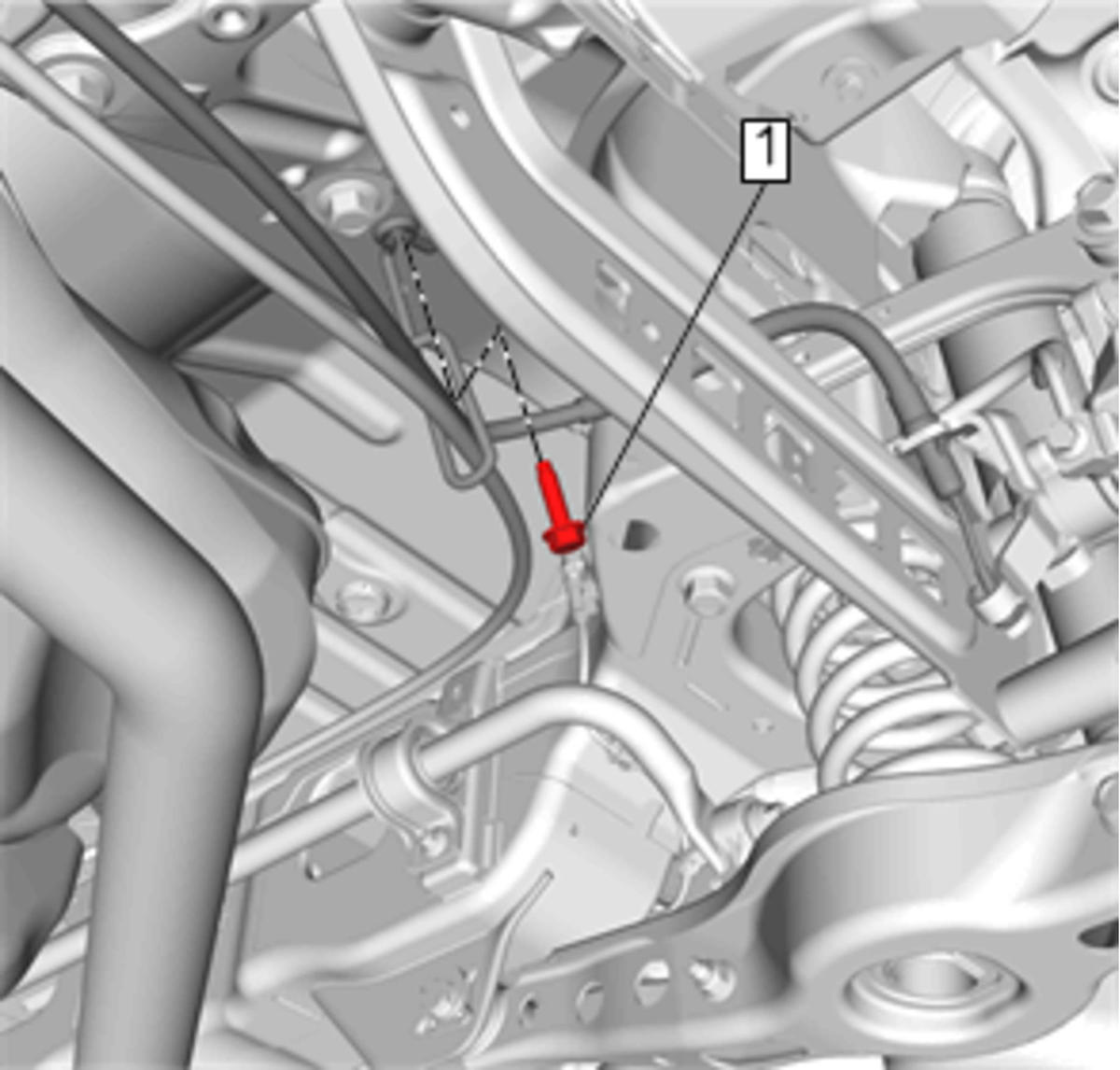

Parking Brake Cable Guide Bolt (1) - Install and tighten22 N.m (16 lb ft)
Courtesy of GENERAL MOTORS COMPANY

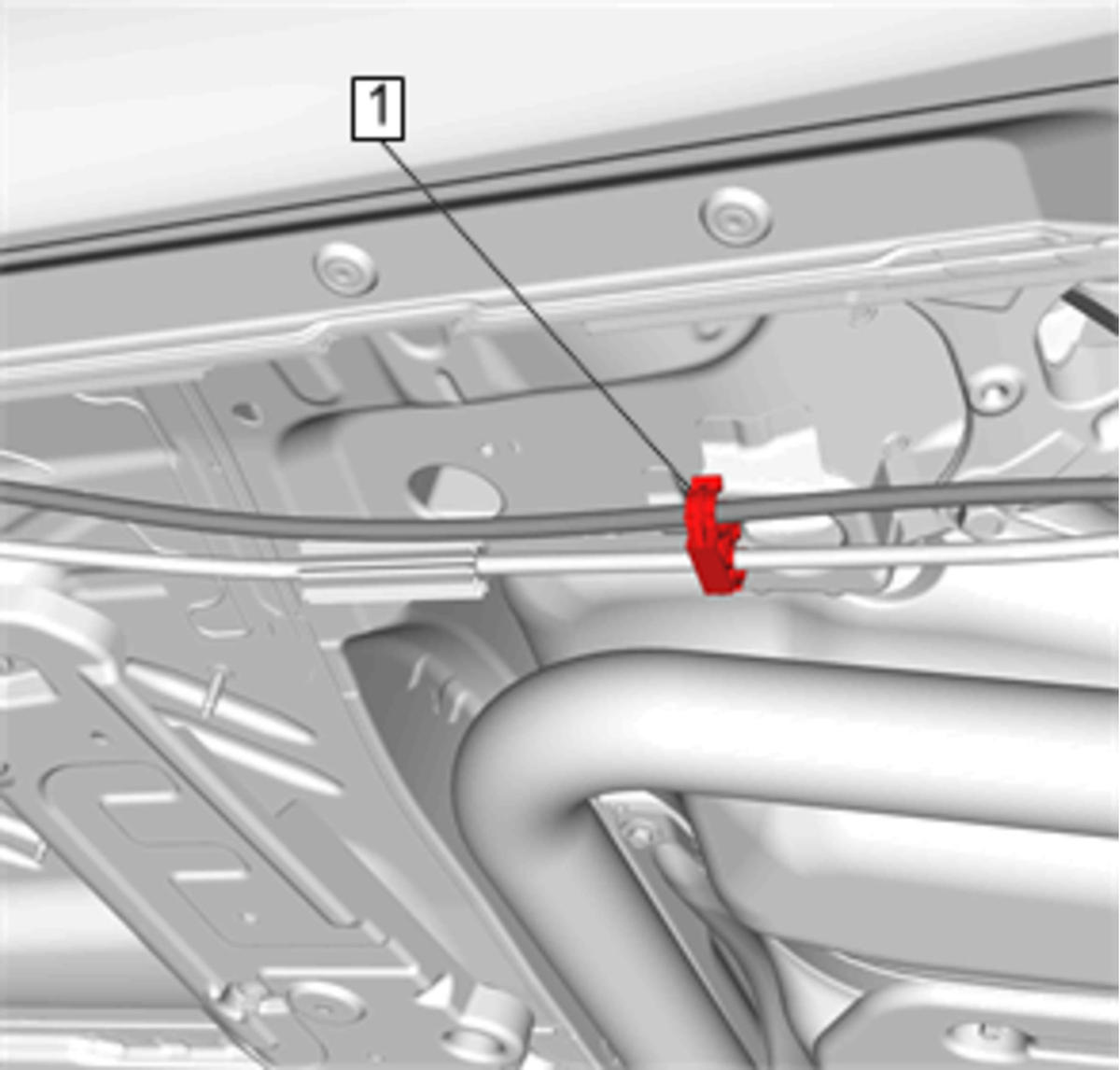

Parking Brake Cable@Clip (1) - Secure
Courtesy of GENERAL MOTORS COMPANY

Parking Brake CableRetainer (1) @ Floor Panel Bracket - Secure
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Pull downward on the parking brake front cable to slacken the parking brake rear cable.

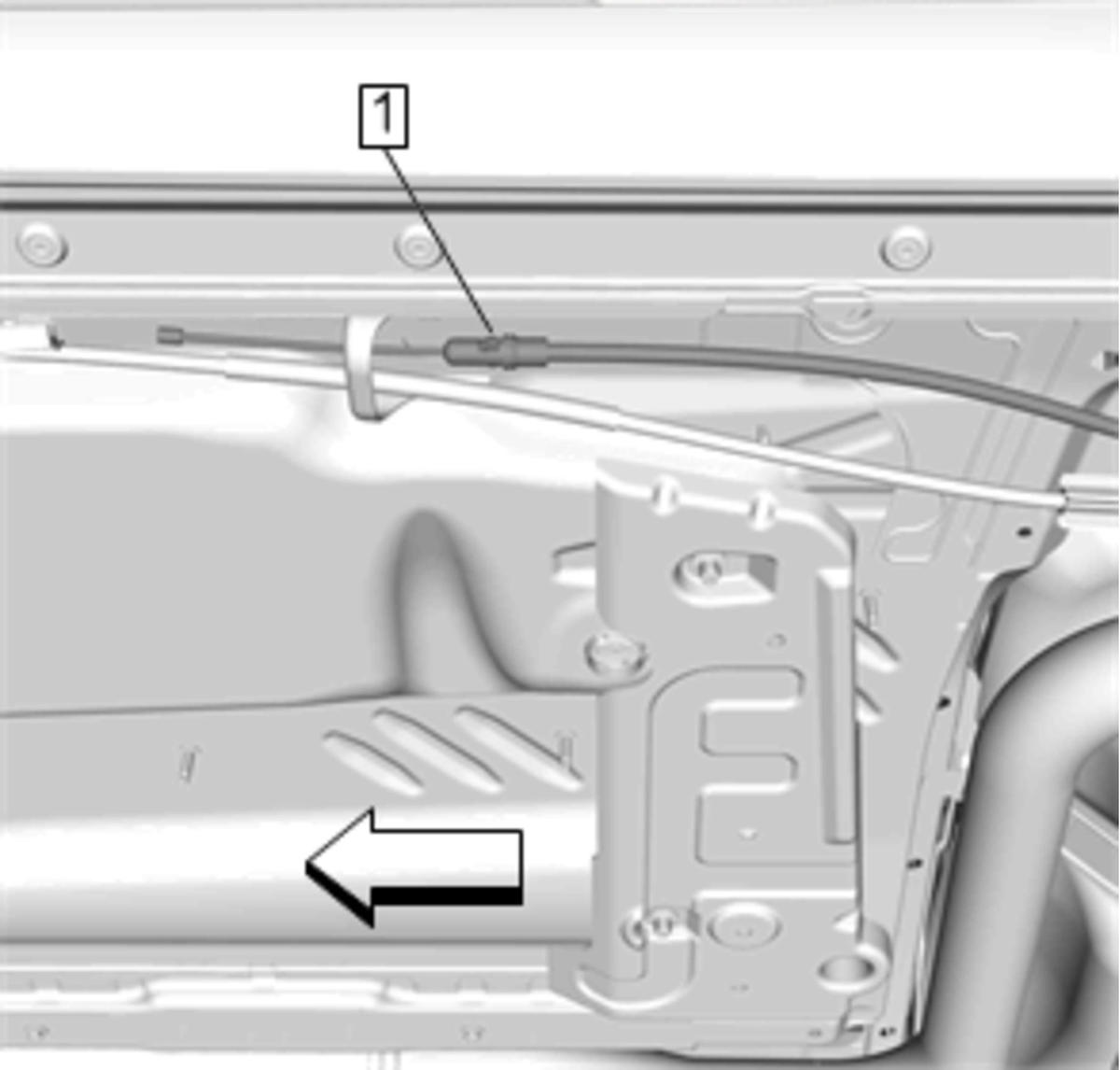

Parking Brake CableFront Cable Connector (1) @Parking Brake Cable Rear - Connect
Fully apply and release the parking brake three times to set the parking brake cable tension.
Inspect the parking brake for proper operation.
