Removal Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Parking Brake Lever Replacement - Remove
Courtesy of GENERAL MOTORS COMPANY

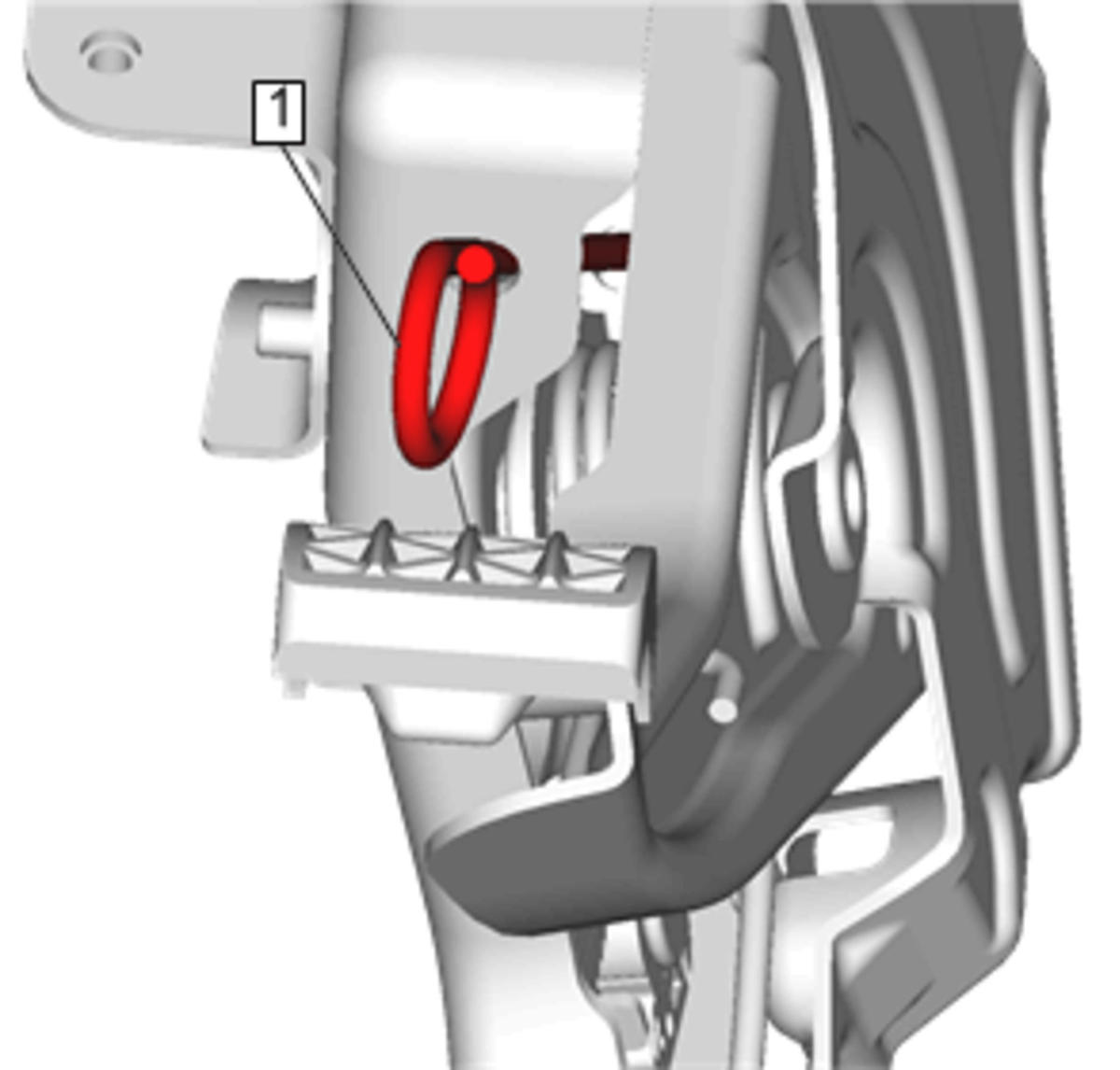

Insert an appropriate tool (1) through the parking brake lever bracket and into the parking brake cable drum.
Courtesy of GENERAL MOTORS COMPANY

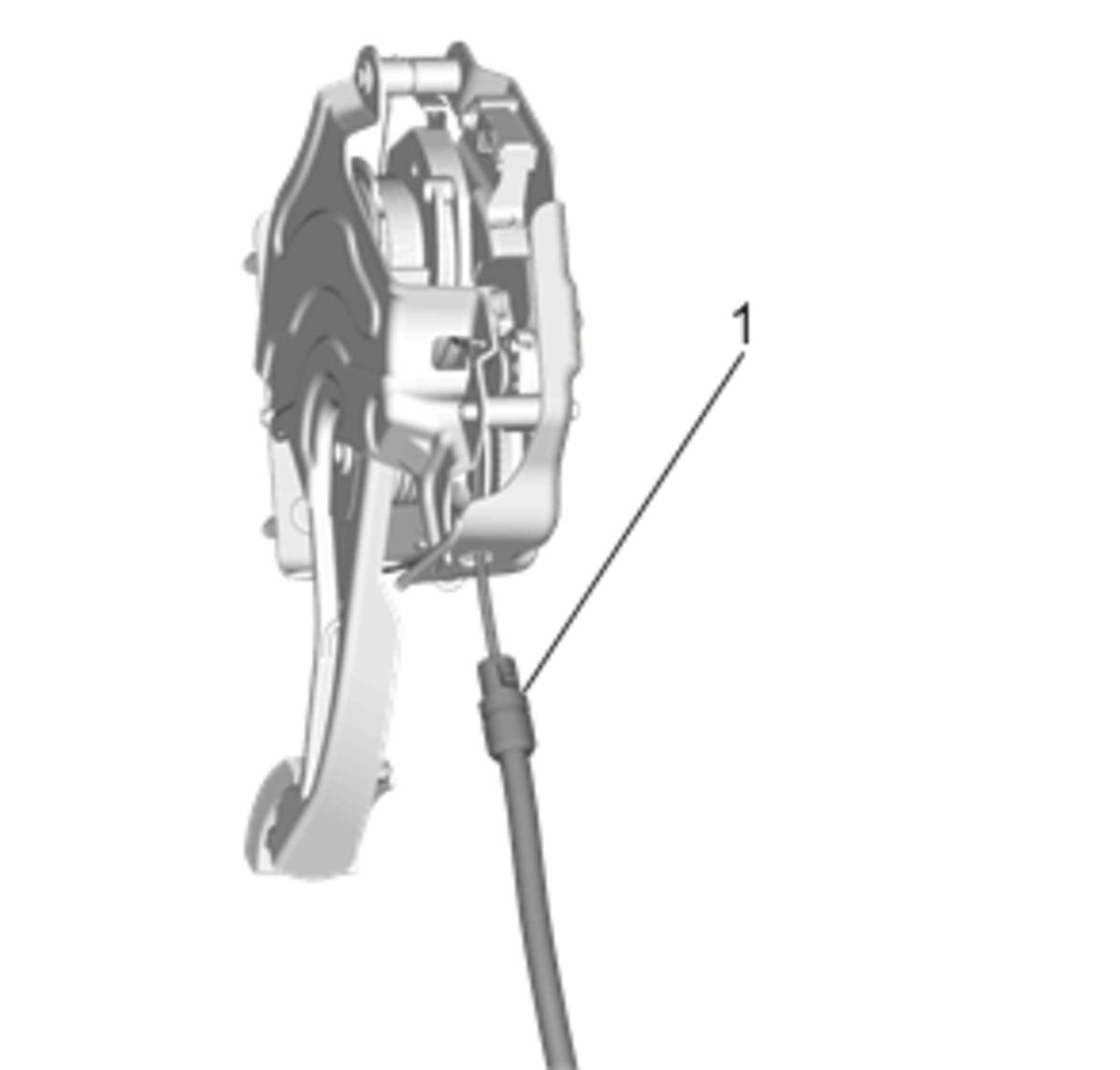

Parking Brake Cable (1) @ Parking Brake Cable Drum - Remove
Courtesy of GENERAL MOTORS COMPANY

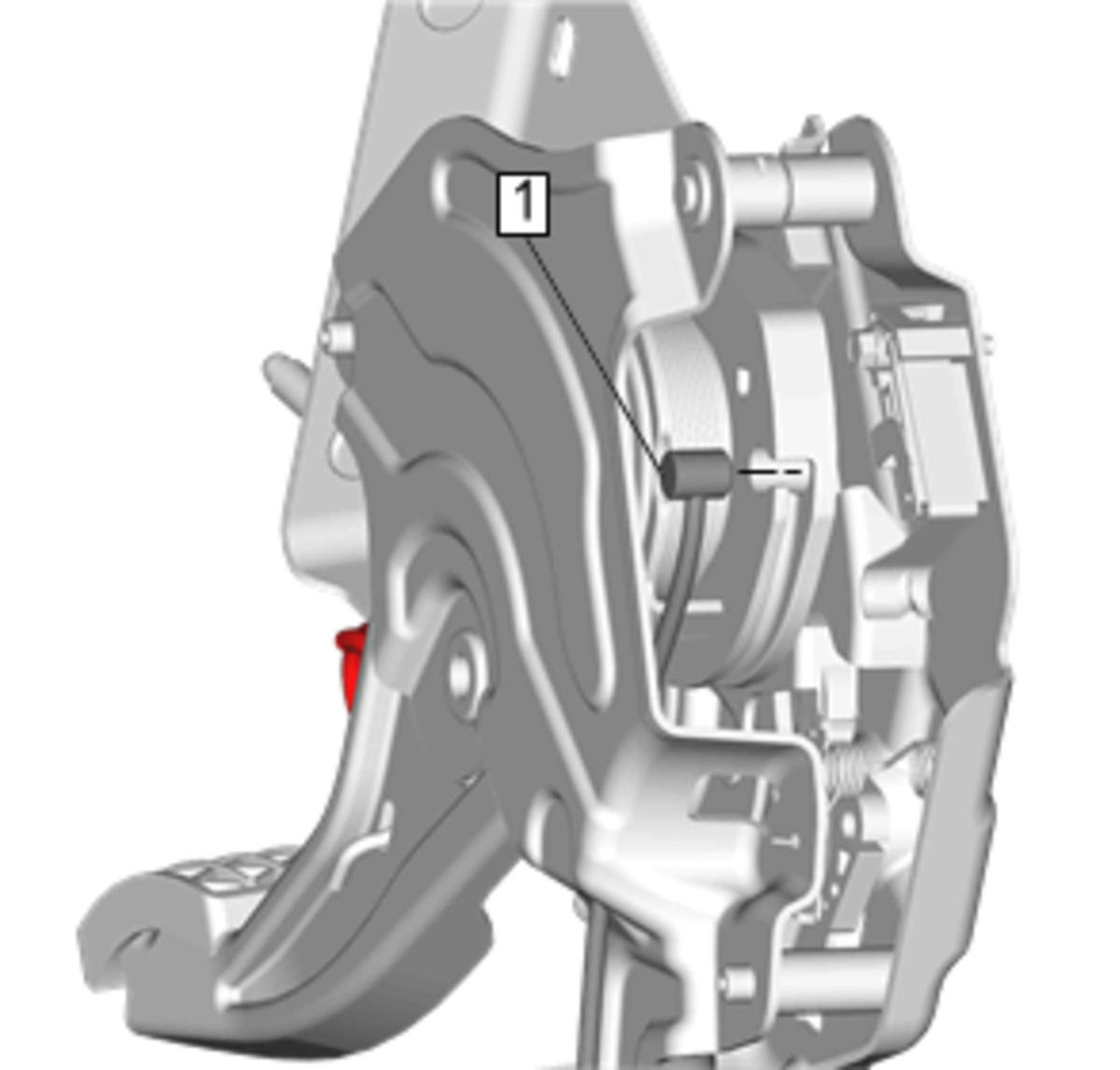

Parking Brake CableRetainer (1) - Release
Parking Brake Cable - Remove
