Installation Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Parking Brake Actuator Switch Assembly (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

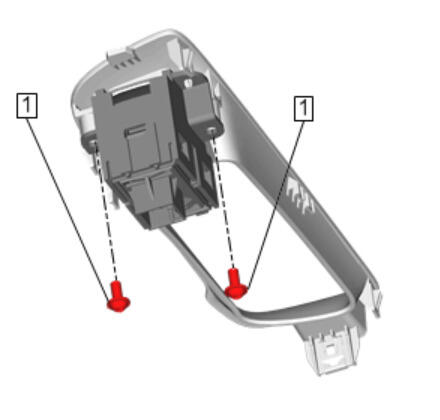

Parking Brake Actuator SwitchBolt (1) - Install and tighten 2.5 N.m (22 lb in) [2x]
Courtesy of GENERAL MOTORS COMPANY

Parking Brake Actuator Switch (1) - Install
Front Floor Console Transmission Shift Opening Bezel Replacement - Install
