X166 Battery Cable Harness to Battery Cable Harness (HP4)
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Battery Cable
- OEM Connector: 33175575
- Service Connector: Service by Harness - See Part Catalog

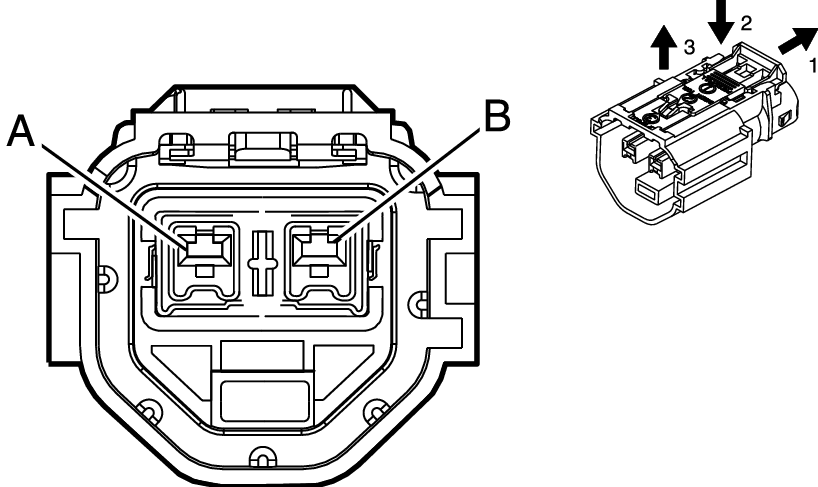

- Description: 2-Way F 2.8 High Voltage Shield Pack Series, Sealed (OG)
|
Connector Part Information
- Harness Type: Battery Cable
- OEM Connector: 33272354
- Service Connector: Service by Harness - See Part Catalog

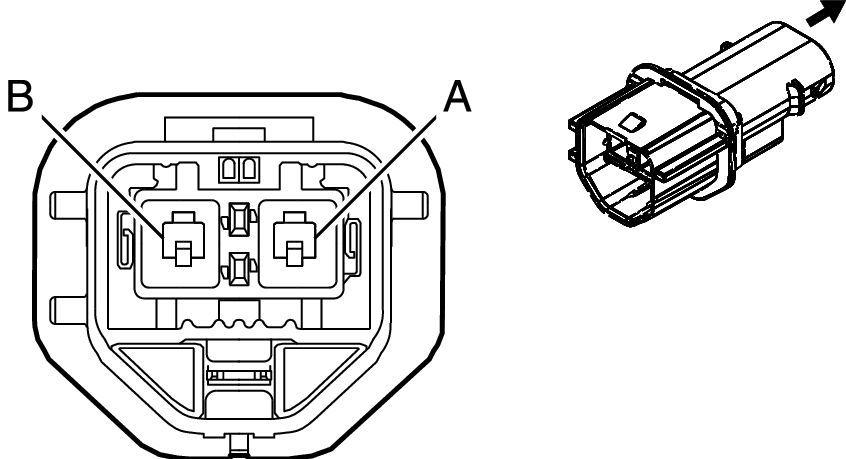

- Description: 2-Way M High Voltage Shield Pack Series, Sealed (OG)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-35 (VT) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-5 (PU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| A |
5 |
OG |
3974 |
I |
- |
High Voltage Battery 5 (+) |
A |
5 |
OG |
3974 |
II |
- |
| B |
5 |
OG |
3973 |
I |
- |
High Voltage Battery 5 (-) |
B |
5 |
OG |
3973 |
II |
- |
