X119 Body Harness to Ambient Air Temp Sensor Harness (VRI/MWI)
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

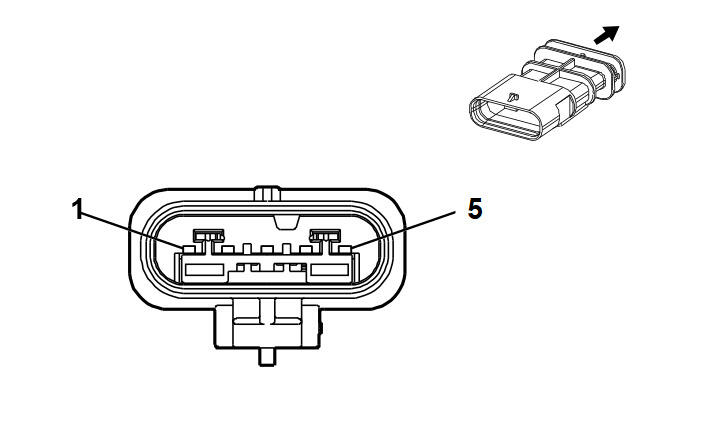

 Courtesy of GENERAL MOTORS COMPANY
|

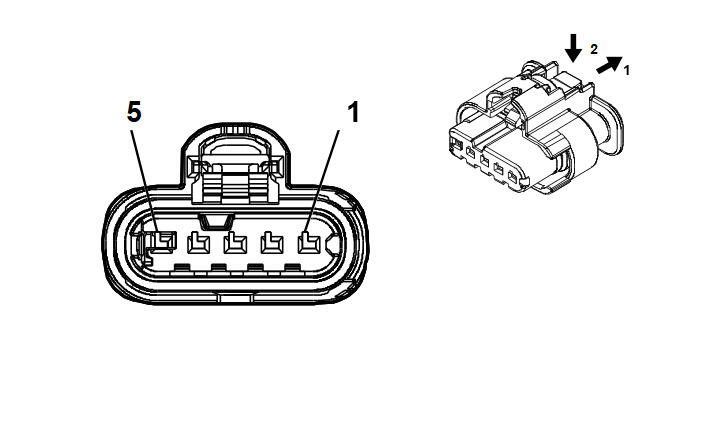

 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 33368851
- Service Connector: 19371191
- Description: 5-Way F 1.2 MCON-CB Series, Sealed (BK)
|
Connector Part Information
- Harness Type: Ambient Air Temp Sensor
- OEM Connector: 33356158
- Service Connector: Service by Harness - See Part Catalog
- Description: 5-Way M 1.2 MCON-CB Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-16 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-17 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.5 |
BU/GY |
636 |
I |
- |
Outside Ambient Air Temperature Sensor Signal |
1 |
0.5 |
BU/GY |
636 |
II |
- |
| 2 |
0.5 |
BK/BU |
61 |
I |
- |
Outside Ambient Temperature Sensor Low Reference |
2 |
0.5 |
BK/BU |
61 |
II |
- |
| 3 |
0.5 |
VT/BU |
5705 |
I |
- |
Powertrain Main Relay Fused Control 6 |
3 |
0.5 |
VT/BU |
5705 |
II |
- |
| 4 |
0.5 |
GN/VT |
4621 |
I |
- |
Local Interconnect Network Serial Data Bus 21 |
4 |
0.5 |
GN/VT |
4621 |
II |
- |
| 5 |
0.5 |
BK |
1150 |
I |
- |
Ground |
5 |
0.5 |
BK |
1150 |
II |
- |
