Rear Seat Belt Buckle Replacement
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

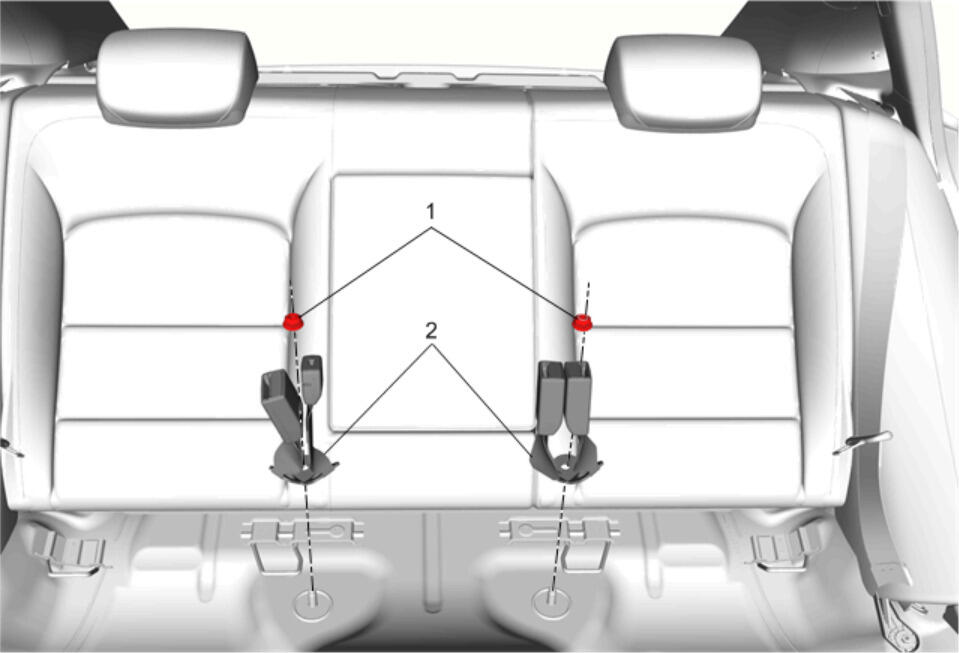

| Callout | Component Name |
|---|---|
| Preliminary Procedure Rear Seat Cushion Removal and Installation . |
|
| 1 | Rear Seat Belt Buckle Nut
CAUTION:
Refer to Fastener Caution . Tighten 45 N.m (33 lb ft) |
| 2 | Rear Seat Belt Buckle Procedure Disconnect the electrical connector. |
