Front Seat Belt Buckle Replacement
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

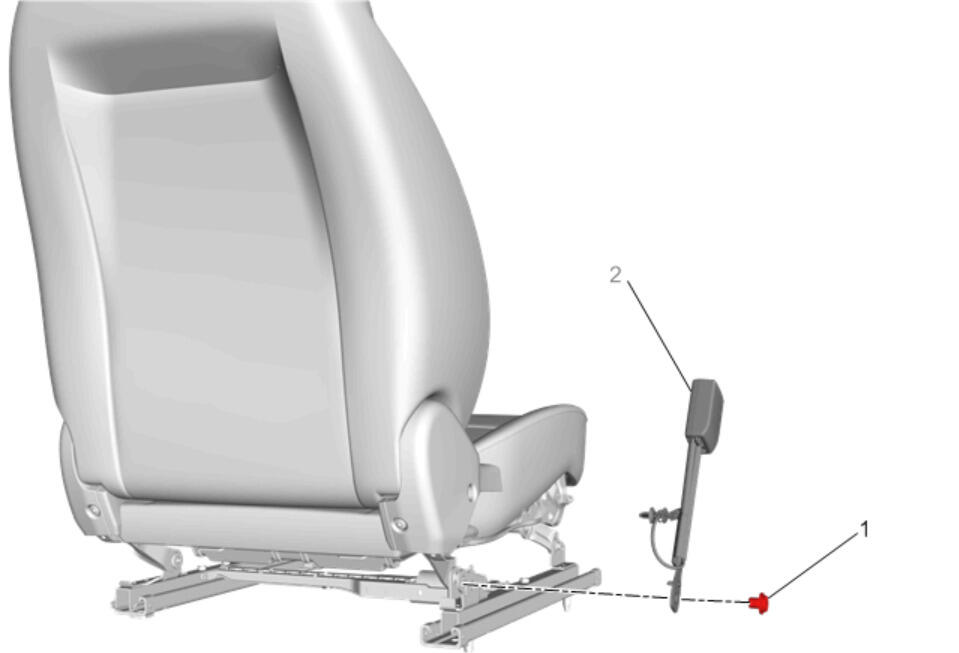

| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Seat Removal and Installation |
|
| 1 | Front Seat Belt Buckle Fastener
CAUTION:
Refer to Fastener Caution . Tighten 45 N.m (33 lb ft) |
| 2 | Front Seat Belt Buckle Procedure Disconnect the electrical connector. |
