Installation Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

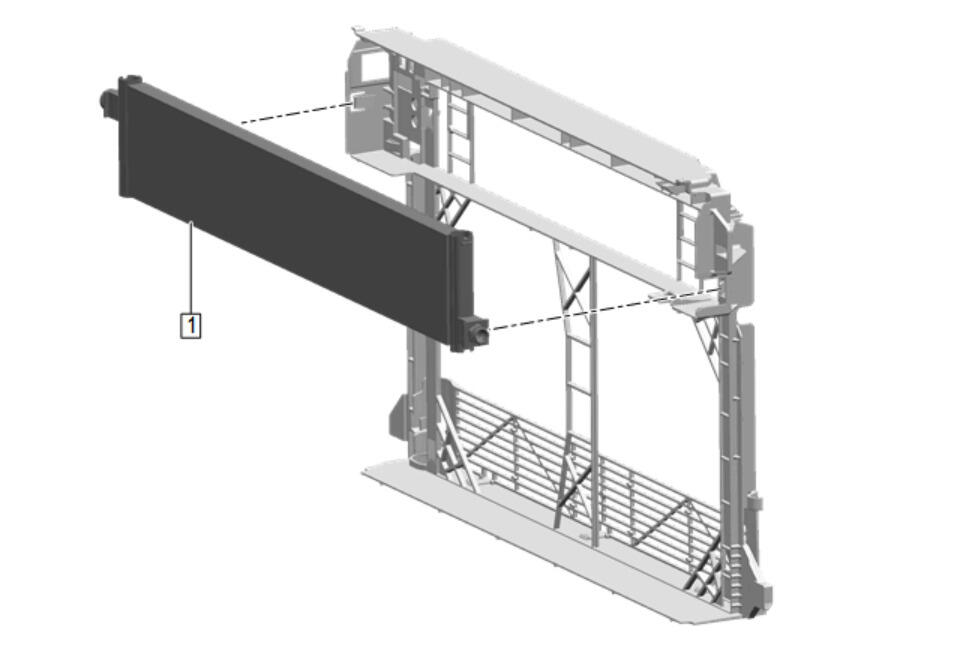

Transmission Fluid Auxiliary Cooler (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Condenser Bracket (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Condenser (1) - Install
Connect the electrical connector at the air conditioning refrigerant pressure sensor.
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Impact Bar (1) - Install - Front Bumper Impact Bar Replacement
Radiator Air Lower Baffle and Deflector (1) - Install - Radiator Air Lower Baffle and Deflector Replacement
Courtesy of GENERAL MOTORS COMPANY

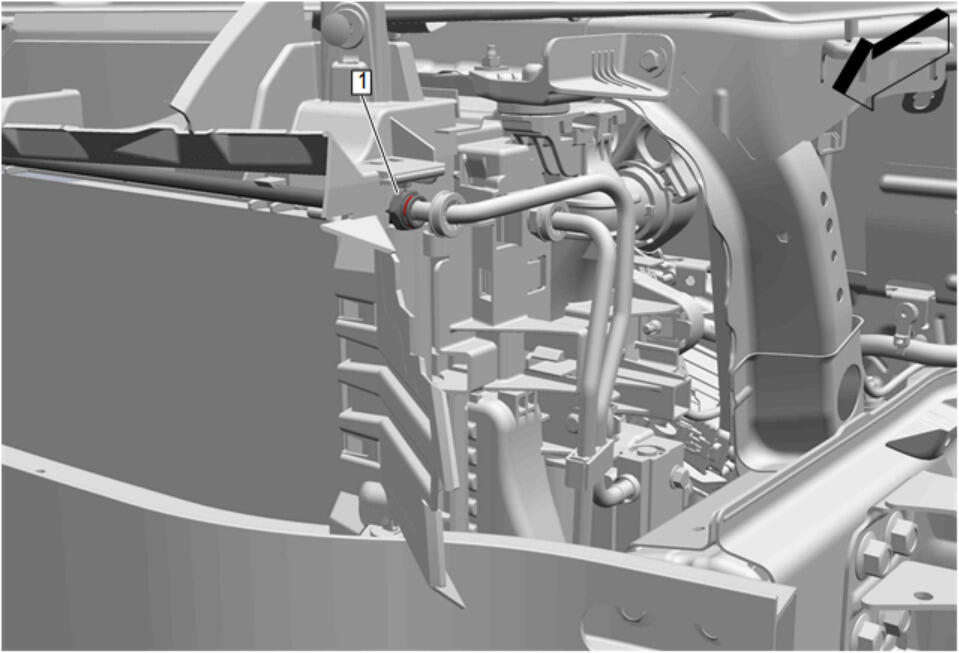

Install the LFV with MRG transmission fluid cooler inlet pipe at air conditioning condenser bracket (1). Transmission Fluid Cooler Inlet Pipe Replacement (LFV with MRG (at the air conditioning condenser bracket)) , or Transmission Fluid Cooler Inlet Pipe Replacement (LFV with MRG (from the transmission to the transmission fluid cooler inlet pipe))
Courtesy of GENERAL MOTORS COMPANY

Transmission Fluid Cooler Inlet and Outlet Pipe (1) - Install - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LFV with MRG)
Remove the drain pan under the vehicle.
Courtesy of GENERAL MOTORS COMPANY

Radiator Air Lower Baffle and Deflector (1) - Install - Radiator Air Upper Baffle and Deflector Replacement (LFV, LTG)
Courtesy of GENERAL MOTORS COMPANY

Radiator Air Upper Baffle and Deflector (1) - Install - Radiator Air Upper Baffle and Deflector Replacement (LFV, LTG)
Fill the transmission to the proper level with NEW transmission fluid. Transmission Fluid Level and Condition Check
Inspect for transmission fluid leaks. Fluid Leak Diagnosis
Courtesy of GENERAL MOTORS COMPANY

Install the front bumper fascia. (1) Front Bumper Fascia Replacement
