Removal Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Front Bumper Fascia - Remove - Front Bumper Fascia Replacement
  2. GM4296605Courtesy of GENERAL MOTORS COMPANY

    Transmission Fluid Cooler Pipe Fitting Retainer (1) @ Transmission Cooler Bypass Valve - Remove - Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection

    3. NOTE:

    Cover or plug all open transmission fluid cooler pipe connection points to help avoid any accidental contamination.

  3. Transmission Fluid Cooler Outlet Pipe (2) @ Transmission Cooler Bypass Valve - Remove
  4. Transmission Fluid Cooler Pipe Fitting Retainer (3) @ Transmission Cooler Bypass Valve - Remove - Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection
    5. NOTE:

    Cover or plug all open transmission fluid cooler pipe connection points to help avoid any accidental contamination.

  5. Transmission Fluid Cooler Inlet Pipe (4) @ Transmission Cooler Bypass Valve - Remove
  6. GM4296610Courtesy of GENERAL MOTORS COMPANY

    Transmission Fluid Cooler Pipe Fitting Retainer (1) @ Transmission Cooler Bypass Valve - Remove - Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection

    7. NOTE:

    Cover or plug all open transmission fluid cooler pipe connection points to help avoid any accidental contamination.

  7. Transmission Fluid Auxiliary Cooler Inlet Pipe (2) @ Transmission Cooler Bypass Valve - Remove
  8. Transmission Fluid Cooler Pipe Fitting Retainer (3) @ Transmission Cooler Bypass Valve - Remove - Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection
    9. NOTE:

    Cover or plug all open transmission fluid cooler pipe connection points to help avoid any accidental contamination.

  9. Transmission Fluid Auxiliary Cooler Outlet Pipe (4) @ Transmission Cooler Bypass Valve - Remove

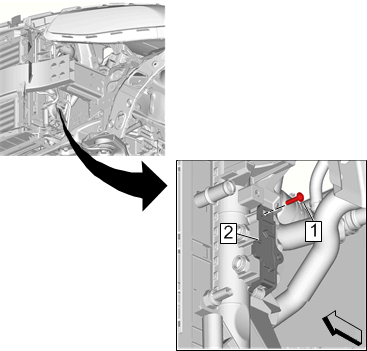

  10. GM4296613Courtesy of GENERAL MOTORS COMPANY

    Transmission Cooler Bypass Valve Bracket Bolt (1) - Remove

  11. Transmission Cooler Bypass Valve Bracket (2) - Remove
  12. GM4296616Courtesy of GENERAL MOTORS COMPANY

    Remove the transmission cooler bypass valve (1) from the vehicle.
