Removal Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Steering Linkage Outer Tie Rod - Remove - Steering Linkage Outer Tie Rod Replacement
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Place match marks on the steering linkage inner tie rod nut and the steering linkage inner tie rod.

Steering Linkage Inner Tie Rod Nut (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

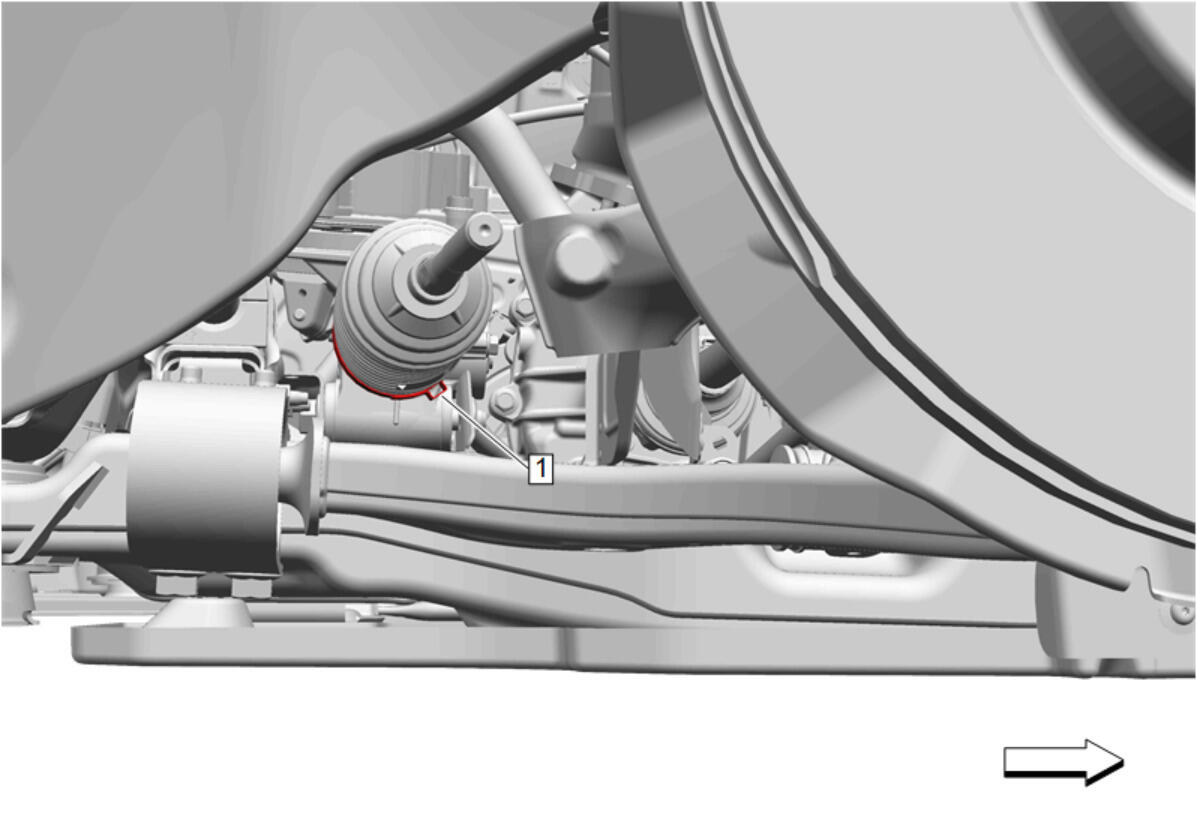

Steering Gear Boot Outer Clamp (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Steering Gear Boot Inner Clamp (1) - Remove and DISCARD
Courtesy of GENERAL MOTORS COMPANY

Steering Gear Boot (1) - Remove
