Installation Procedure
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
Position a NEW steering gear boot inner clamp (1) on the steering gear boot (2).
Steering Gear Boot (1) - Install

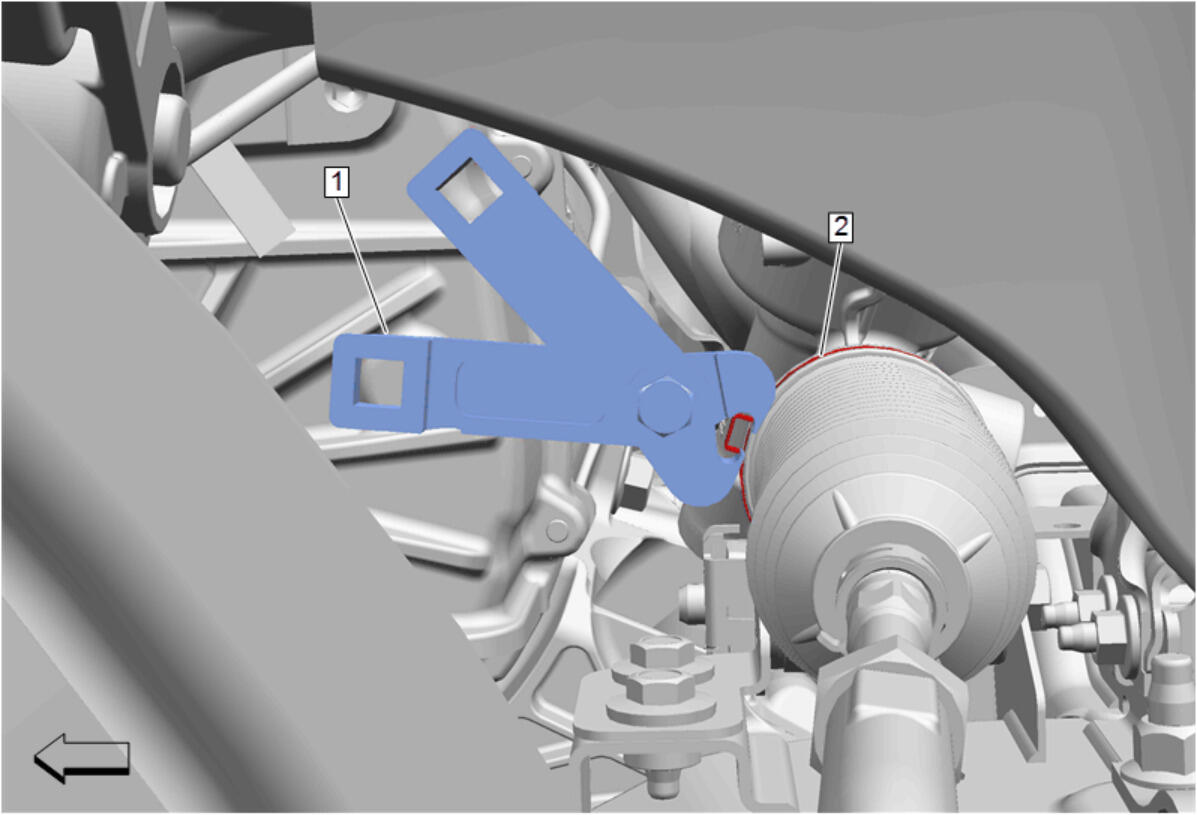

Steering Gear Boot Inner Clamp (2) - Tighten- use DT-35910 Drive Axle Boot Clamp Pliers (1)

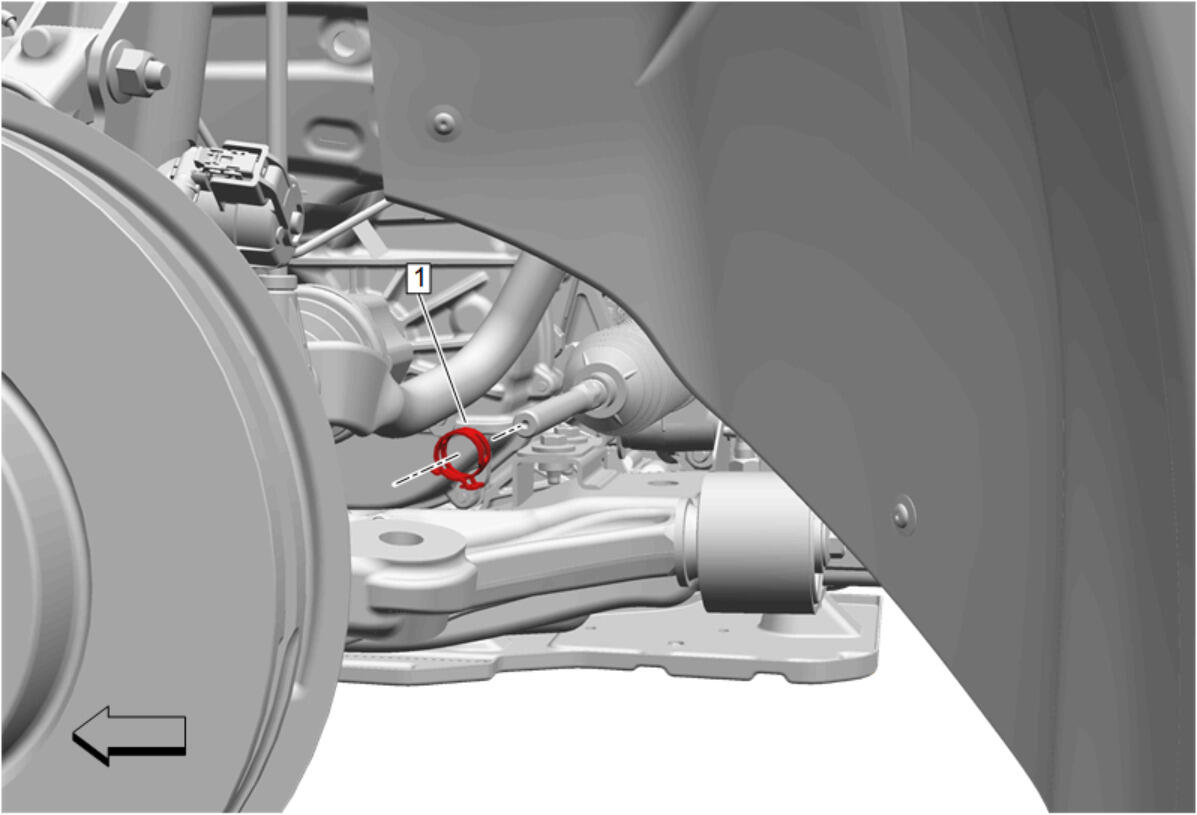

Steering Gear Boot Outer Clamp (1) - Install

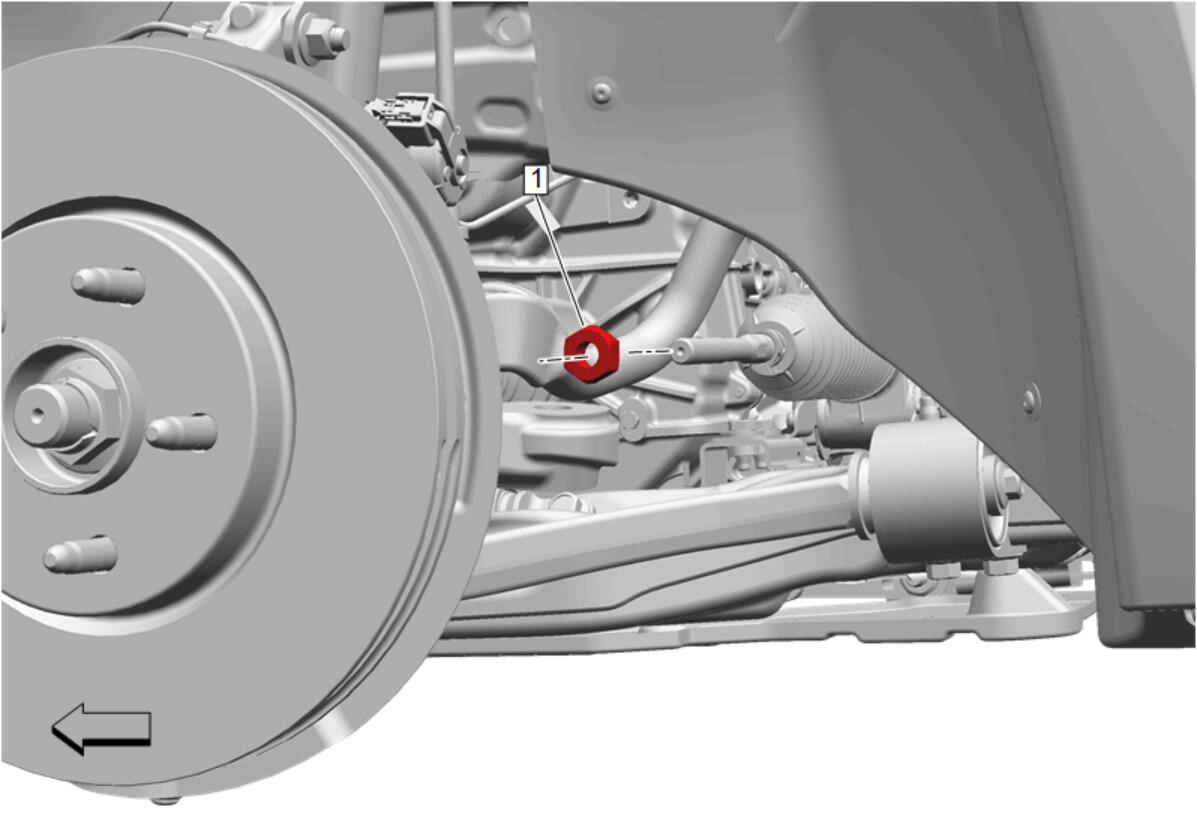

Install the steering linkage inner tie rod nut (1) until aligned with the previously placed matched mark on the steering linkage inner tie rod.
- Steering Linkage Outer Tie Rod - Install - Steering Linkage Outer Tie Rod Replacement
- Measure and adjust the front toe. Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment
