Body Harness Routing - Passenger Compartment - Front Floor (without HP4)

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

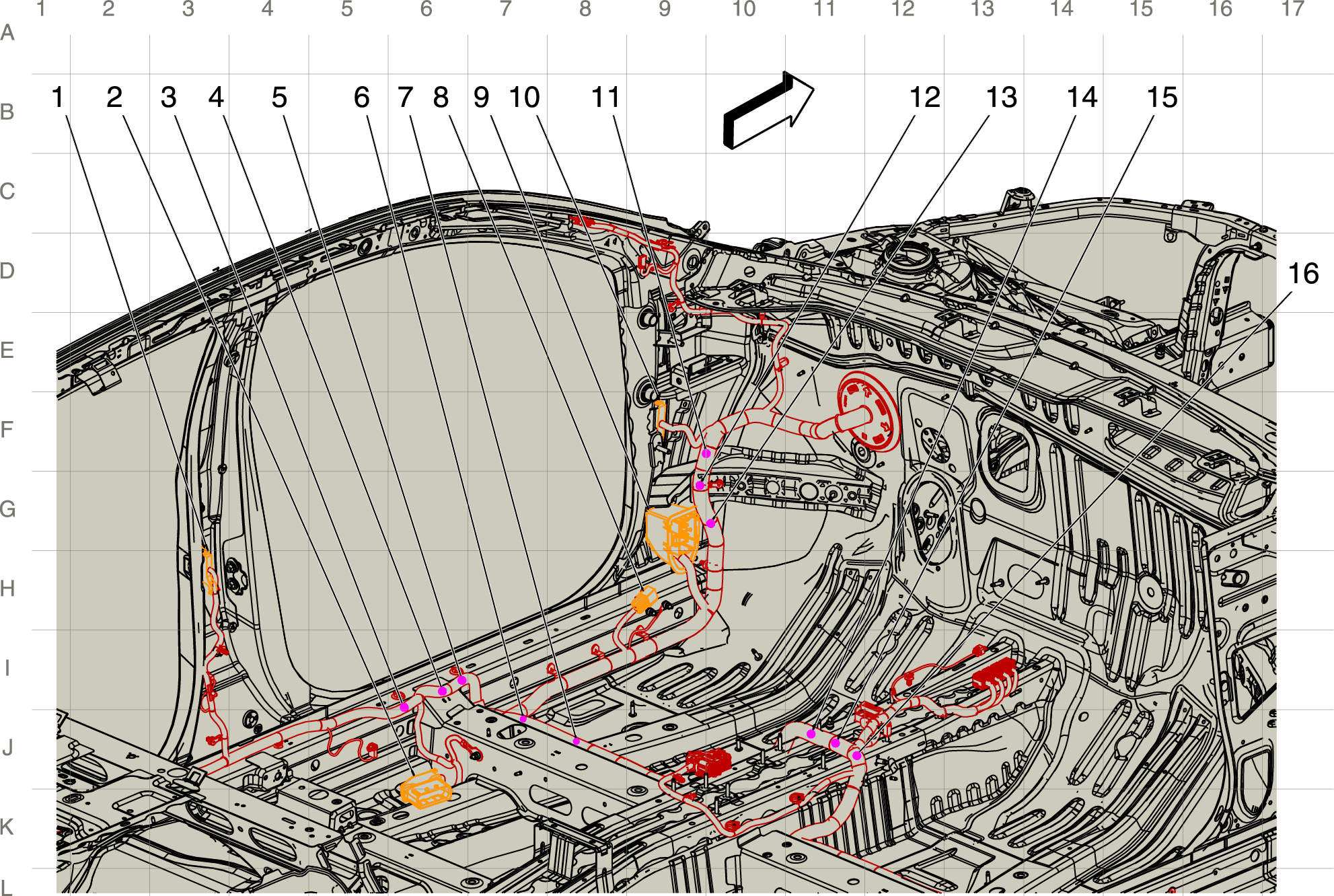

GM5095458Courtesy of GENERAL MOTORS COMPANY
Items
1. X700 Left Rear Door Harness to Body Harness X700 Left Rear Door Harness to Body Harness
2. X310 Driver Seat Harness to Body Harness X310 Driver Seat Harness to Body Harness
3. J325 Body Harness
4. J310 Body Harness
5. J208 Body Harness
6. J308 Body Harness
7. J324 Body Harness
8. X211 Instrument Panel Harness to Body Harness X211 Instrument Panel Harness to Body Harness
9. X210 Instrument Panel Harness to Body Harness X210 Instrument Panel Harness to Body Harness
10. X500 Driver Door Harness to Body Harness X500 Driver Door Harness to Body Harness
11. J201 Body Harness
12. J202 Body Harness
13. J203 Body Harness
14. J209 Body Harness
15. J304 Body Harness
16. J342 Body Harness
