Section 68 (Wiring Systems And Power Management - Wiring Harness Routing And Schematic Wiring Diagrams)
>>
Wiring Harness Routing And Schematic Wiring Diagrams
>>
Power Distribution Wiring Schematics
>>

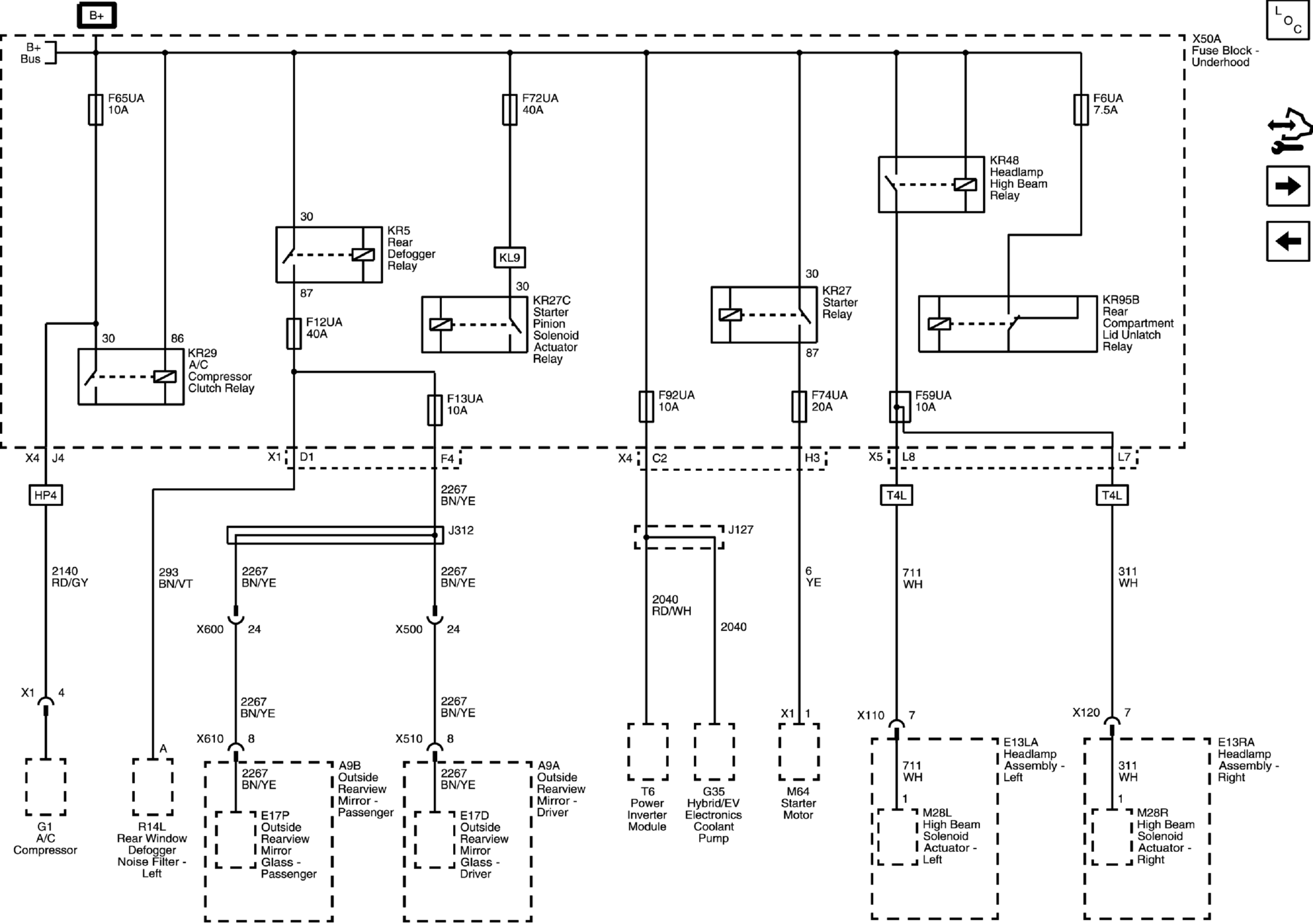

F6UA, F12UA, F13UA, F31UA, F59UA, F65UA, F72UA, and F92UA Fuses
F6UA, F12UA, F13UA, F31UA, F59UA, F65UA, F72UA, and F92UA Fuses
WARNING:
This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY
