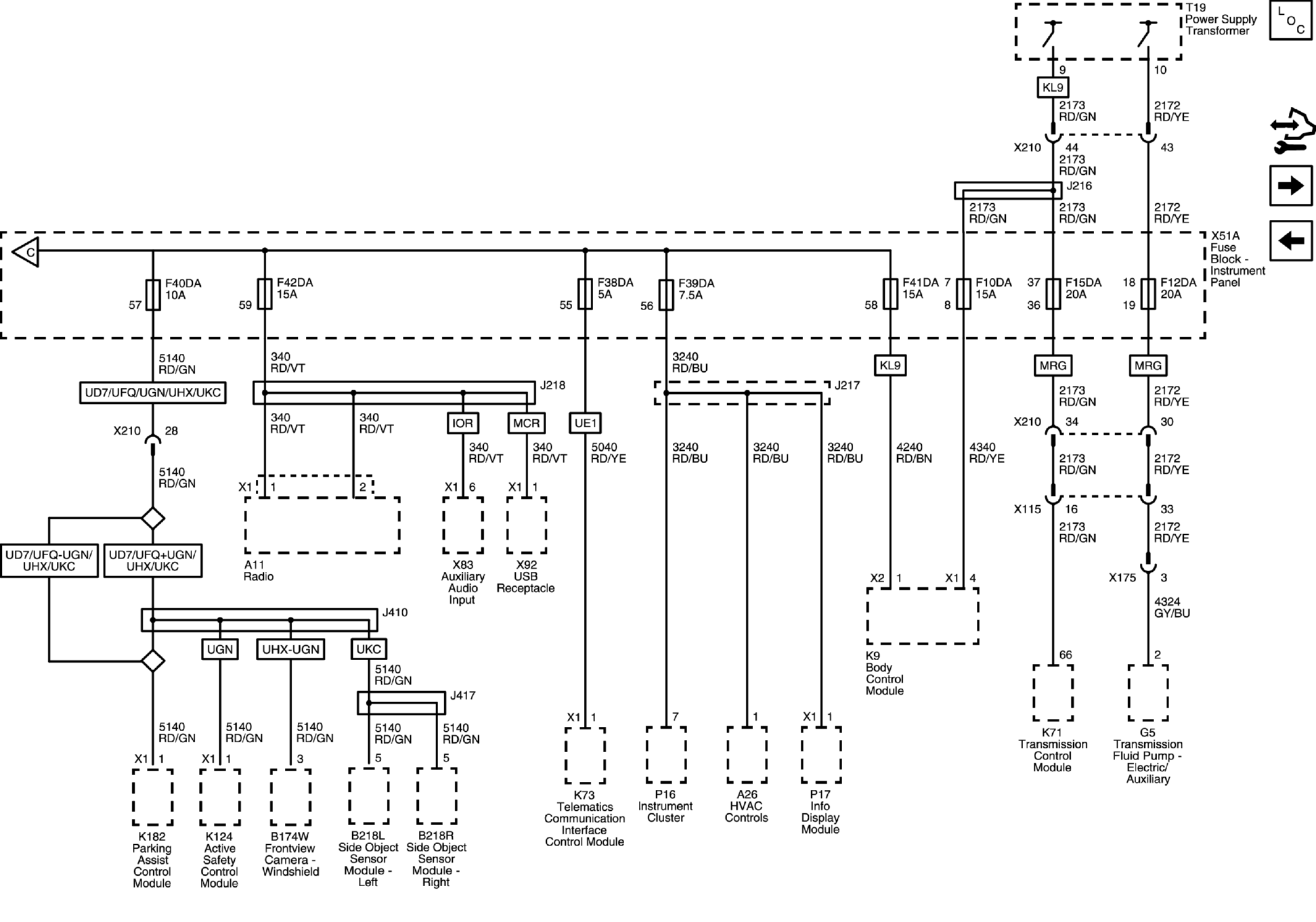

F10DA, F15DA, F38DA, F39DA, F40DA, F41DA, and F42DA Fuses

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
GM4999695Courtesy of GENERAL MOTORS COMPANY
