Rear Side Door Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

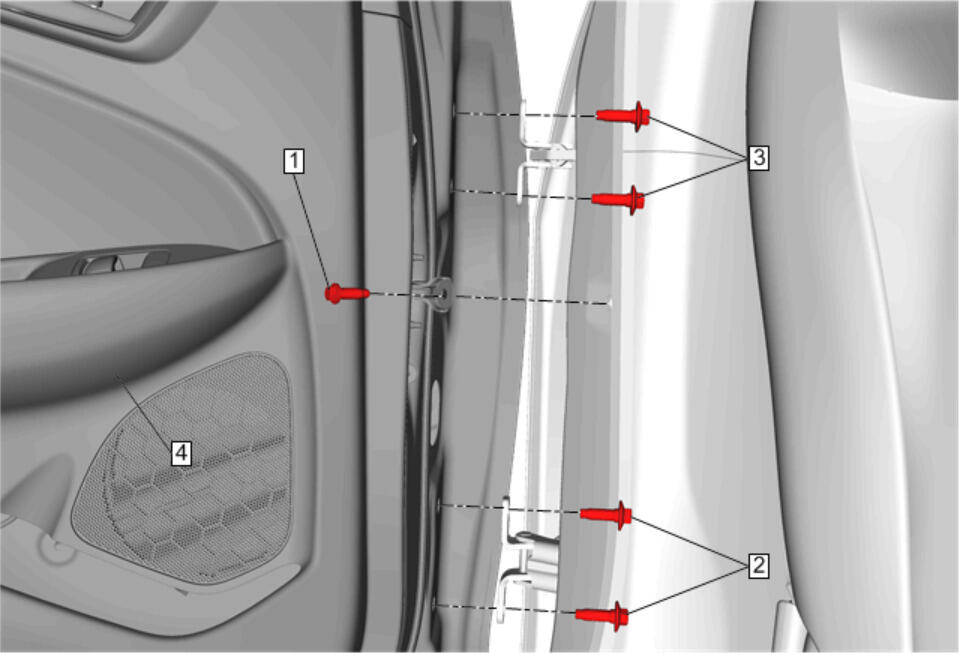

GM4232368Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Mark the location of the hinge before removing the bolts with a grease pencil.
  2. Disconnect the electrical connector.
  3. Support the door before removing the rear side door hinge bolts.
1 Rear Side Door Check Link Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
22 N.m (16 lb ft)
2 Rear Side Door Lower Hinge Bolt [2x]
Tighten
25 N.m (18 lb ft)
3 Rear Side Door Upper Hinge Bolt [2x]
Tighten
25 N.m (18 lb ft)
4 Rear Side Door

Procedure

  1. With the aid of an assistant, remove the door.
  2. Transfer components as necessary.
  3. Rear Side Door Adjustment
