Rear Side Door Rear Auxiliary Weatherstrip Replacement
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
| Callout |
Component Name |
Preliminary Procedure
Open the rear door. |
| 1 |

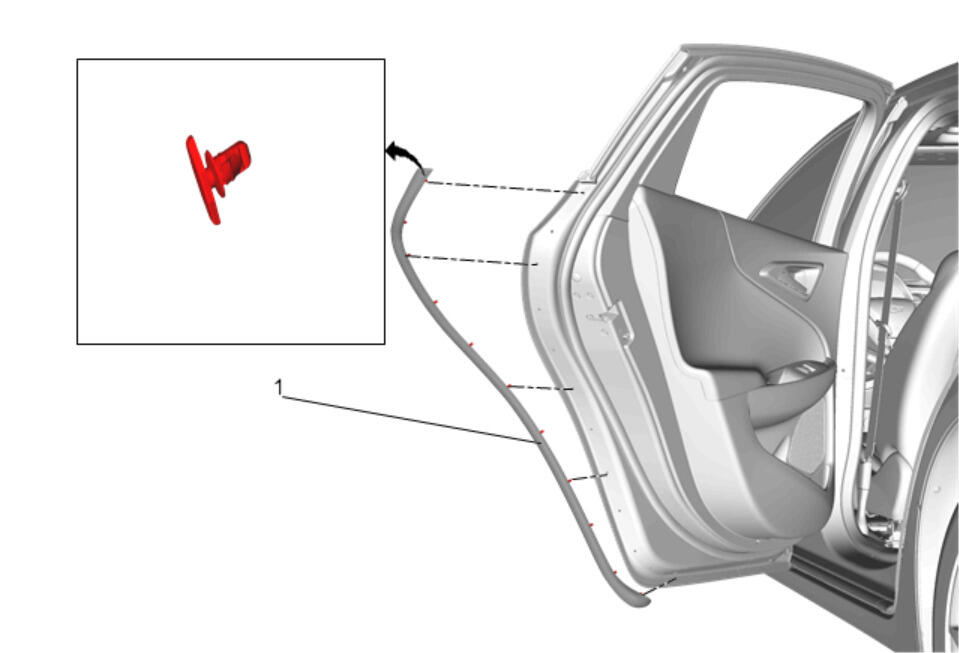

Rear Side Door Rear Auxiliary Weatherstrip Procedure
- Using the appropriate tool, remove the weatherstrip retainers from the door flange.
- Carefully pull the window weatherstrip from the door flange.
|
