Front Side Door Wiring Harness Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

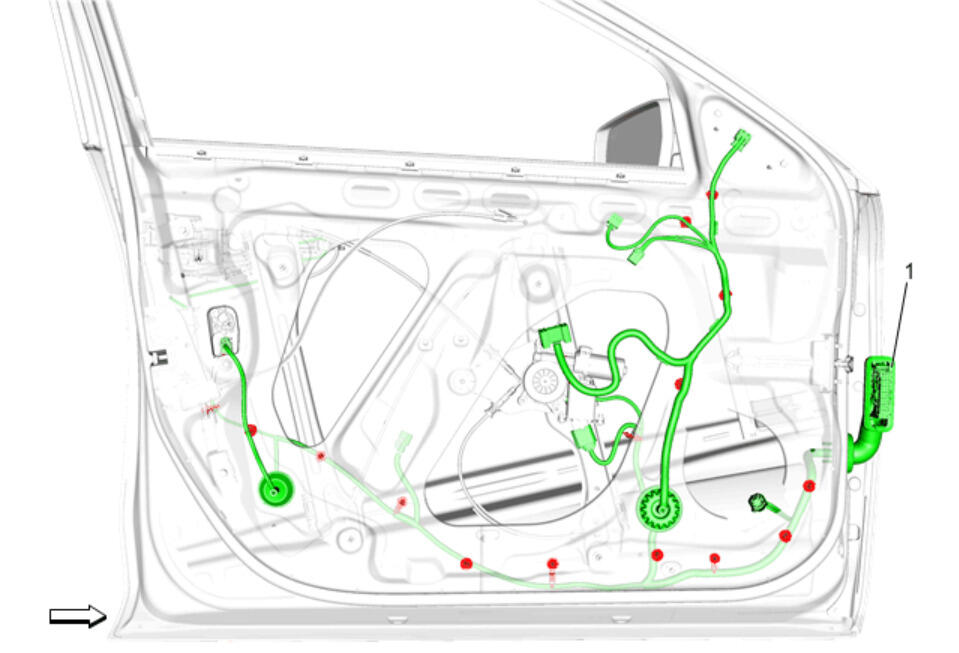

GM4259151Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Front Side Door Trim Replacement
1 Front Side Door Wiring Harness
Procedure
Disconnect the front side door wiring harness electrical connector from the body harness.
