Front Side Door Weatherstrip Replacement - Door Side

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Side Door Check Link Replacement

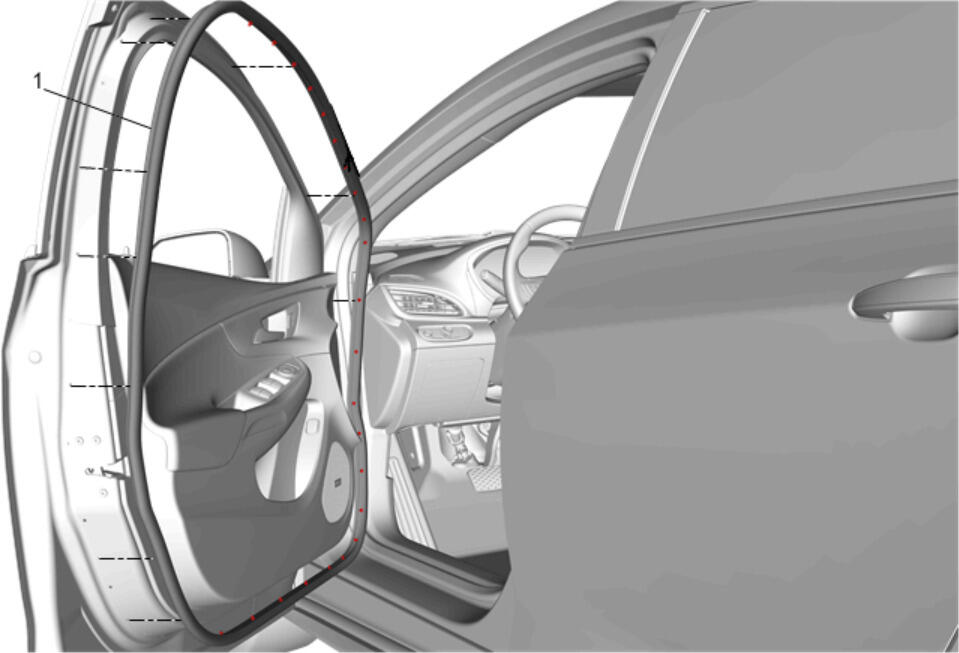

1	Front Side Door Weatherstrip - Door Side Procedure Using the appropriate tool, remove the weatherstrip retainers from around the door flange. Carefully pull the window weatherstrip from the door flange.

Callout

Component Name

Preliminary Procedure
Front Side Door Check Link Replacement

Front Side Door Weatherstrip - Door Side

Procedure

Using the appropriate tool, remove the weatherstrip retainers from around the door flange.
Carefully pull the window weatherstrip from the door flange.
