Removal Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Front Fender Replacement - Right Side - Remove - Front Fender Replacement
  2. Apply masking tape to the edges of the door.
  3. Mark the location of the upper hinge before removing the bolts with a grease pencil.

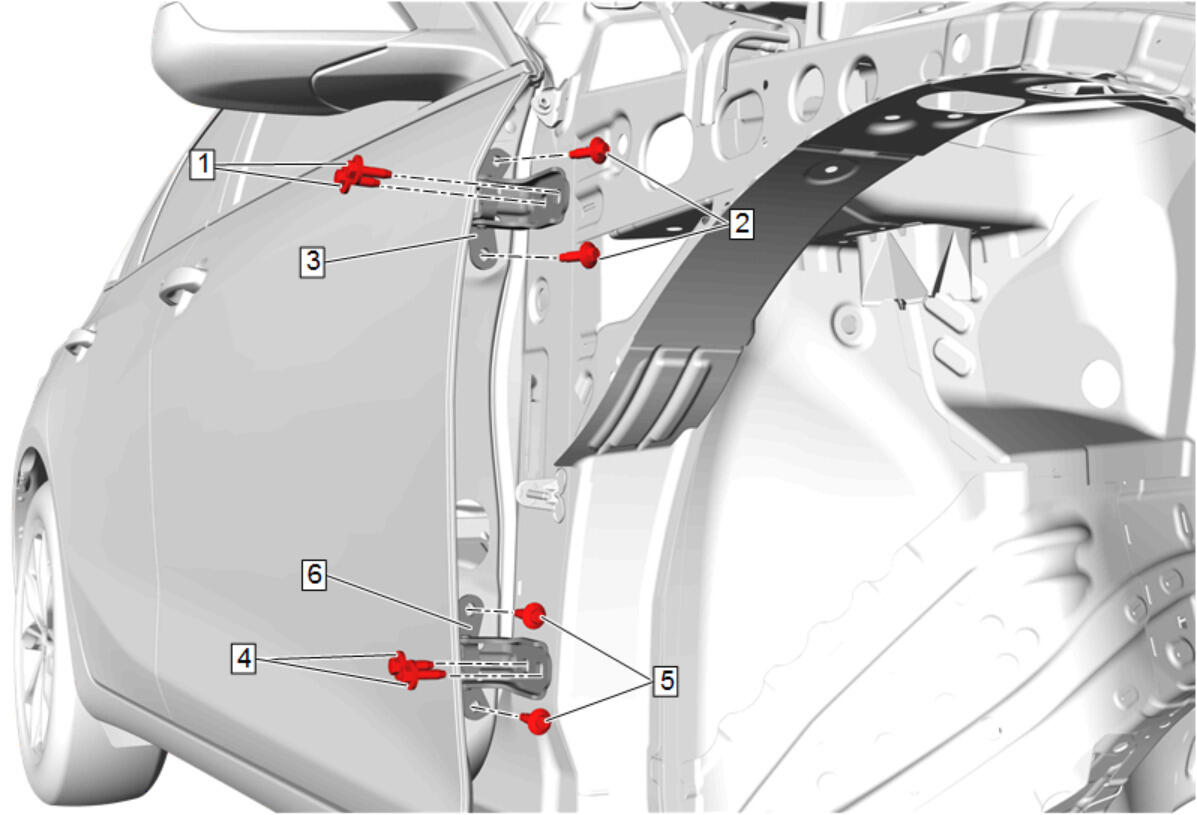

  4. GM5125826Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Keep the door in the closed position and replace only one hinge at a time.

    Front Side Door Hinge Bolt - Body Side (1) - Remove

  5. Front Side Door Hinge Bolt - Door Side (2) - Remove
  6. Front Side Door Upper Hinge (3) - Remove
  7. Mark the location of the lower hinge before removing the bolts with a grease pencil.
  8. Front Side Door Hinge Bolt - Body Side (4) - Remove
  9. Front Side Door Hinge Bolt - Door Side (5) - Remove
  10. Front Side Door Lower Hinge (6) - Remove
