Rear Side Door Window Upper Reveal Molding Replacement
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Open the rear door. |
|

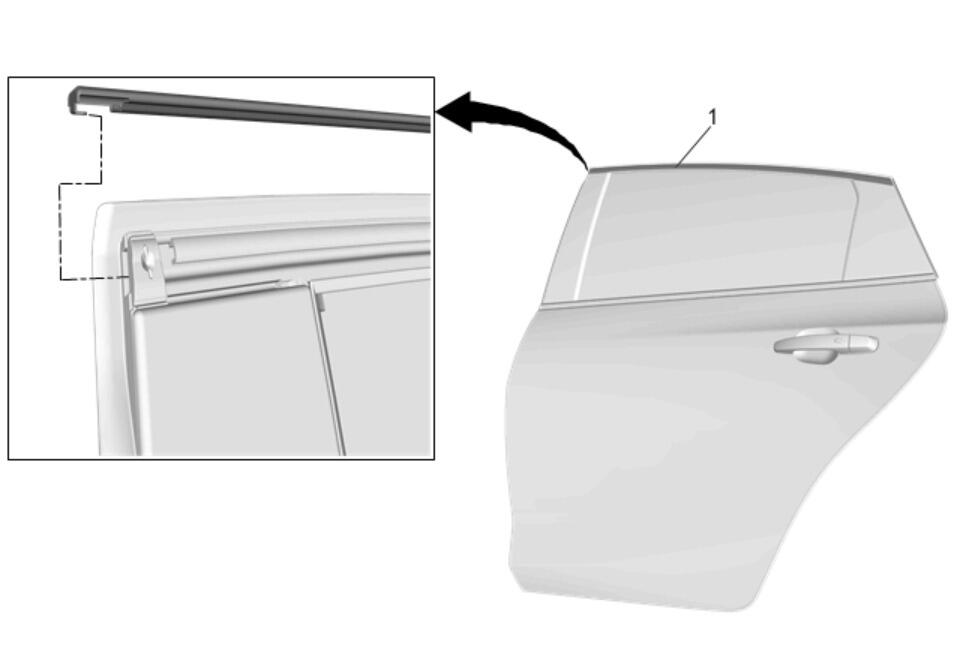

| 1 | Rear Side Door Window Upper Reveal Molding Procedure Using the appropriate tool, release the upper reveal molding starting at the rear working to the front of the rear door. Slide molding forward to release the hook clip from the front of the rear door. |
