Rear Side Door Window Regulator Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

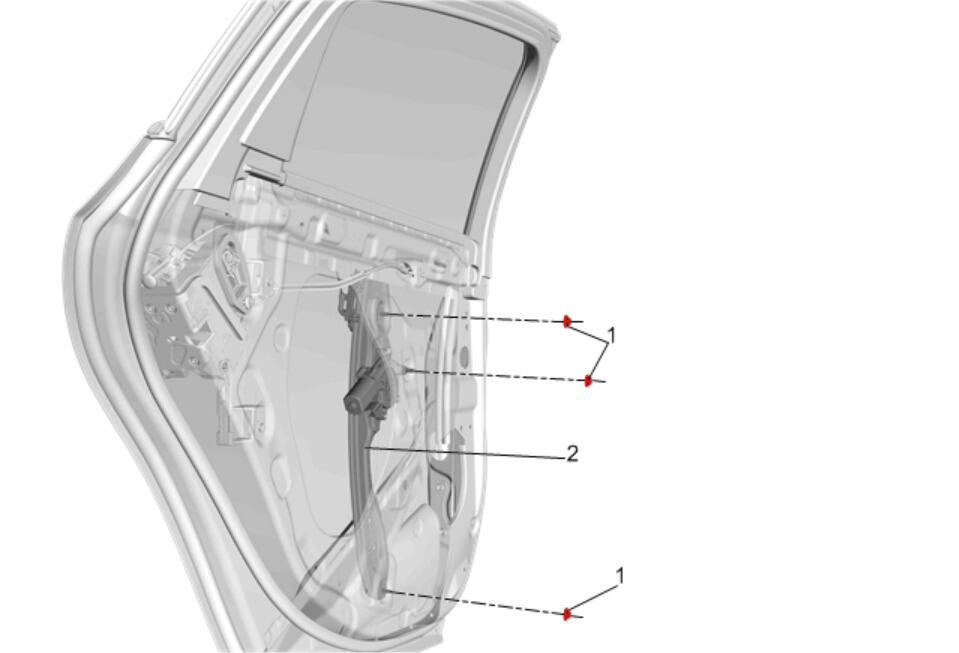

Callout	Component Name
WARNING: Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury. Preliminary Procedures Rear Side Door Trim Replacement Place the rear side door window in the full up position and tape the window to the door frame. Remove the rear side door water deflector.
1	Rear Side Door Window Regulator Nut [3x] CAUTION: Refer to Fastener Caution . Procedure Release the window from the sash retaining clip. Tighten 10 N.m (89 lb in)
2	Rear Side Door Window Regulator Procedure Disconnect the electrical connector. Transfer all parts as necessary. Inspect the window for proper operation, adjust if necessary before installing the door trim.

Callout

Component Name

WARNING:

Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury.

Preliminary Procedures

Rear Side Door Trim Replacement
Place the rear side door window in the full up position and tape the window to the door frame.
Remove the rear side door water deflector.

Rear Side Door Window Regulator Nut [3x]

CAUTION:

Refer to Fastener Caution .

Procedure
Release the window from the sash retaining clip.
Tighten
10 N.m (89 lb in)

Rear Side Door Window Regulator

Procedure

Disconnect the electrical connector.
Transfer all parts as necessary.
Inspect the window for proper operation, adjust if necessary before installing the door trim.
