Rear Side Door Window Regulator Motor Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

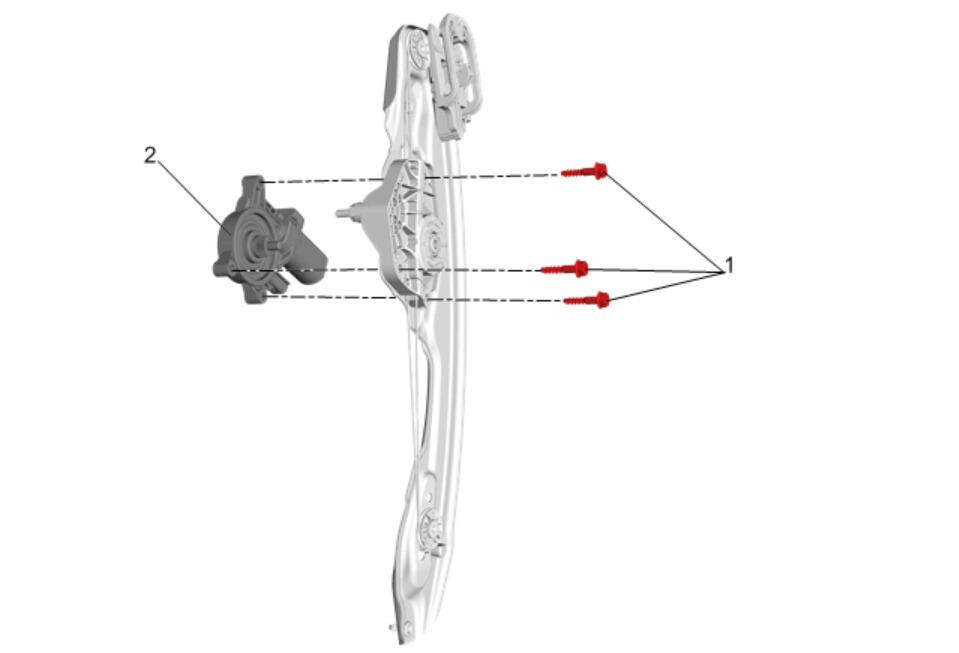

Callout	Component Name
Preliminary Procedures Place the rear side door window in the full up position. Rear Side Door Trim Replacement Rear Side Door Water Deflector - Remove
1	Rear Side Door Window Regulator Motor Screw [3x] CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Rear Side Door Window Regulator Motor Procedure Disconnect the electrical connector. NOTE: Inspect the window for proper operation before installing the door trim.

Callout

Component Name

Preliminary Procedures

Place the rear side door window in the full up position.
Rear Side Door Trim Replacement
Rear Side Door Water Deflector - Remove

Rear Side Door Window Regulator Motor Screw [3x]

CAUTION:

Refer to Fastener Caution .

Tighten
10 N.m (89 lb in)

Rear Side Door Window Regulator Motor
Procedure
Disconnect the electrical connector.

NOTE:

Inspect the window for proper operation before installing the door trim.
