Rear Side Door Window Inner Sealing Strip Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

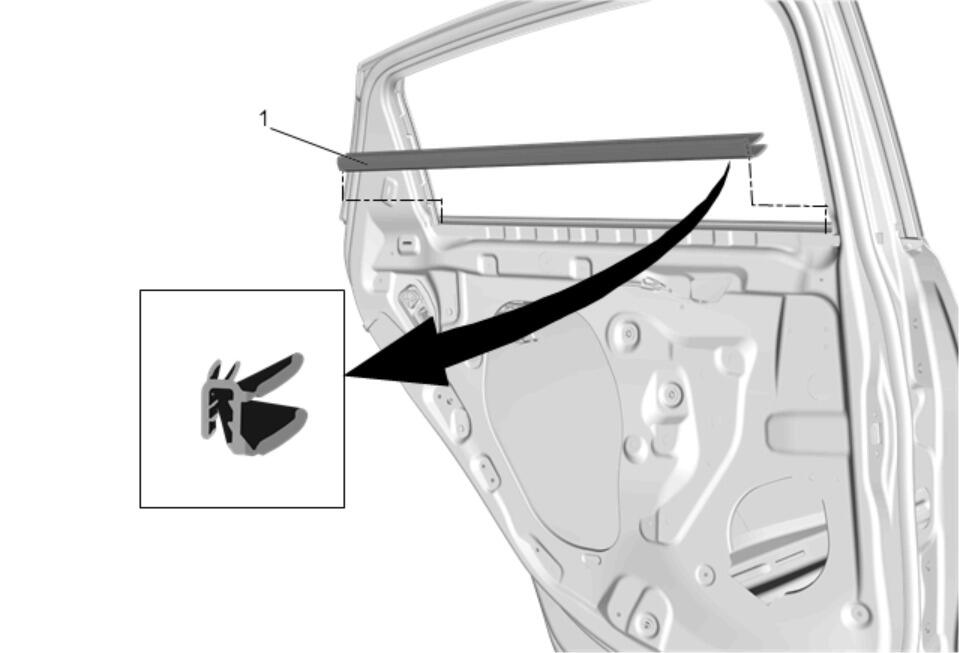

Callout	Component Name
Preliminary Procedures Place the rear door window in the full down position. Rear Side Door Trim Replacement
1	Rear Side Door Window Inner Sealing Strip Procedure Lift the rear side door window inner strip off the pinch-weld flange. Press firmly to insert the rear side door window inner strip back on the door flange. NOTE: Inspect the window for proper operation before installing the door trim.

Callout

Component Name

Preliminary Procedures

Place the rear door window in the full down position.
Rear Side Door Trim Replacement

Rear Side Door Window Inner Sealing Strip

Procedure

Lift the rear side door window inner strip off the pinch-weld flange.
Press firmly to insert the rear side door window inner strip back on the door flange.

NOTE:

Inspect the window for proper operation before installing the door trim.
