Front Side Door Window Inner Sealing Strip Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

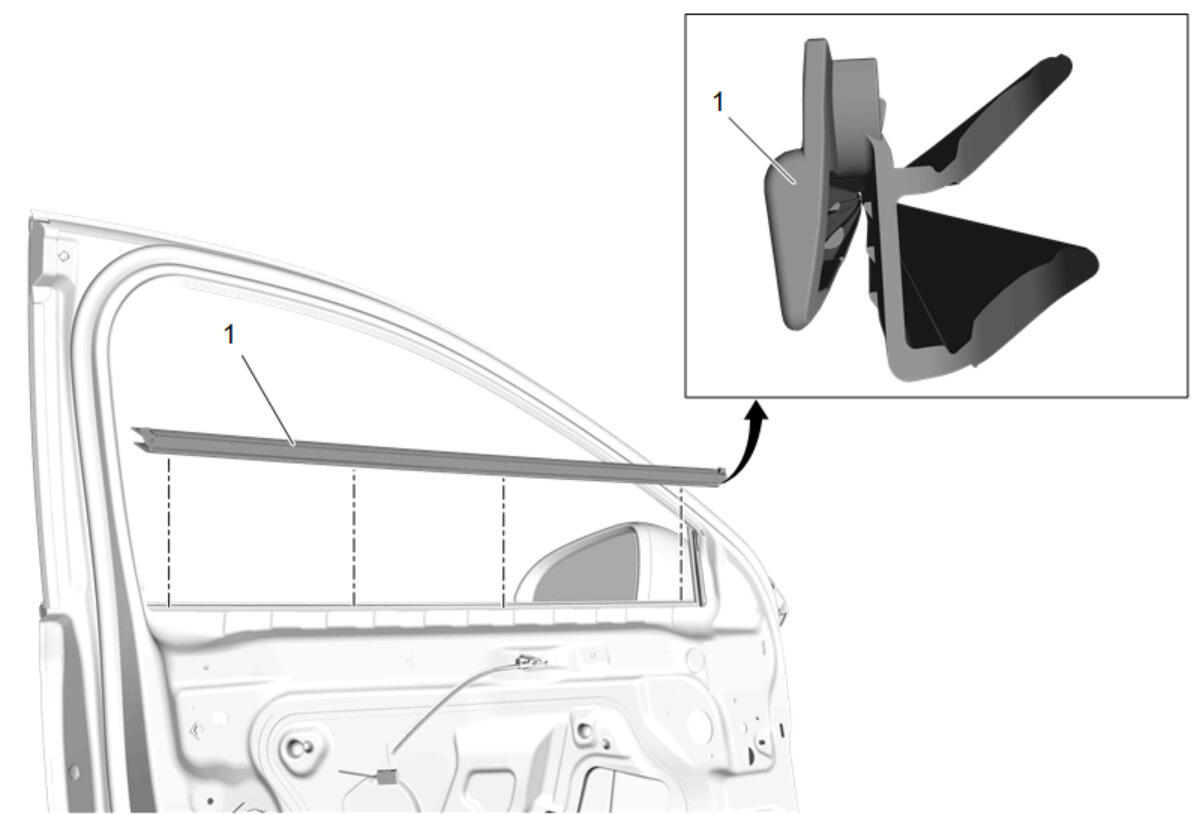

GM4961982Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Place the front door window in the full down position.
  2. Front Side Door Window Garnish Molding Replacement
1 Front Side Door Window Inner Sealing Strip

Procedure

  1. Lift the front side door window inner strip off the pinch-weld flange.
  2. Press firmly to insert the front side door window inner strip back on the door flange.
NOTE:

Inspect the window for proper operation before installing the door trim.
