Installation Procedure
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

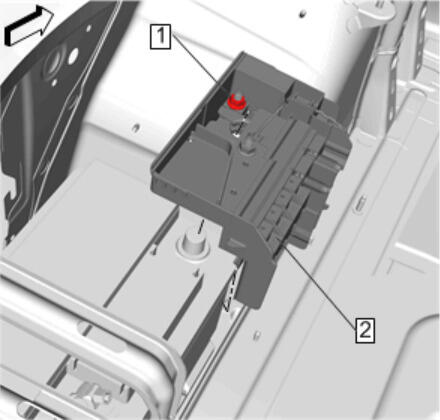

Battery Distribution Engine Compartment Fuse Block (2) - Install
- Positive Battery Clamp Nut. (1) - Tighten9N.m (80 lb in)

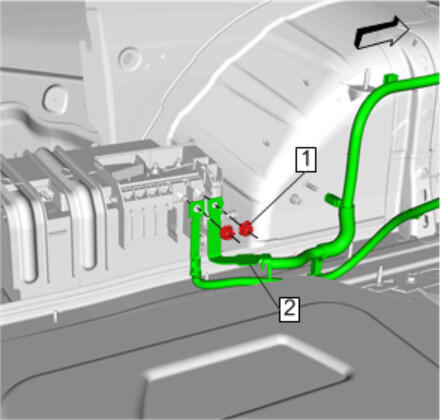

Generator and Battery Cable (2) - Install
- Generator and Battery Cable Nut - Rear (1) - Install and tighten[2x]12 N.m (106 lb in)

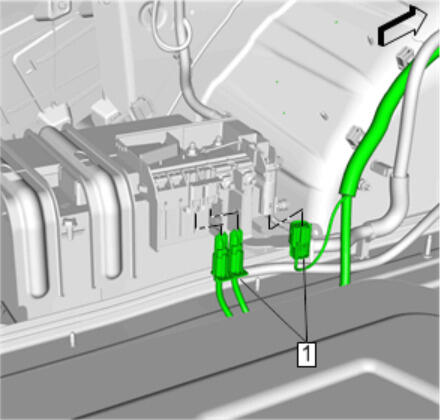

Connect all electrical connectors.(1)

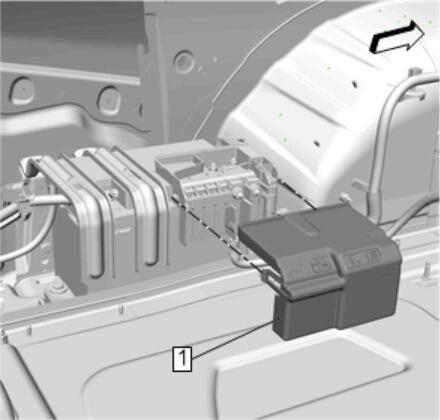

Rear Body Fuse Block Cover(1) - Install
- Battery Negative Cable Disconnection and Connection (Without KL9) , or Battery Negative Cable Disconnection and Connection (With KL9) - Connect
CAUTION:
Refer to Fastener Caution .
