Installation Procedure
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

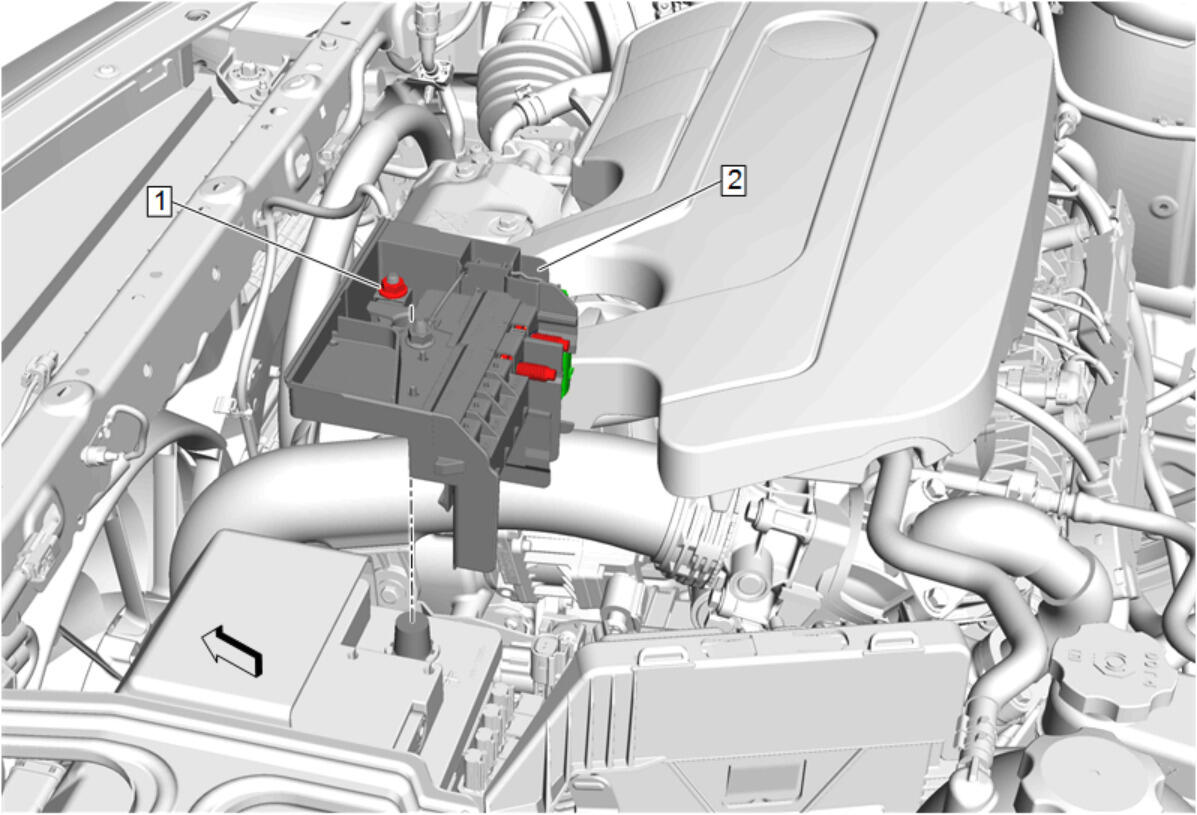

Battery Distribution Engine Compartment Fuse Block(1) - Install
- CAUTION:
Refer to Fastener Caution
Battery Positive Post Clamp Nut(2) - Tighten9N.m (80 lb in)
- Electrical Connector(1) - Connect[3x]
Electrical Connector(1) - Connect
- Auxiliary Battery Positive Cable(5) - Install
- Battery Positive Cable Nut(4)@Battery Distribution Engine Compartment Fuse Block - Install and tighten16N.m (12 lb ft)
- Battery Positive Cable(2) - Install
- Battery Positive Cable Nut(3)@Battery Distribution Engine Compartment Fuse Block - Install and tighten16N.m (12 lb ft)
Front Compartment Fuse Block Cover(1) - Install
- Retaining Tab(2) - Engage[2x]
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (Without KL9) , or Battery Negative Cable Disconnection and Connection (With KL9)
