Section 61 (Data Communication System - Schematic Wiring Diagrams)
>>
Schematic Wiring Diagrams
>>
Data Communication System Wiring Schematics
>>

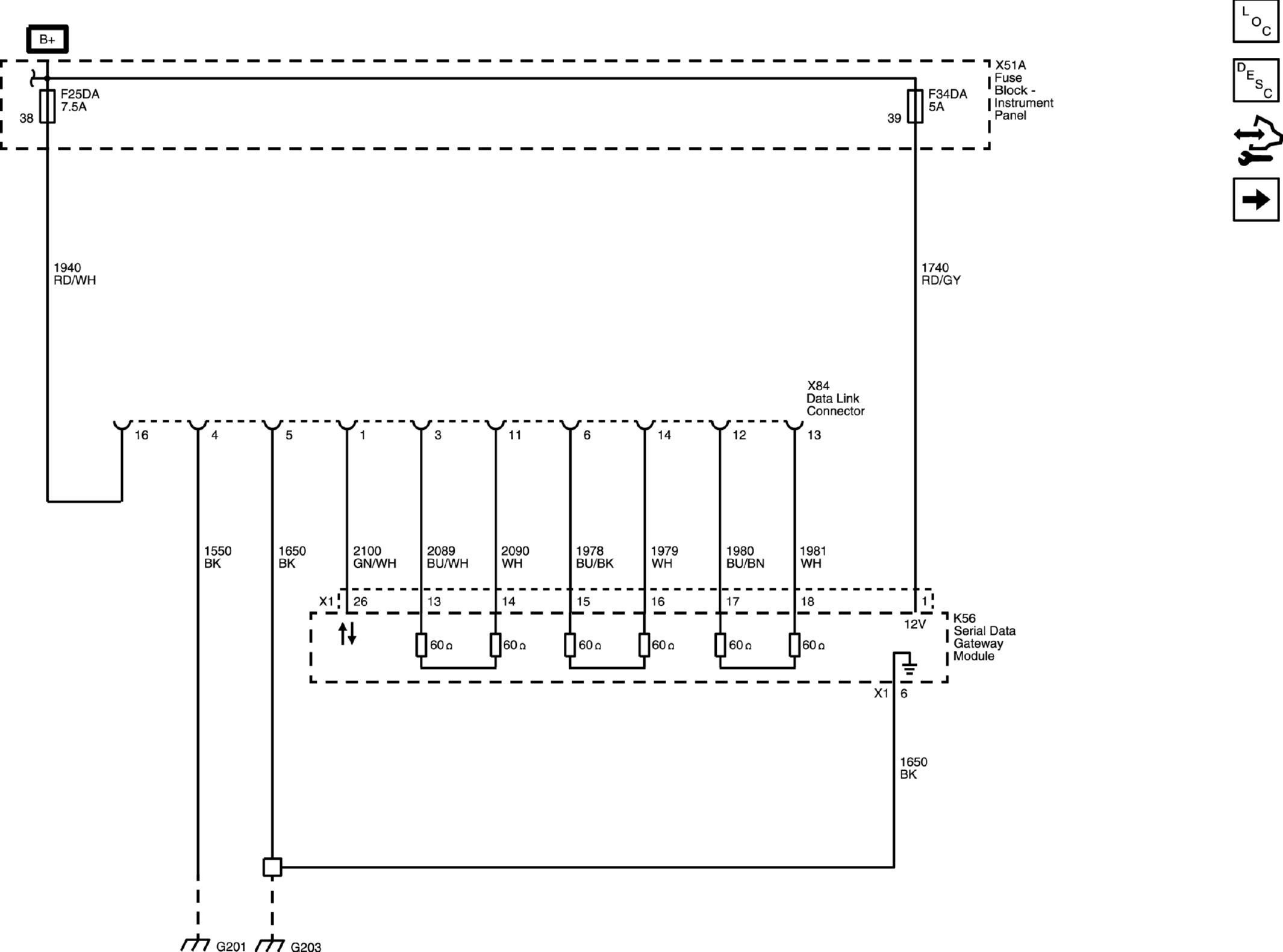

Serial Data Gateway Module and Data Link Connector Power and Ground

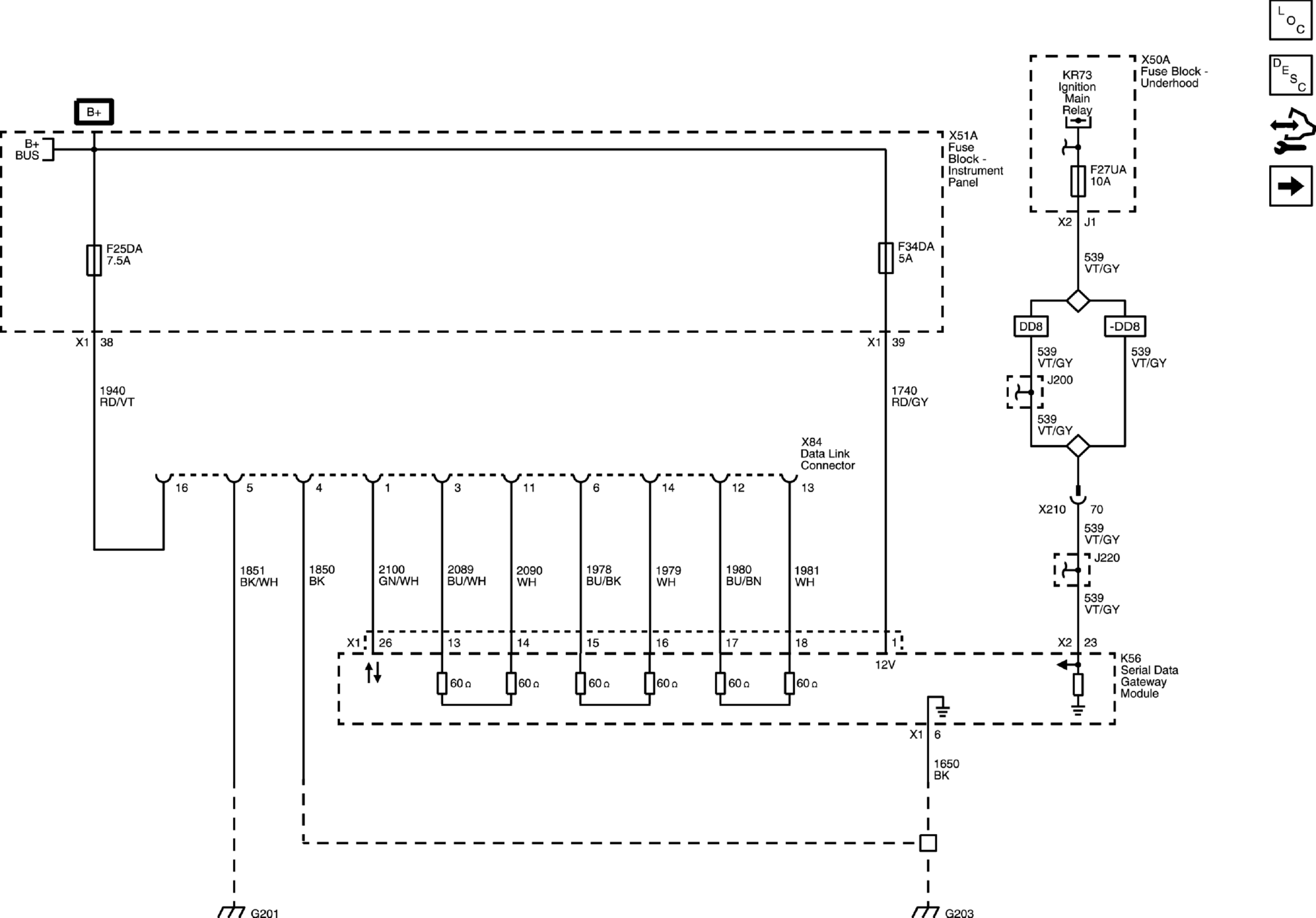

Serial Data Gateway Module and Data Link Connector Power and Ground
WARNING:
This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
