Low Frequency Rear Compartment Antenna Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Rear Compartment Floor Panel Trim Replacement (Carpet, Without HP4)Rear Compartment Floor Panel Trim Replacement (5 Bar Cover, Without HP4)Rear Compartment Floor Panel Trim Replacement (Carpet, With HP4)Rear Compartment Floor Panel Trim Replacement (Battery Cover, With HP4)

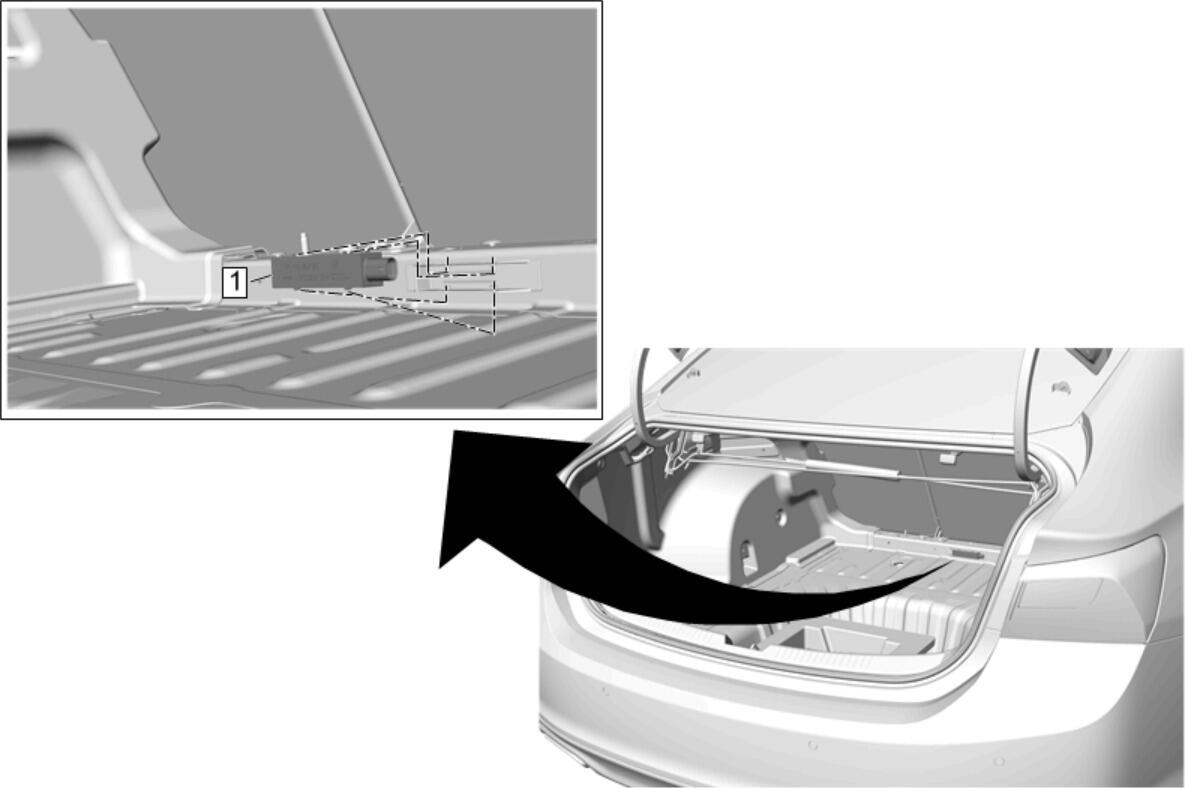

1	Low Frequency Rear Compartment Antenna Procedure Disconnect the electrical connector. Release the retaining tabs.

Callout

Component Name

Preliminary Procedure
Rear Compartment Floor Panel Trim Replacement (Carpet, Without HP4)Rear Compartment Floor Panel Trim Replacement (5 Bar Cover, Without HP4)Rear Compartment Floor Panel Trim Replacement (Carpet, With HP4)Rear Compartment Floor Panel Trim Replacement (Battery Cover, With HP4)

Low Frequency Rear Compartment Antenna

Procedure

Disconnect the electrical connector.
Release the retaining tabs.
