Removal Procedure
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
- Rear Side Door Trim - Remove - Rear Side Door Trim Replacement
- Rear Side Door Outside Handle - Remove - Rear Side Door Outside Handle Replacement
- Rear Side Door Water Deflector - Remove
Remove the screw (1) that retains the rear side door outside bracket to the door. (2)
Pull the rear side door outside handle bracket (3) down to the inside door opening.

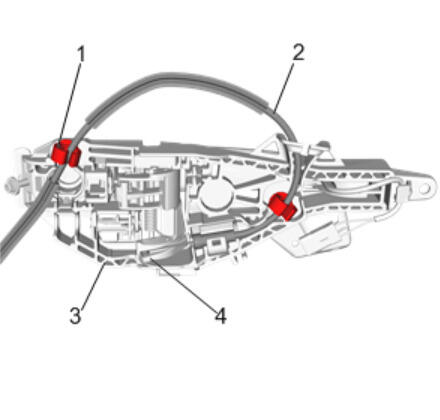

- Remove the cable (2) from the rear side door outside handle bracket retainers (1) and counter balance. (4)
- Rear Side Door Outside Handle Bracket (3) - Remove
